Product Description

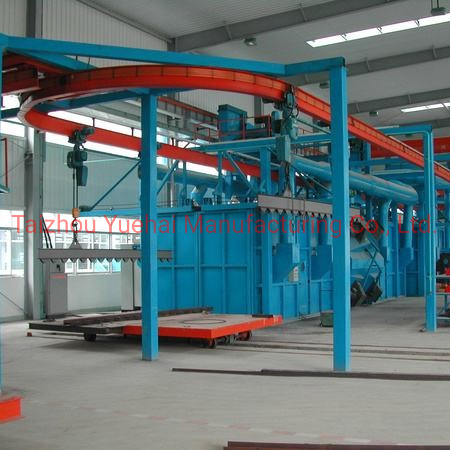

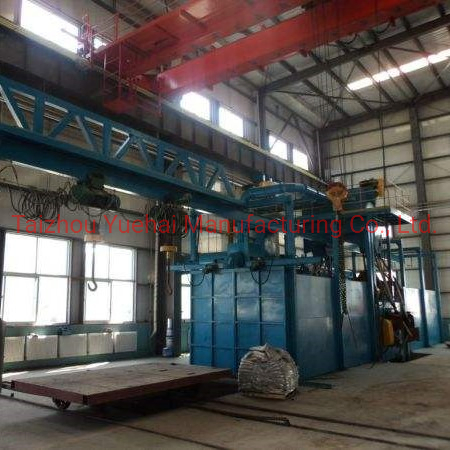

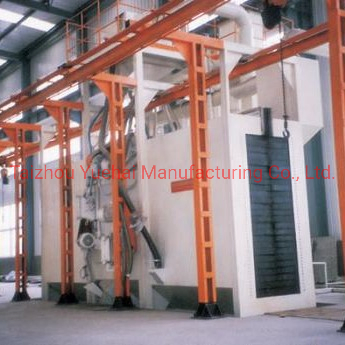

Hook Continuous Shot Blasting Cleaning Machine
1. Application:
It is suitable for the inner and outer wall surface blasting treatment of various gas cylinders, such as water heater, liquefied gas cylinder, acetylene cylinder, oxygen cylinder, fire extinguisher cylinder, so that it can obtain a certain roughness of bright surface, in order to increase the adsorption capacity of coating, ensure the quality of coating, it is the first choice equipment for cylinder manufacturing and cylinder detection.
2. Key Features
High efficiency equipment: Surface cleanliness reaches national standard GB8923-88 Sa2.5.
Advanced technology: functional parts designed for long-term failure-free operation and high opening rates.
Excellent sealing: Meets environmental requirements for purification.
Low Noise: Sound level maintained at 85 db.
Dust Control: Emission standard < 100mg/m3; Workplace concentration < 2mg/m3.
3. Working Principle

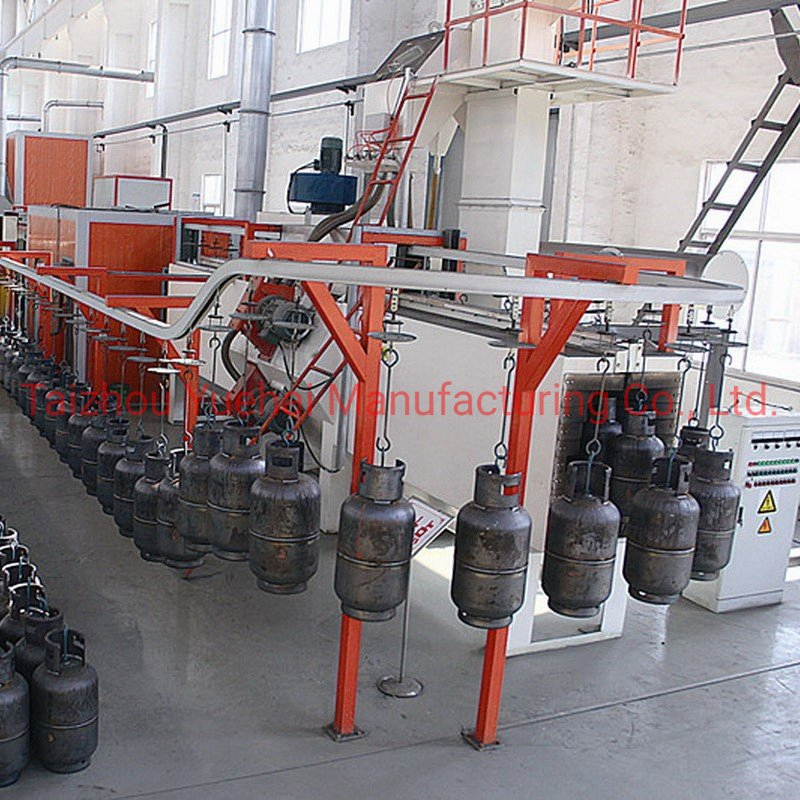

The machine starts after system preparation (dust removal, separator hoist, screw conveyor). The electric hoist carries the workpiece into the clean room. Once positioned, the door closes, the workpiece begins to rotate, and the shot blasting machine activates. After the cleaning cycle, the shot blasting and dust removal systems shut down, the door opens, and the workpiece is unloaded. The process repeats automatically.
4. Main Technical Data
| Workpiece Size | Φ220-420 |
| Max Weight per hook | 30-100 kg |
| Polishing capacity | 4*250kg/min |
| Shoting Power | 4*18.5 KW |
| Total Power without dusting | 67.38 KW |
| Total ventilation volume | 8500 m3/h |
| Dimension | 7450*4100*5906mm |

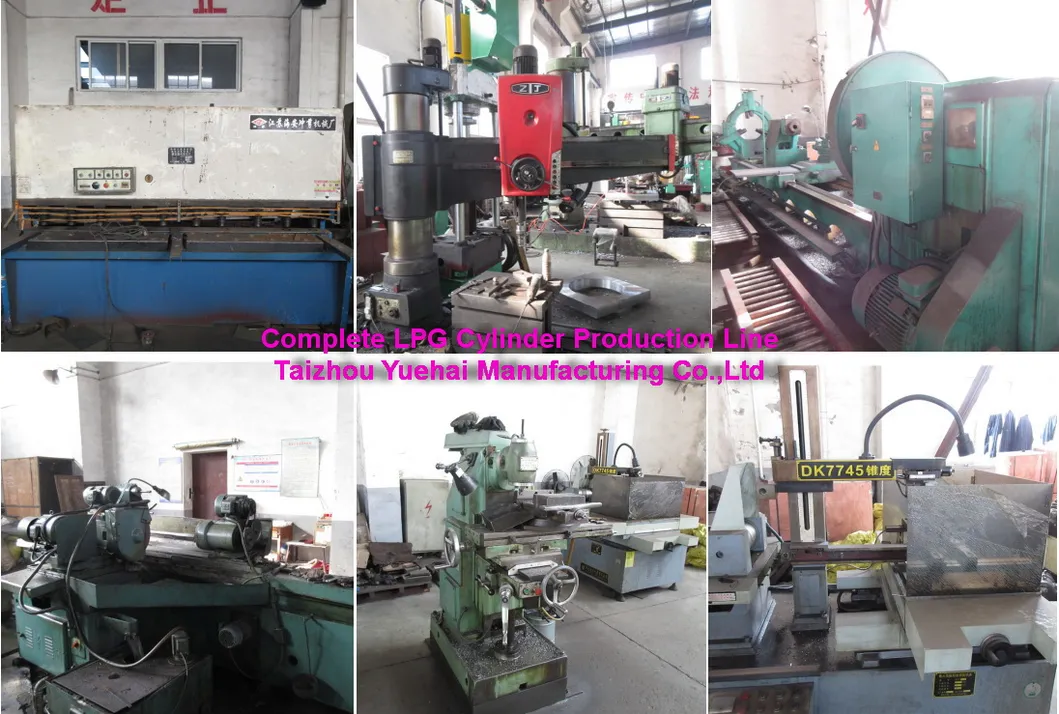

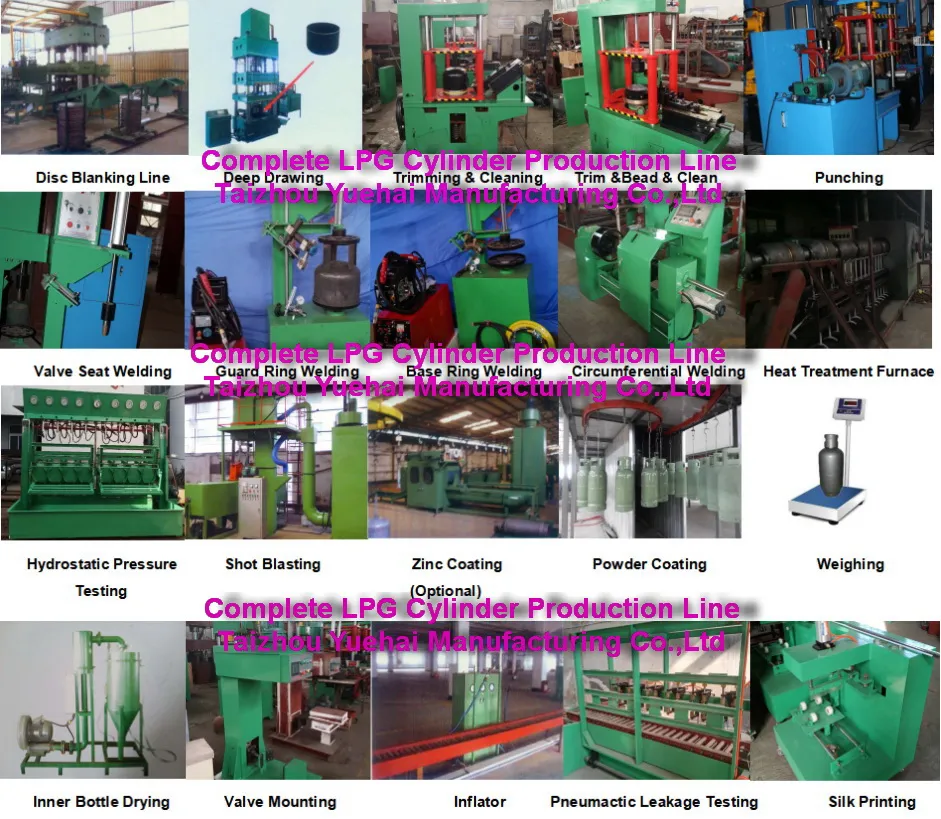

5. Production Flow & Facilities
6. Certificates and Global Presence
7. Advantages & Capabilities
Manufacturer of complete LPG cylinder production lines.
Detailed pre-sales consultation and factory visits.
Reasonable configuration and economical cost.
On-site installation and trial production support.
Fast after-sales technical support and spare parts delivery.
Customizable machine colors and logos.

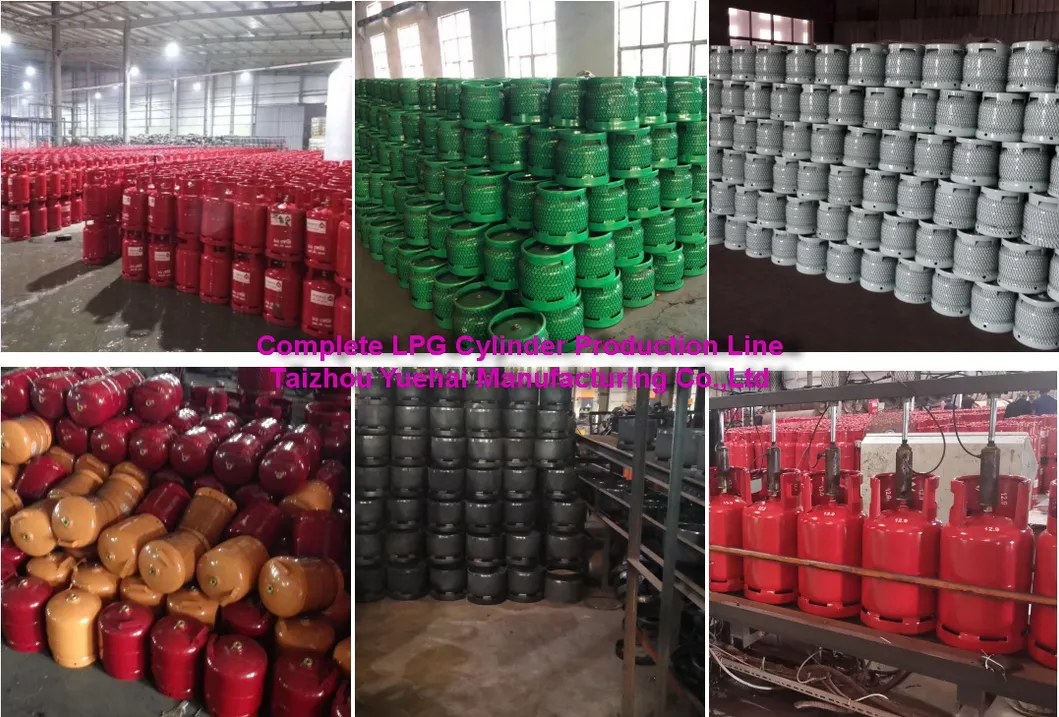

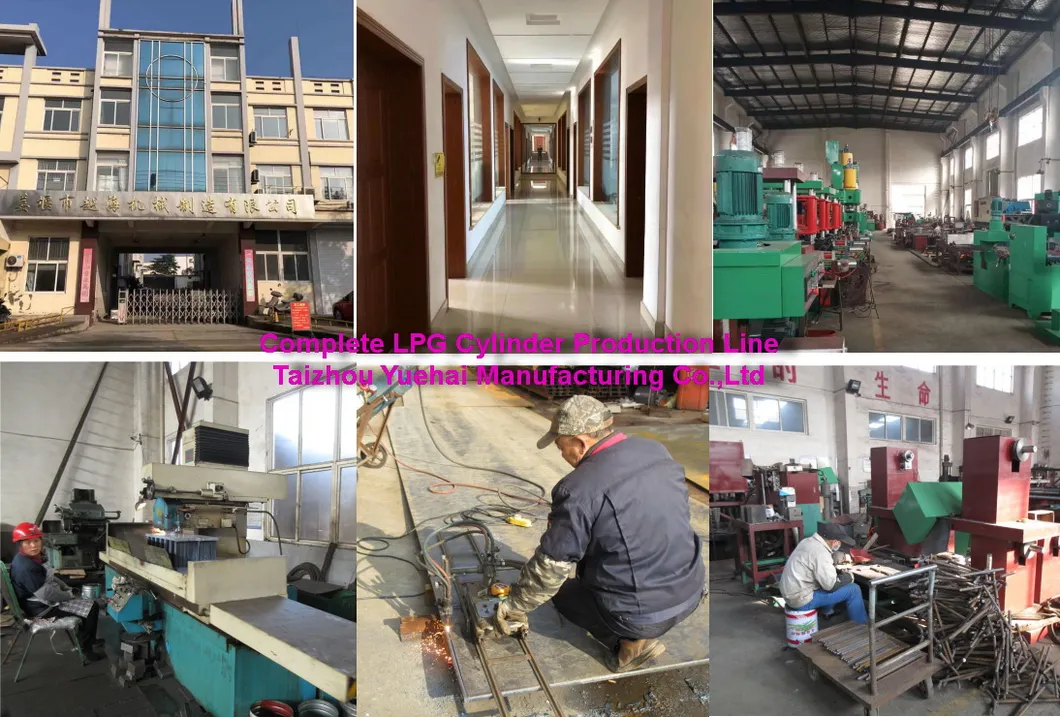

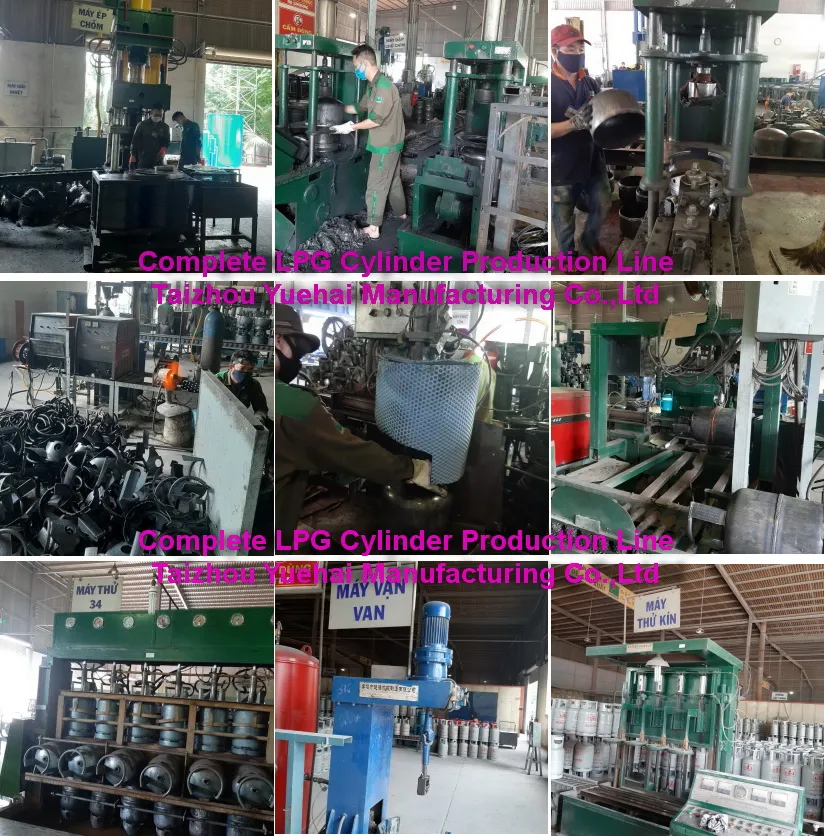

8. Workshop & Final Products
9. Quotation Requirements
To provide an accurate quotation, please provide:
Technical drawings of the cylinders for manufacturing process configuration.
Information on current workshop machinery to determine if a complete line is needed.
Planned production capacity (e.g., units per 8.5-hour shift).
Frequently Asked Questions
Q1: Which types of cylinders are compatible with this blasting machine?
A: The machine is designed for various gas cylinders, including water heaters, LPG cylinders, acetylene, oxygen, and fire extinguisher cylinders.
Q2: What level of surface cleanliness can be achieved?
A: It achieves a high-quality finish meeting the national GB8923-88 Sa2.5 standard, ensuring optimal roughness for coating adhesion.
Q3: How does the machine perform regarding environmental and noise standards?
A: The machine operates at noise levels under 85 db and includes a high-efficiency dust removal system with emissions controlled below 100mg/m3.
Q4: Is the operation fully automatic?
A: Yes, it features a programmed cycle involving automatic door operation, workpiece rotation, and synchronized shot blasting and dust removal.
Q5: Do you provide support for installation and training?
A: Yes, we offer comprehensive on-site installation, machine demonstration, operator training, and trial production assistance.
Q6: Can the machine configuration be customized for specific capacities?
A: Absolutely. We customize the quotation and machine configuration based on your technical drawings and required production output per shift.
