Blatrixo Machine
Blatrixo Machine

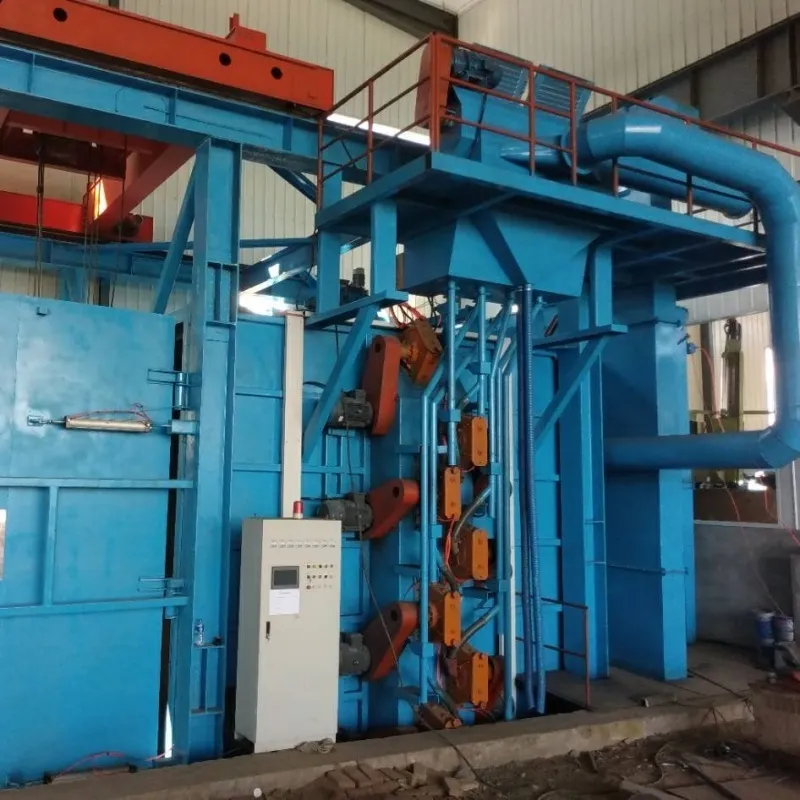

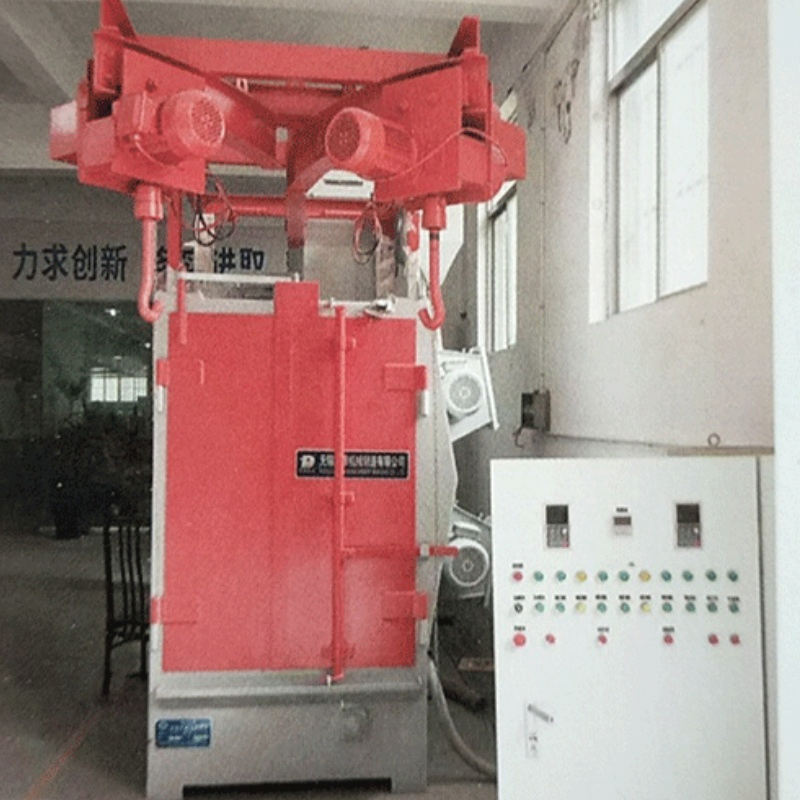

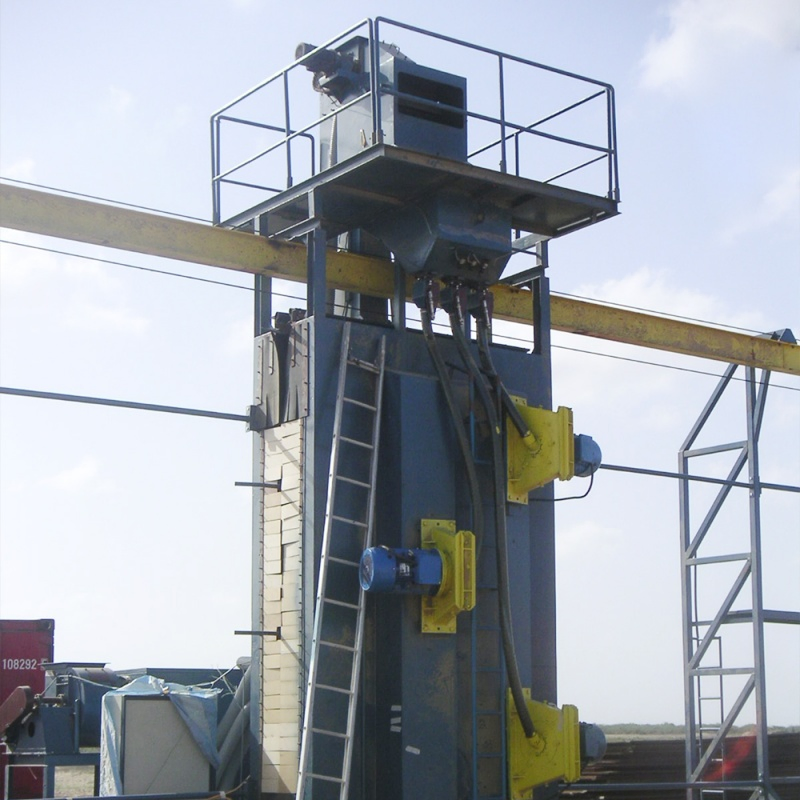

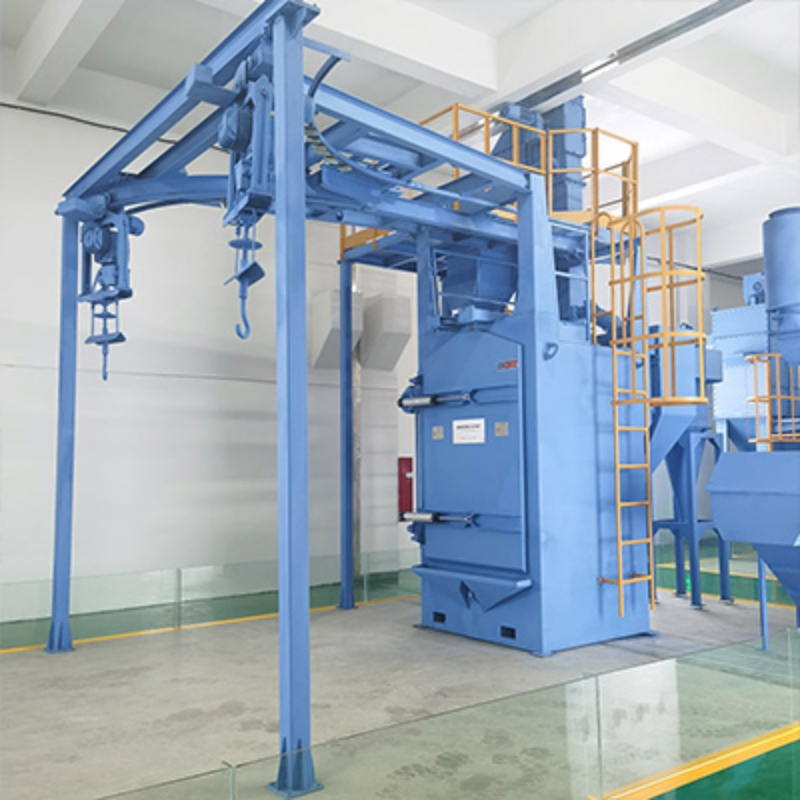

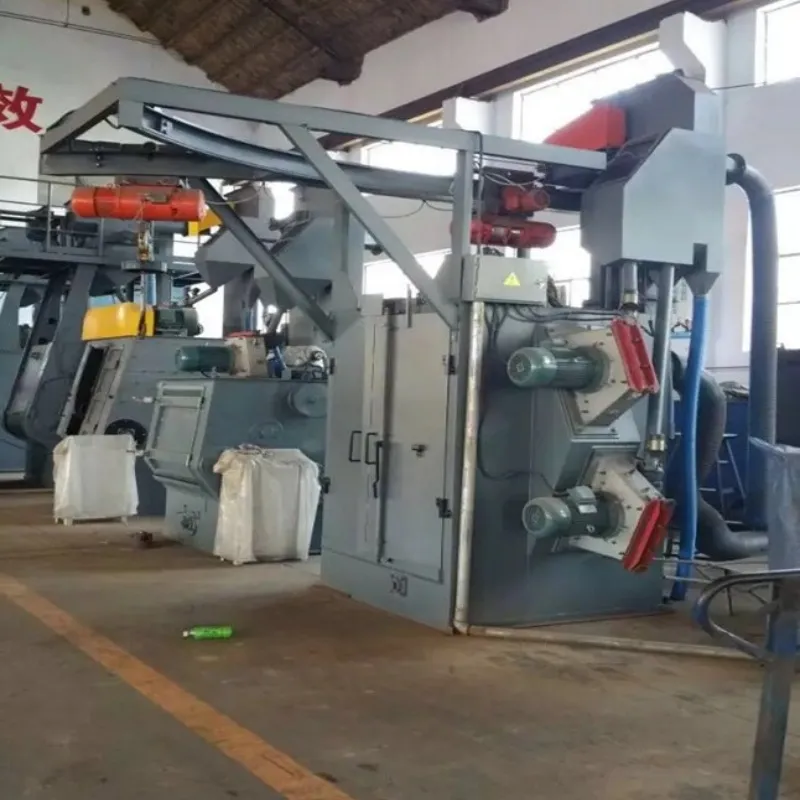

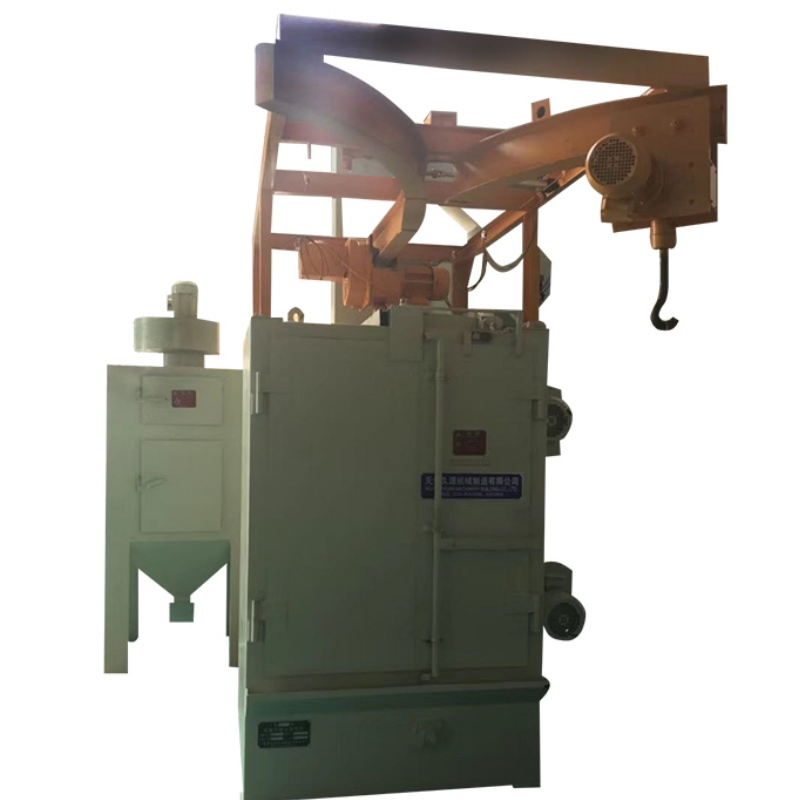

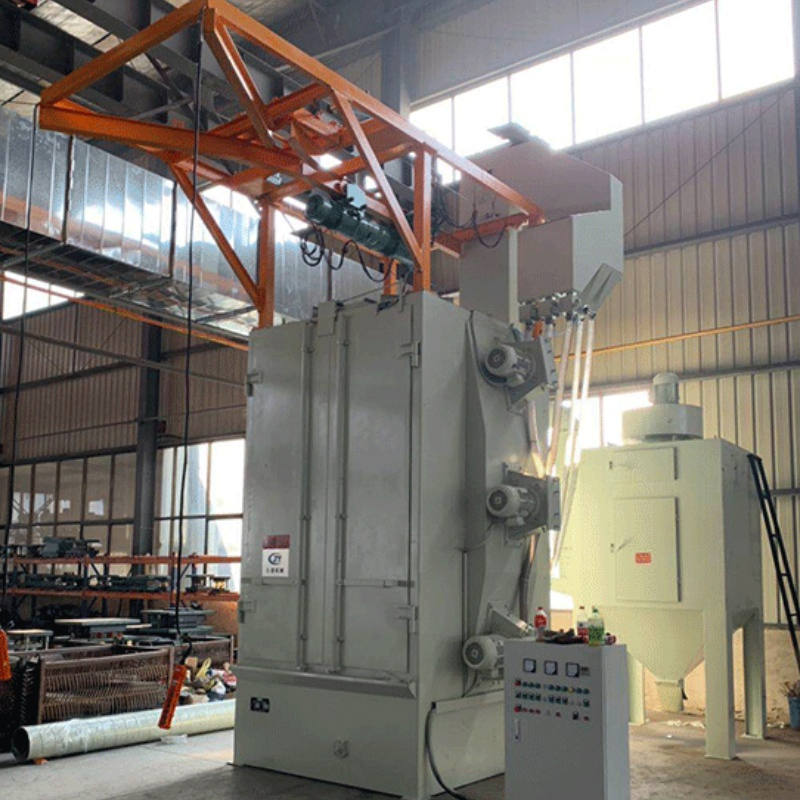

As a standard model of shot blasting cleaning machines, the hook-type shot blasting machine has a working cylinder diameter ranging from 900 to 1300 mm and a height ranging from 1300 to 2200 mm. The standard model is equipped with 2-7 blasting heads and has a maximum load capacity of up to 10,000 kilograms.
This equipment features high production efficiency and a large range of flexibility. Simply load the workpieces, press the start button, and the entire cleaning process is completed in a short time (usually 5-7 minutes), removing all dust and residual shot materials.
| Item | Unit | Q376 | Q376B | Q378C | Q3710 | Q3720 | Q3730 | Q3750 | Q37100 |
|---|---|---|---|---|---|---|---|---|---|
| Max Cleaning Weight | Kg | 500 | 600 | 800 | 1000 | 2000 | 3000 | 5000 | 10000 |
| Shot Blasting Capacity | Kg/min | 2*200 | 2*200 | 2*250 | 2*250 | 3*250 | 3*250 | 4*250 | 5*250 |
| Ventilation Rate | m³/h | 5000 | 5000 | 5000 | 5000 | 9000 | 11000 | 14000 | 16000 |
| Hoist Lifting Capacity | T/H | 24 | 24 | 30 | 30 | 45 | 45 | 60 | 75 |
| Max Dimension of Hanger | mm | ∅600*1200 | ∅700*1200 | ∅1000*1600 | ∅1200*1800 | ∅1400*2200 | ∅1600*2300 | ∅1800*2500 | ∅3000*3000 |

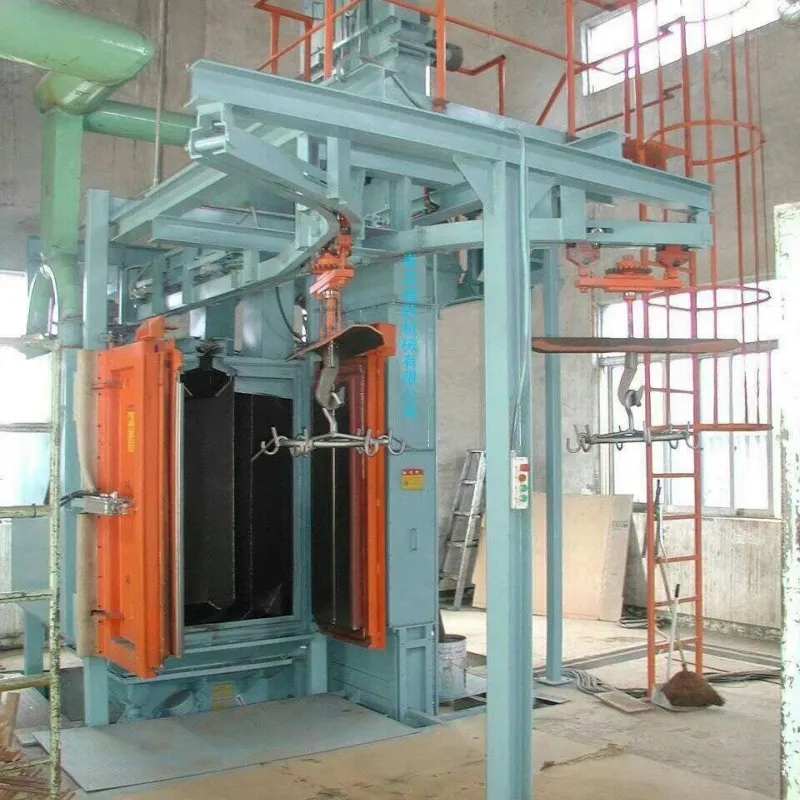

Mainly applicable to the surface treatment of various medium and large castings, forgings, weldments, and heat-treated parts. It is particularly suitable for surface cleaning and shot blasting strengthening of castings, forgings, and steel structural parts with multiple varieties and small batches. It is also ideal for cleaning slender and thin-walled parts that are not suitable for collision.

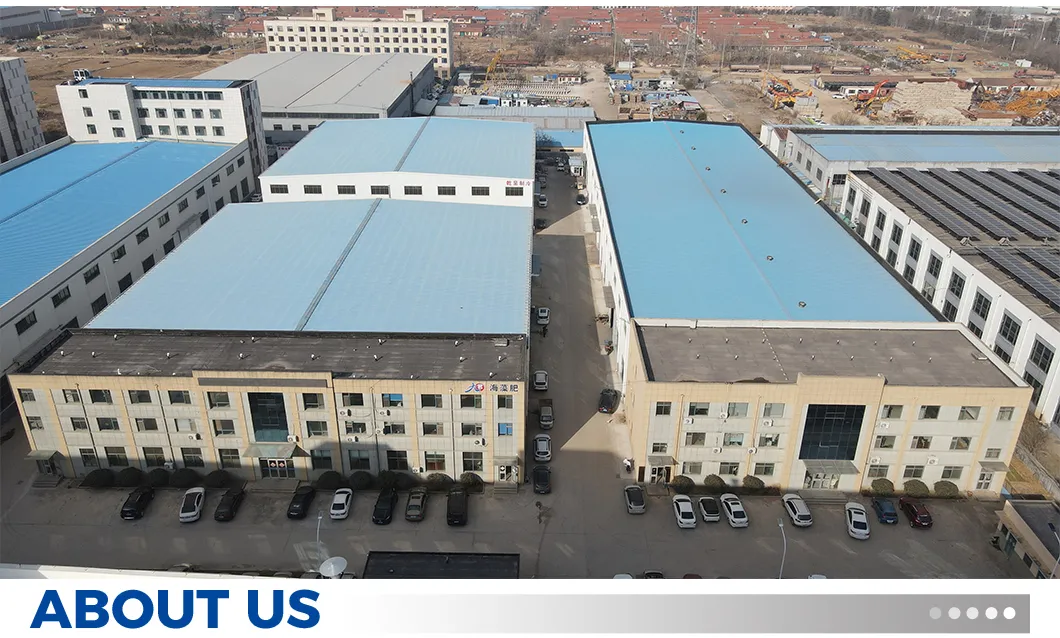

We are a leading manufacturer specializing in automated shot blasting machines and surface treatment equipment. With over 20 years of experience, we provide complete solutions for surface cleaning, rust removal, and coating preparation. Our operations are certified under ISO 9001:2015 and comply with EU Machinery Directive 2006/42/EC (CE Certification).
