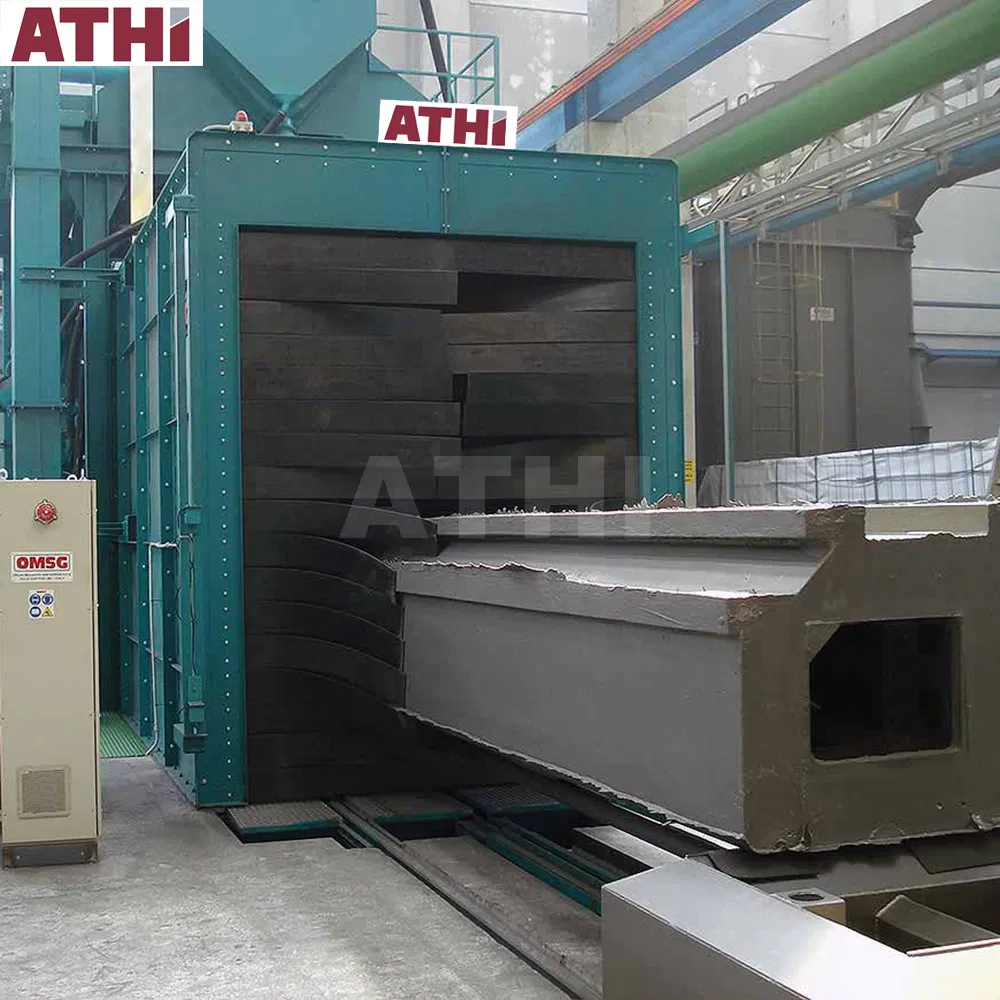

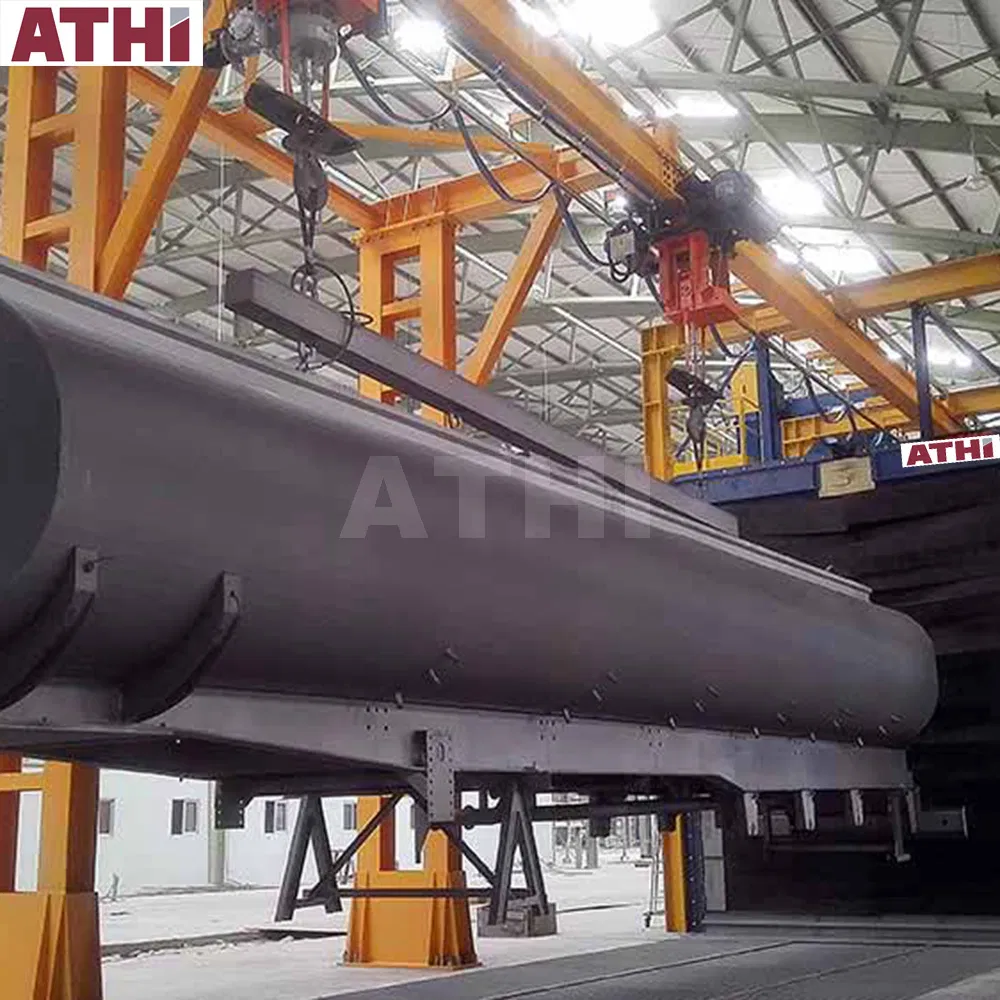

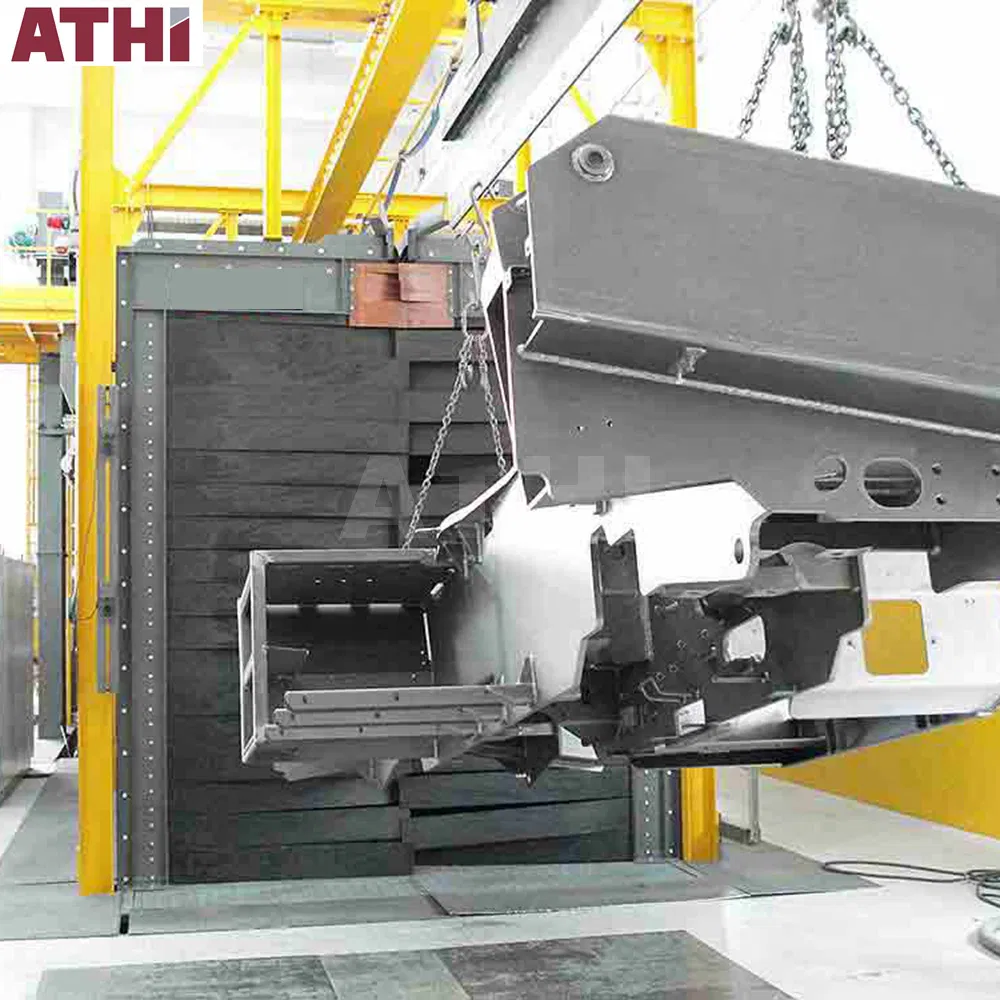

Metal Welded Part Automatic Shot Blasting Machine and Painting Booth Line
Metal Welded Part Automatic Shot Blasting Machine and Painting Booth Line
Metal Welded Part Automatic Shot Blasting Machine and Painting Booth Line
Metal Welded Part Automatic Shot Blasting Machine and Painting Booth Line
Metal Welded Part Automatic Shot Blasting Machine and Painting Booth Line
1 / 5
Metal Welded Part Automatic Shot Blasting Machine and Painting Booth Line
Metal Welded Part Automatic Shot Blasting Machine and Painting Booth Line
Metal Welded Part Automatic Shot Blasting Machine and Painting Booth Line
Metal Welded Part Automatic Shot Blasting Machine and Painting Booth Line
Metal Welded Part Automatic Shot Blasting Machine and Painting Booth Line

Metal Welded Part Automatic Shot Blasting Machine and Painting Booth Line

Customization: Available
After-sales Service: Complete
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications

Model NO.
QAT37
Type
Shot Blasting and Spray Paint Equipment
Coating
Painting
Substrate
Metal
Certification
CE, BV/TUV/ISO9001:2015
Condition
New
Transport
Standard Containers
Specification
Customized
Origin
China
HS Code
8424899990
Capacity
200 sets/Year

Product Description

Automatic shot blasting machine and painting booth line for metal welded parts casings silos

The major components of the shot blasting equipment and painting line mainly include: shot blasting equipment, powder coating system, paint spraying equipment, drying oven, heating source system, electric control system, hanging chain suspension conveyor chain, etc. It is suitable for painting and spraying treatment on the surface of workpieces.

⚙️

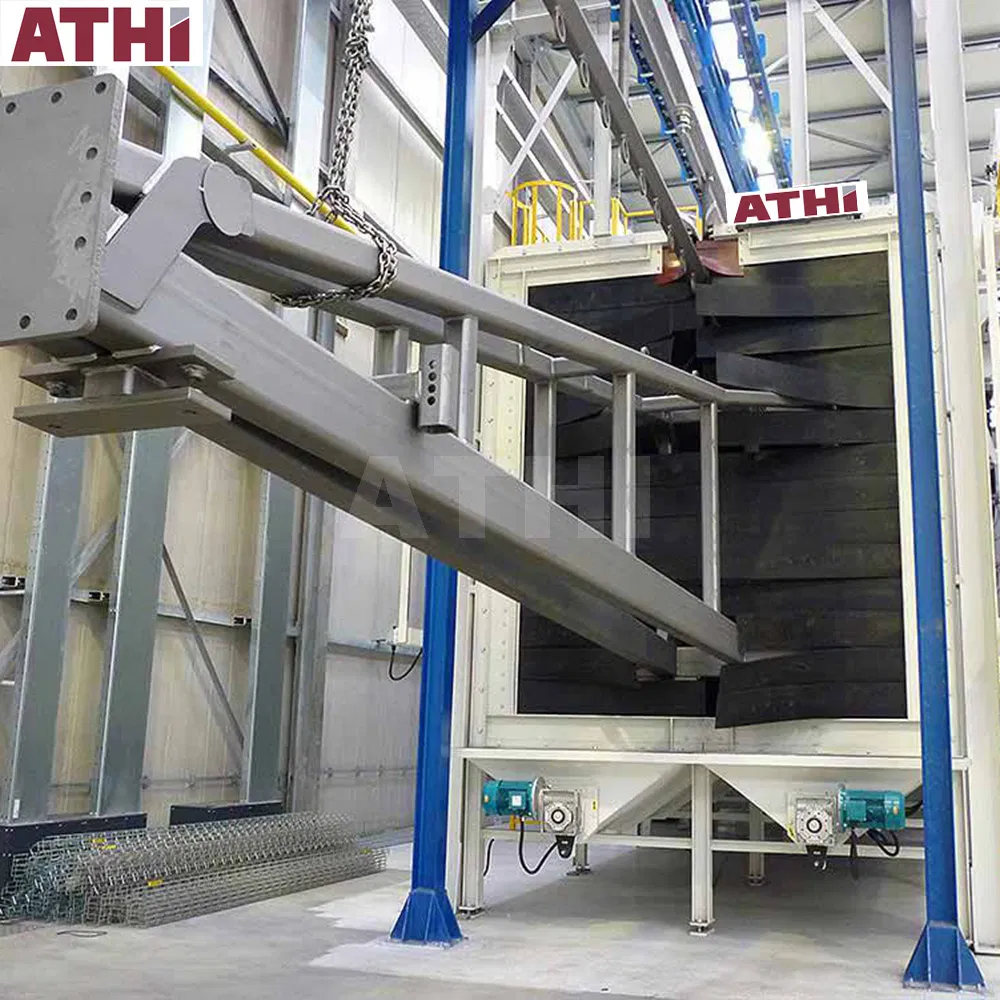

A. Shot Blasting Equipment Our factory specializes in shot blasting equipment widely used in foundry, aircraft, aerospace, locomotive, electrical machinery, and construction machinery industries. We provide custom solutions based on workpiece specifications.
🌀
B. Powder Coating System Features a cyclone + filter cartridge recovery device, ensuring an advanced powder recovery process with faster color changes.
🎨

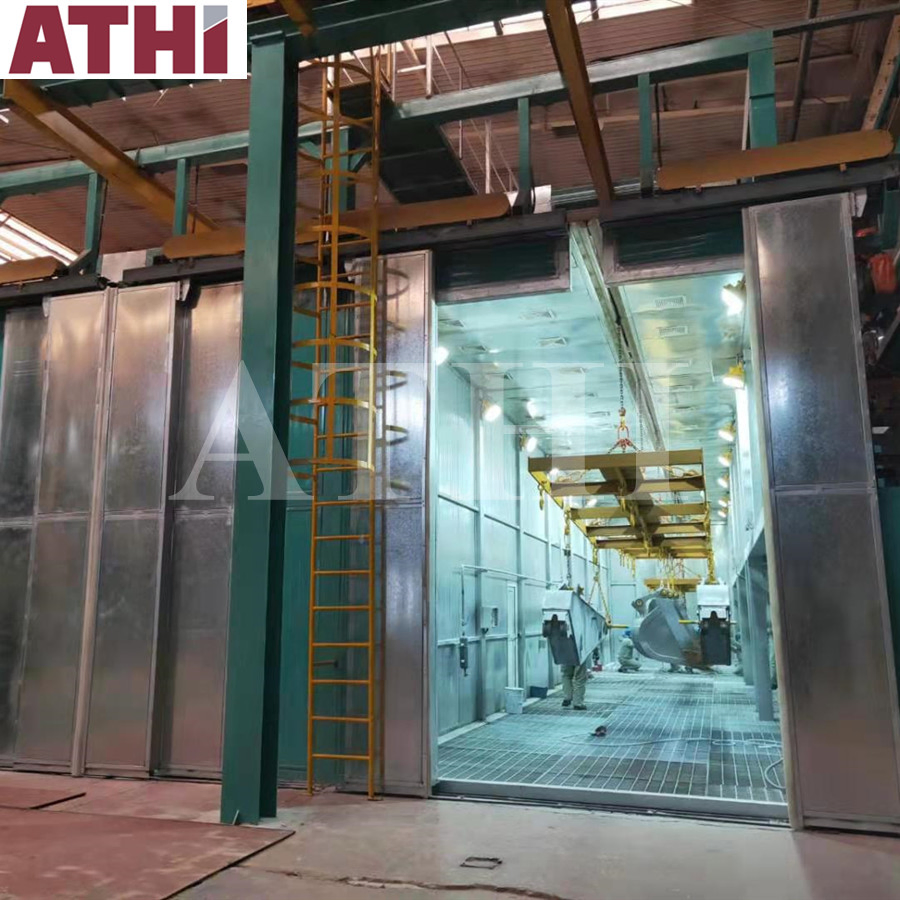

C. Spray Painting Booth Equipment Includes dry spray booths, environmentally friendly booths, telescopic mobile booths, and water curtain systems for high-quality surface finishing.
🔥
D. Drying Oven Ensures temperature uniformity for coating quality. Heating methods include radiation and hot air circulation in straight-through or bridge type configurations.
🌡️
E. Heating Source System Flexible heat sources available: electricity, steam, gas, or oil, depending on user requirements and local energy availability.
💻
F. Electronic Control System Features centralized and single-row control systems to manage the entire painting and powder coating assembly line efficiently.
⛓️
G. Hanging Chain Suspension Conveyor Automatic conveying systems including accumulation, release, and ordinary hanging conveyors for seamless industrial production.

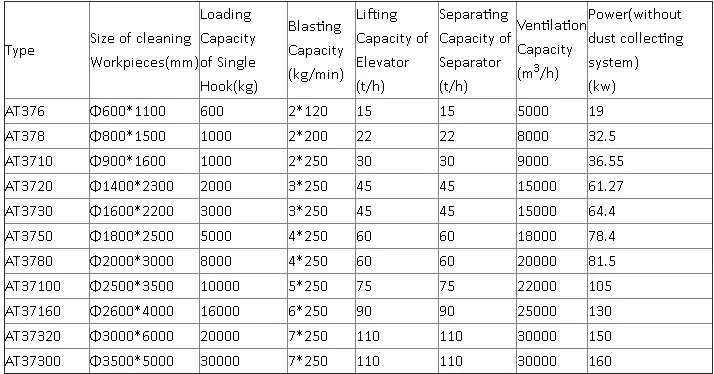

Technical Specifications

Technical Specifications

Detailed Photos

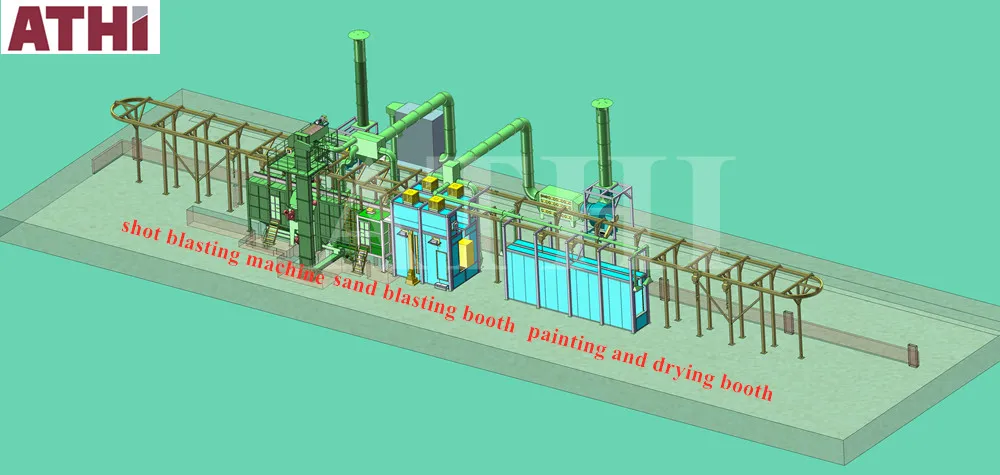

Product Detail 1

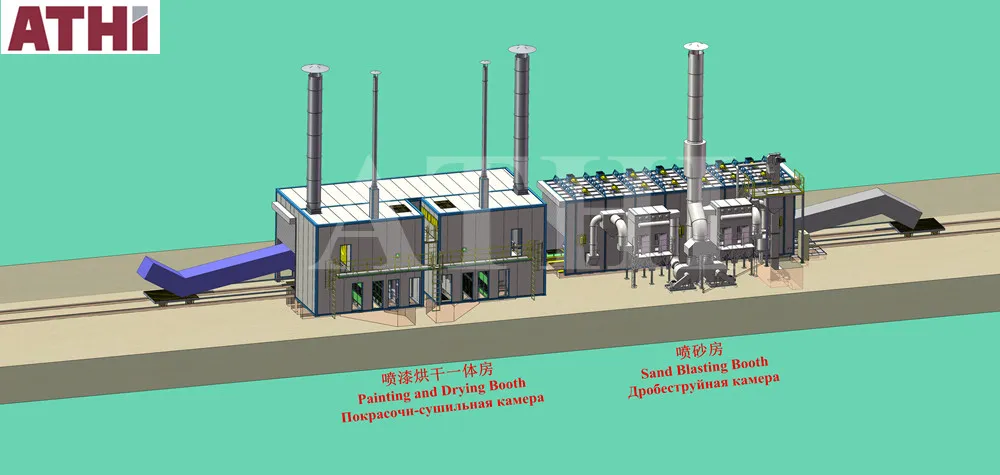

Product Detail 2

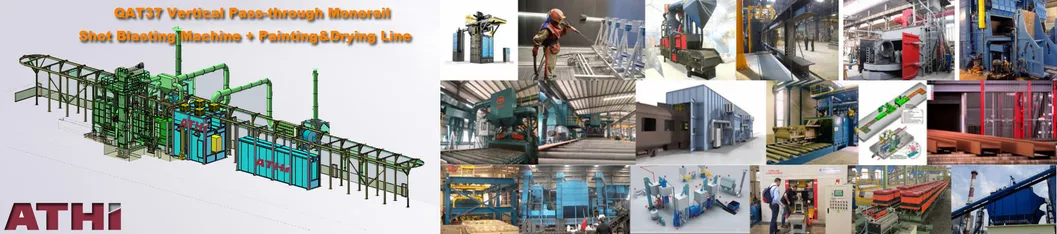

Product Detail 3

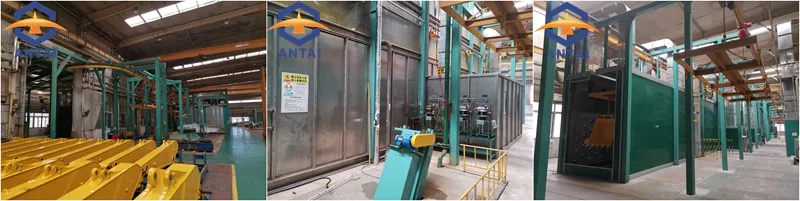

Product Detail 4

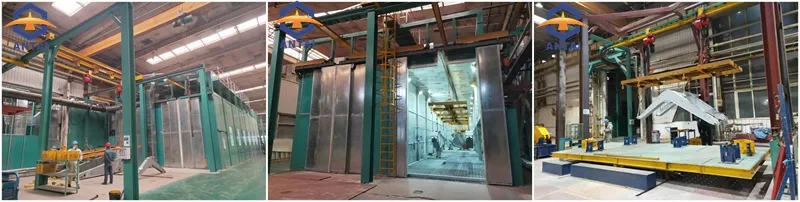

Product Detail 5

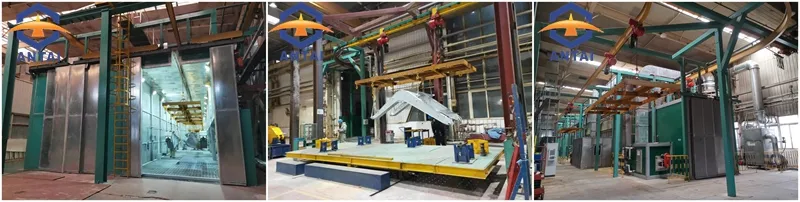

Product Detail 6

Frequently Asked Questions

1. What materials are suitable for this equipment? This shot blasting and painting line is primarily designed for metal welded parts, including casings, silos, and other large industrial metal substrates.
2. Can the dimensions of the drying oven be customized? Yes, the entire line, including the drying oven, is customized based on the production program and the specific dimensions of the customer's workpieces.
3. What heating options are available for the painting line? Users can select from electricity, steam, gas, or oil as the heat source for the hot air circulation system in the drying and curing stages.
4. How does the powder recovery system work? The system utilizes a cyclone and filter cartridge recovery device, which allows for efficient powder collection and faster color changes compared to traditional methods.
5. Is the equipment compliant with international standards? Yes, the equipment is certified under CE, BV, TUV, and ISO9001:2015, ensuring high quality and safety standards for global markets.
6. What type of conveyor systems can be integrated? We offer various suspension conveyor systems, including automatic electric hoists, accumulation and release systems, and standard hanging chain conveyors.
