Blatrixo Machine
Blatrixo Machine

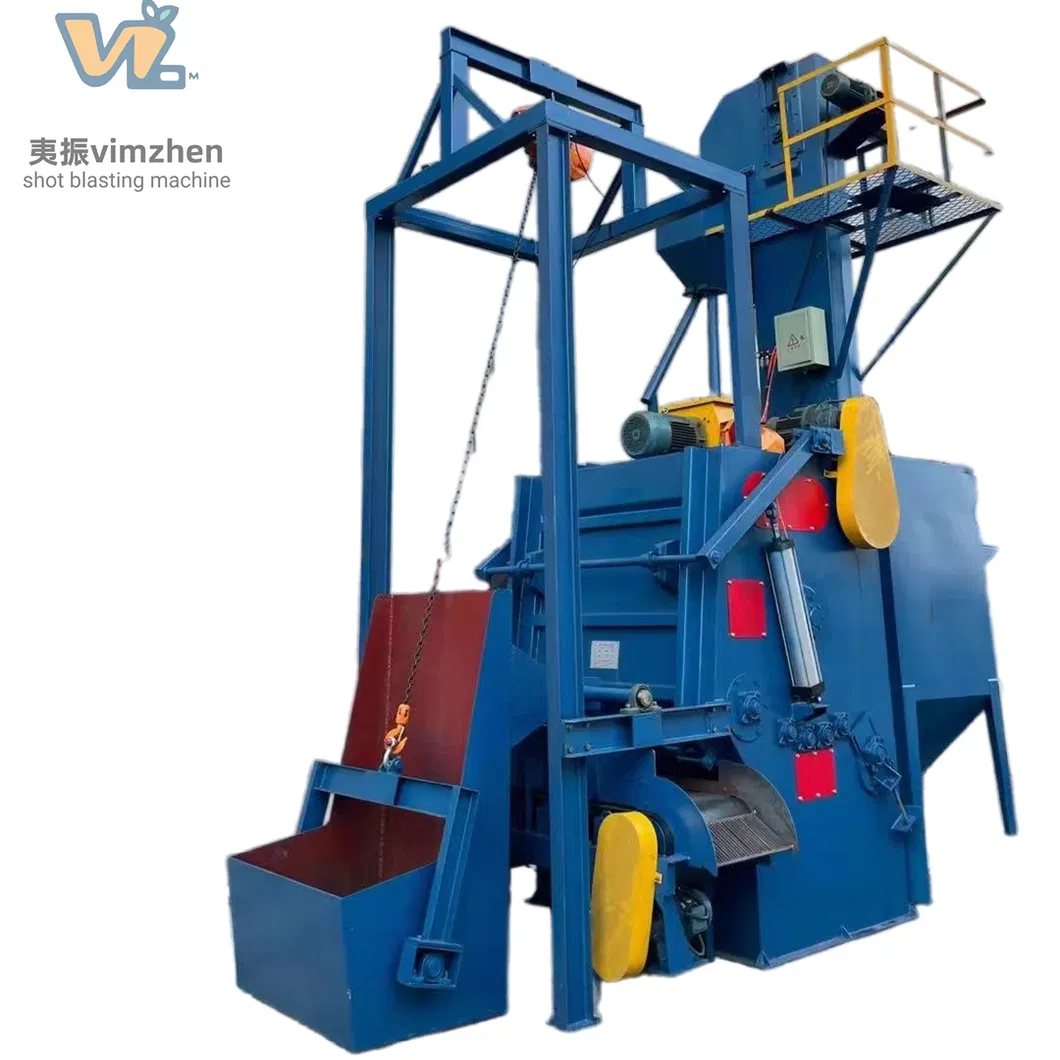

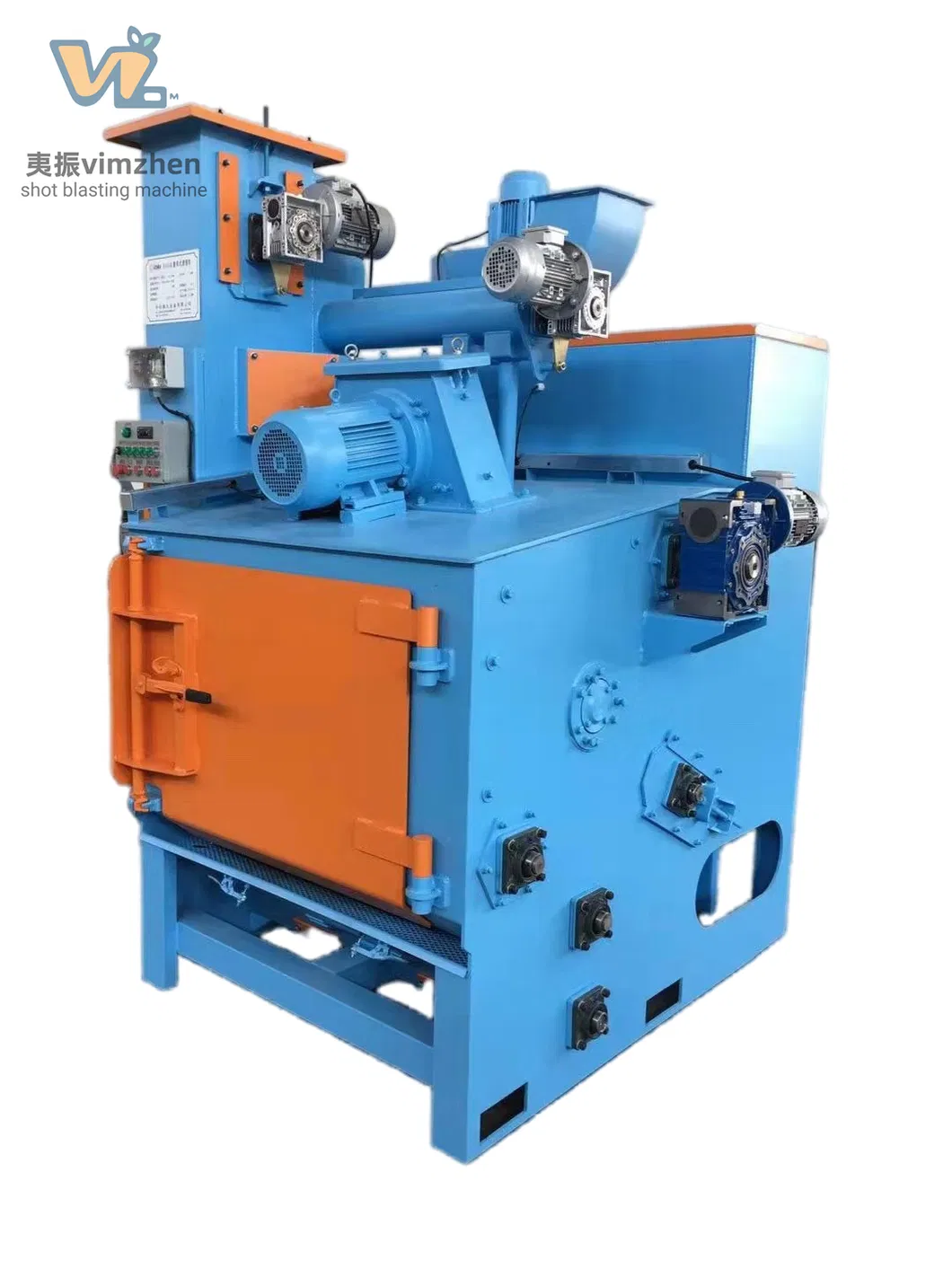

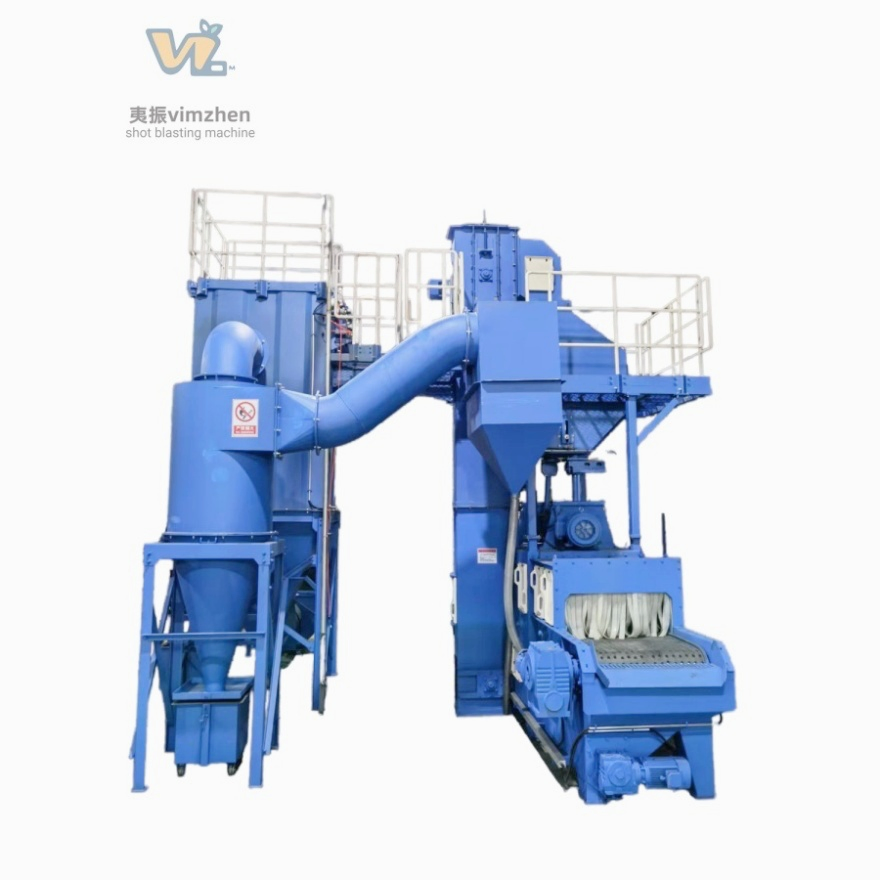

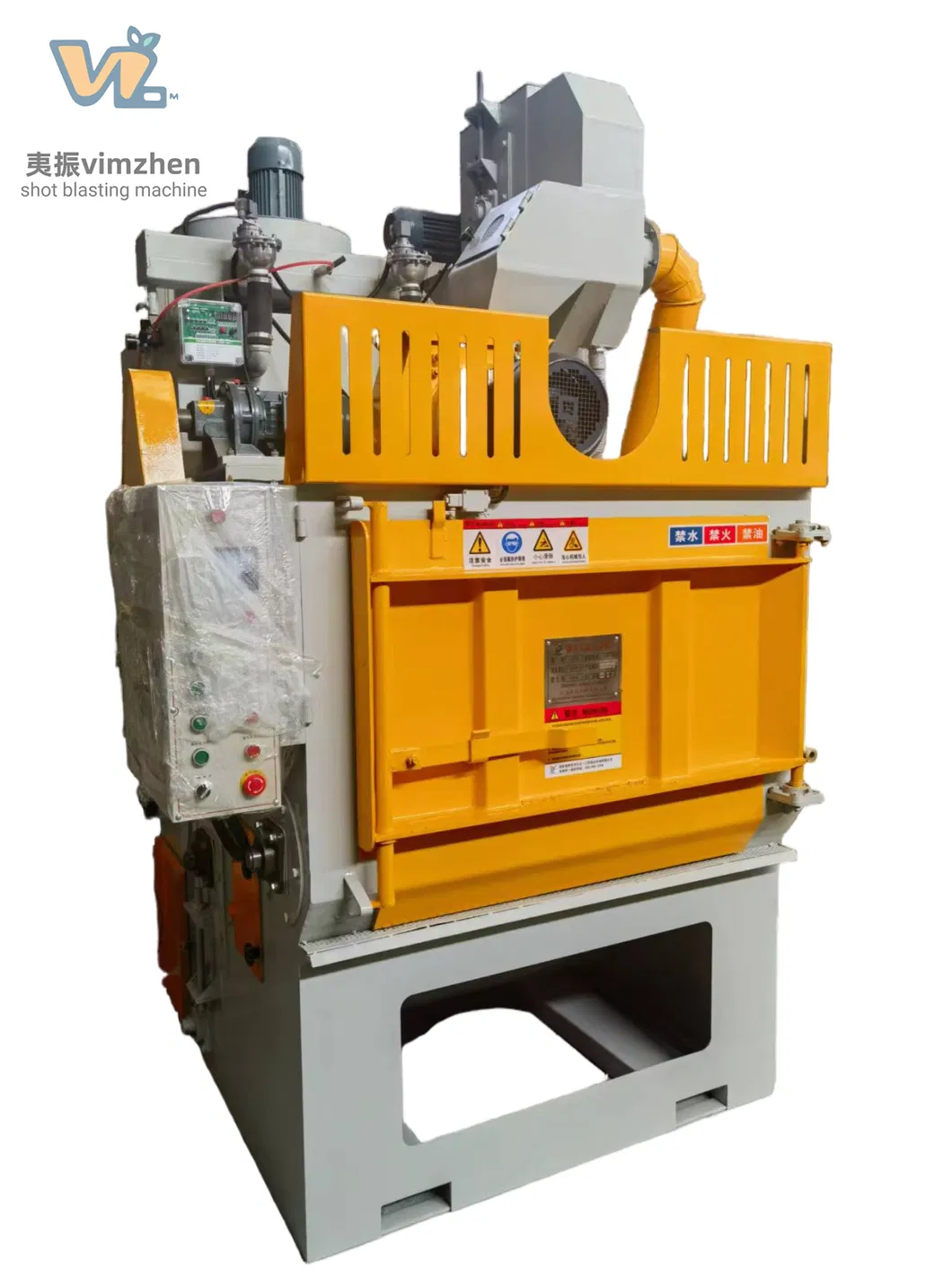

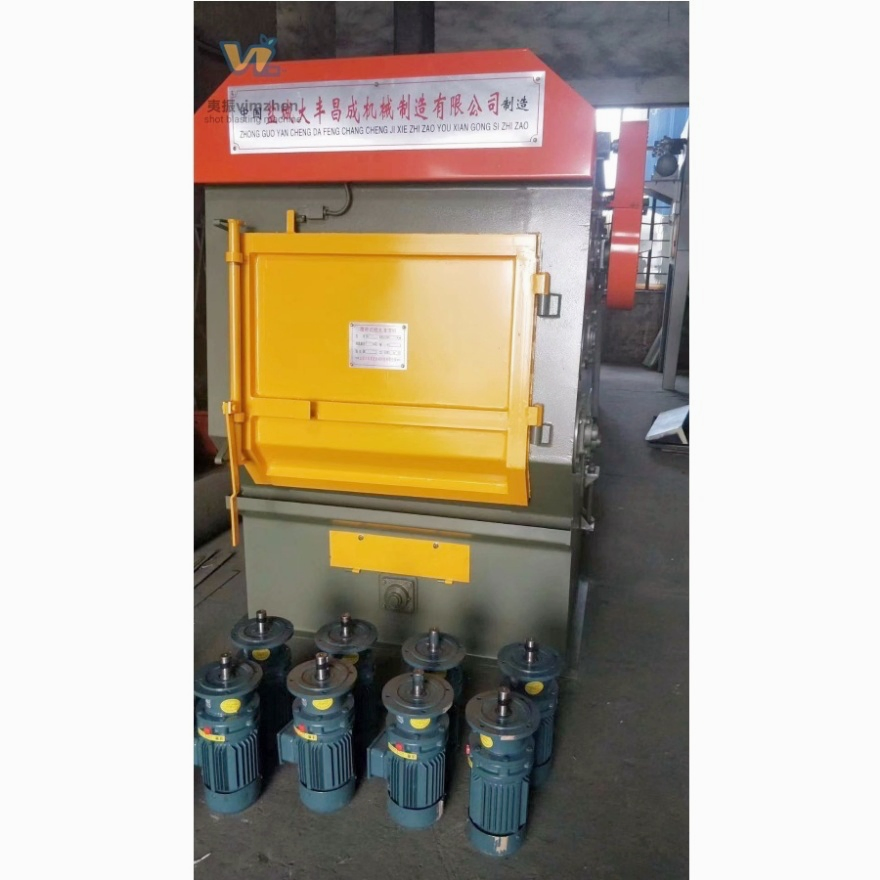

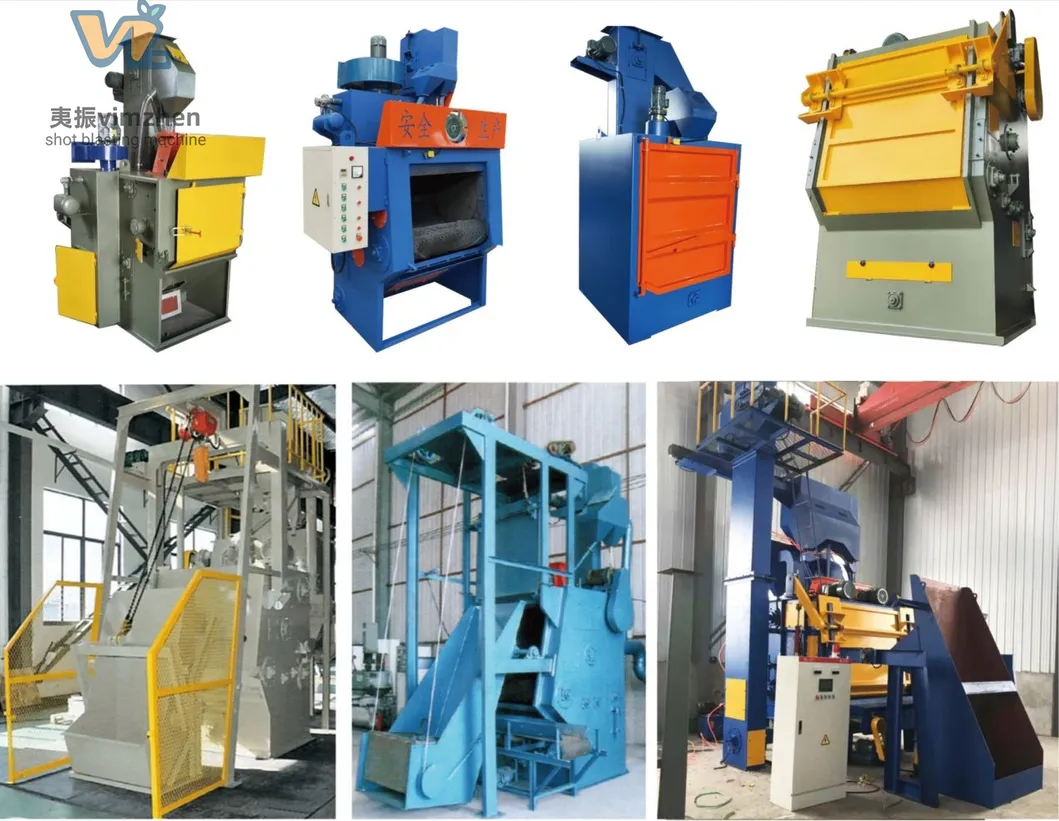

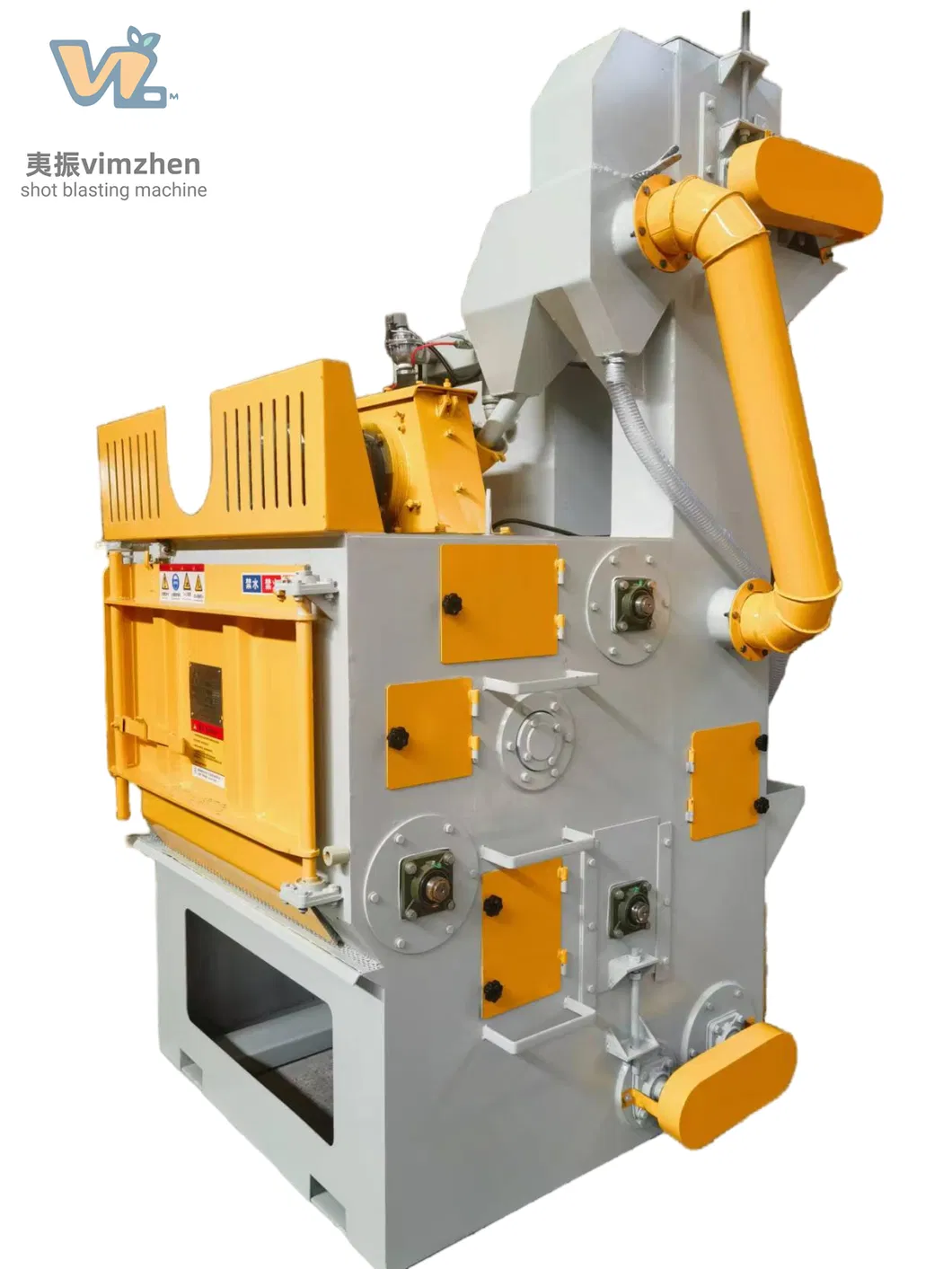

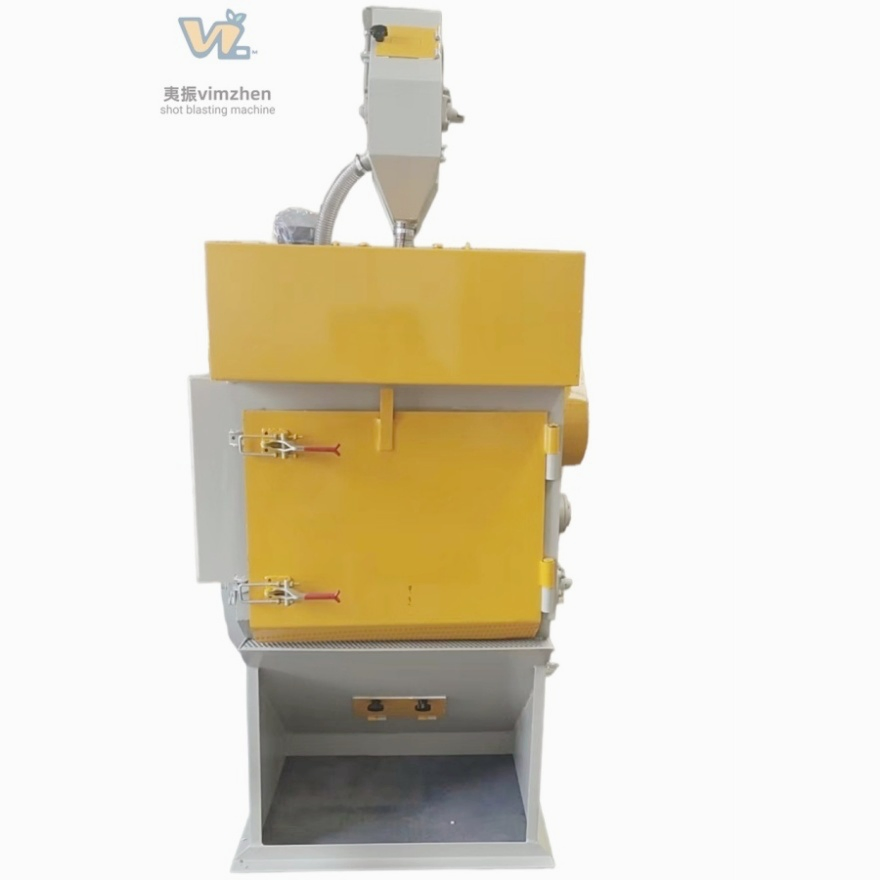

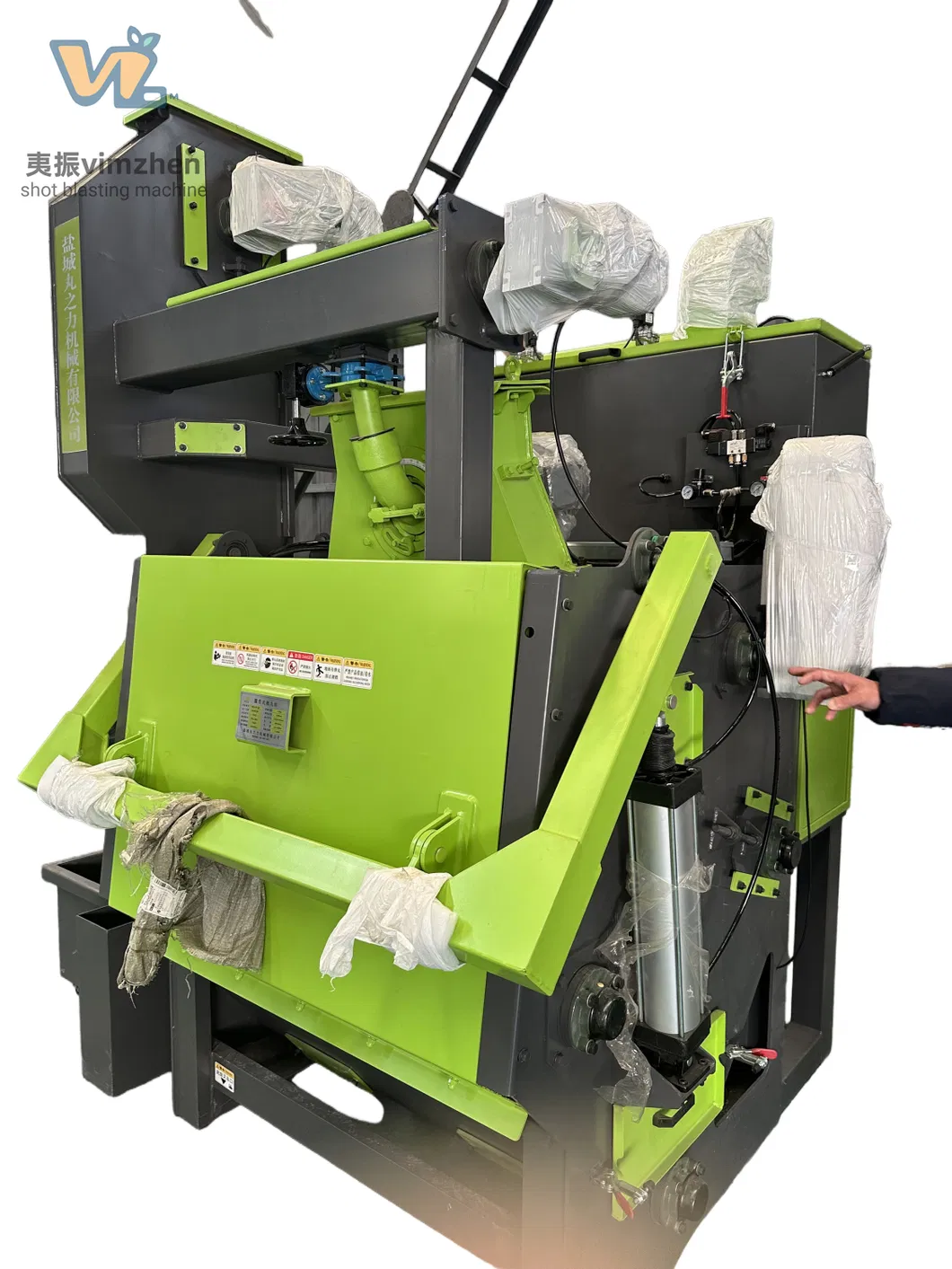

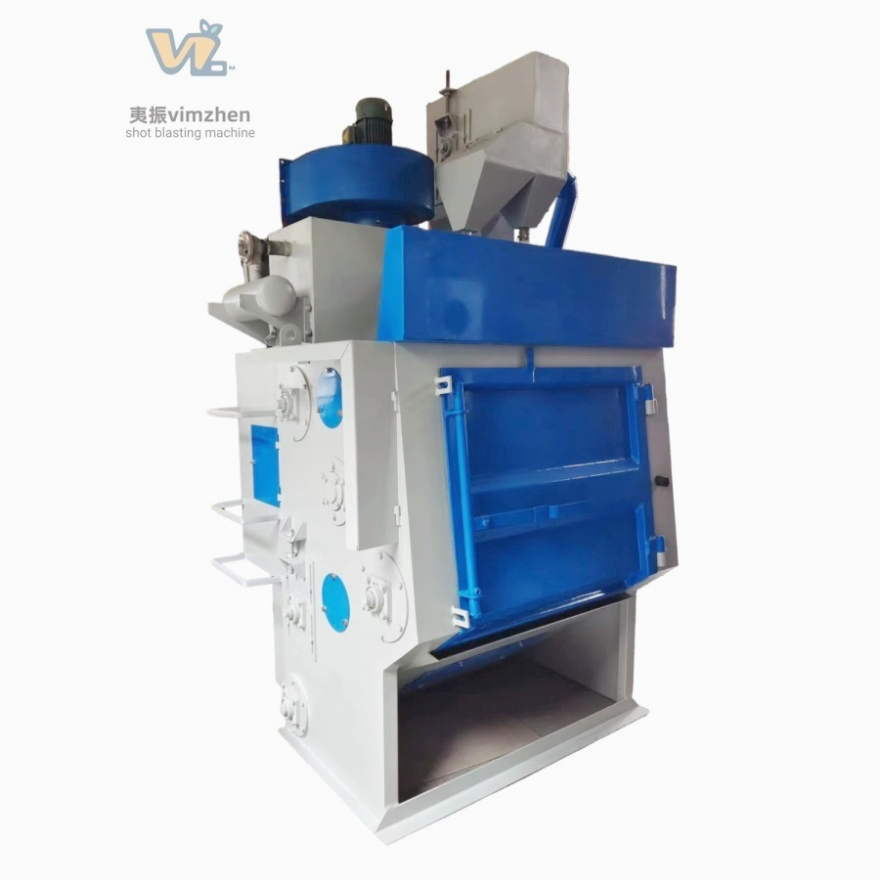

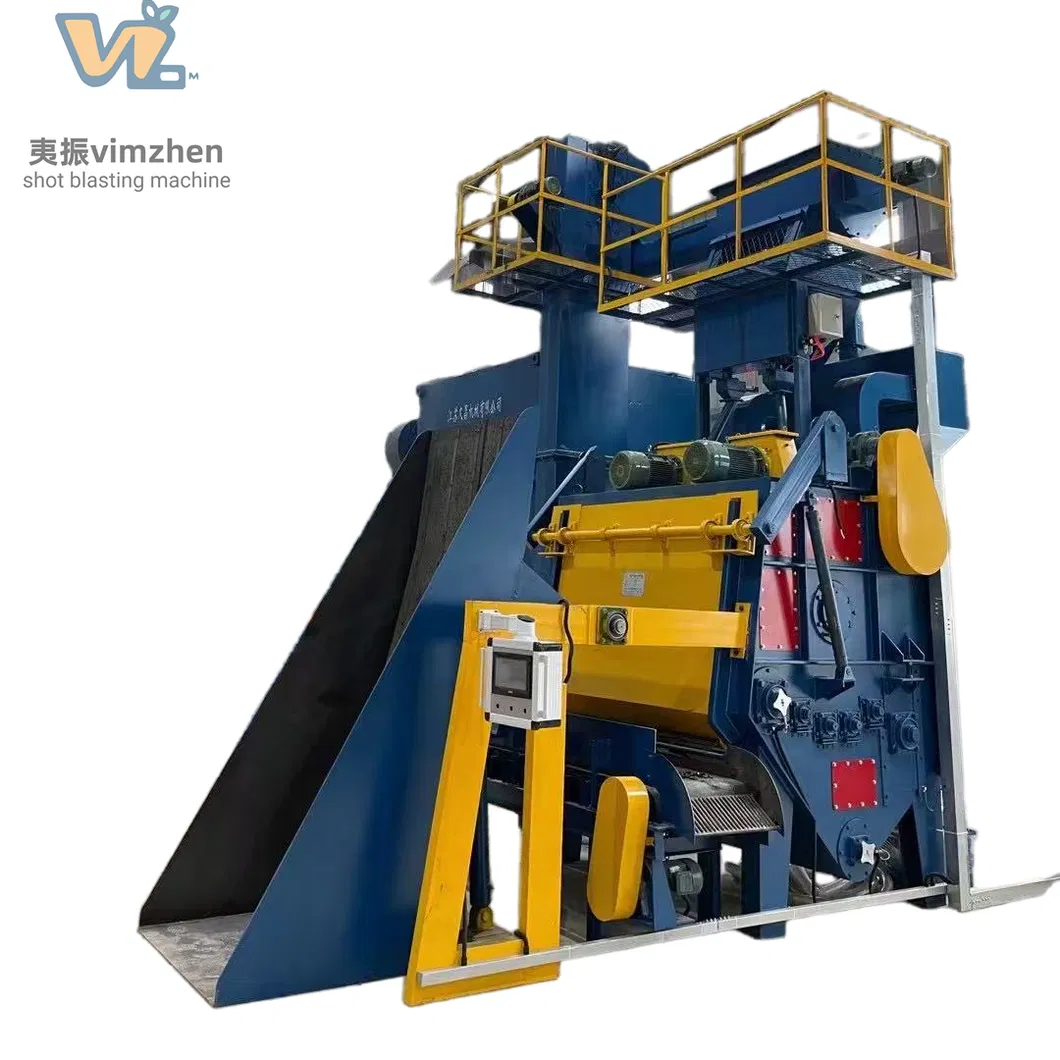

Crawler type shot blasting machine is suitable for multi-species, large and medium batch production of workpiece surface rust removal or shot peening. Cleaning workpieces must not be afraid of collision castings and heat treatment parts. Application scope includes: die casting, precision castings, precision forgings, such as cleaning and finishing. It effectively removes surface oxidized skin of heat treatment parts, castings and forgings, strengthens springs, descales fasteners, and provides pre-treatment. Note: This machine cannot clean workpieces with high temperature or with flying edge burr to prevent track damage. Automatic loading and unloading mechanisms can be designed to improve production efficiency.
| Model | Q324 | Q326 | Q328 | Q3210 | Q3210 (Auto) | Q3212 |
| Production rate (t/h) | 0.3-0.6 | 0.6-1.2 | 1.2-2.0 | 2.0-2.8 | 2.0-2.8 | 4.0-6.0 |
| Max weight per piece (kg) | 5 | 10 | 15 | 25 | 25 | 75 |
| Diameter of end plate (mm) | Ф400 | Ф600 | Ф800 | Ф1000 | Ф1000 | 1200 |
| Effective volume (m3) | 0.05 | 0.15 | 0.2 | 0.3 | 0.3 | 0.75 |
| Blasting volume (kg/min) | 40 | 150 | 220 | 250 | 250 | 500 |
| Ventilation volume (m3/h) | 2000 | 2200 | 2600 | 3500 | 3500 | 7000 |
| Total power (kW) | ≈6 | ≈13 | ≈19 | ≈21 | ≈26 | ≈48 |
Suitable for surface rust removal or shot peening of workpieces in multi-variety, large- and medium-batch production. Ideal for castings and heat-treated parts that can withstand collisions. Common applications include fasteners, springs, and precision forgings.

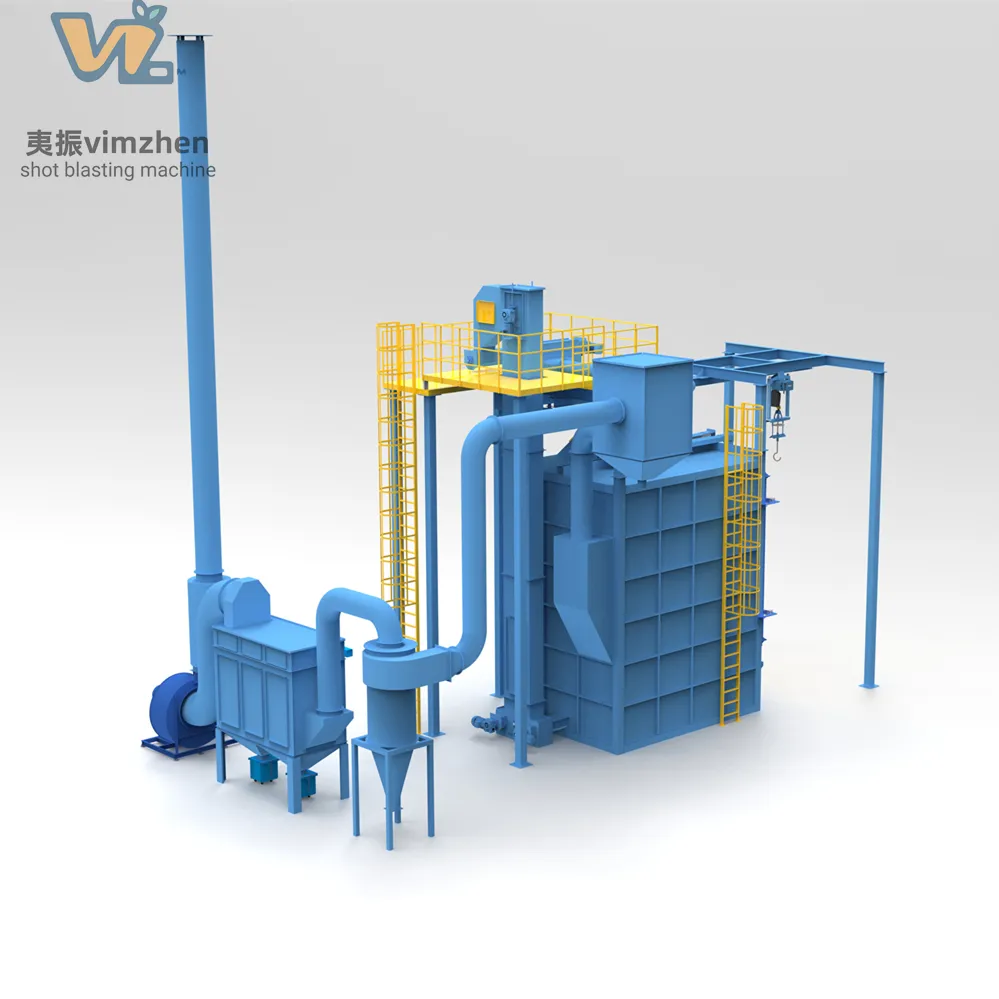

Available in single and double-hook models. Perfect for cleaning parts prone to damage from collisions. Features a pit-free structural design, compact layout, and electric hoist for efficient handling.

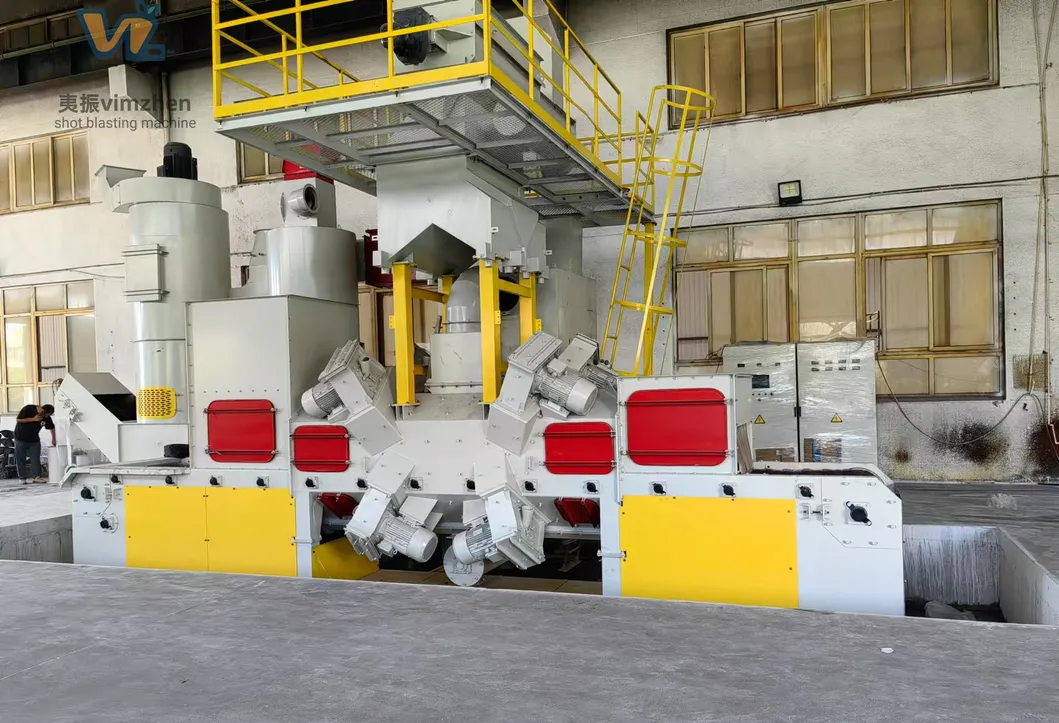

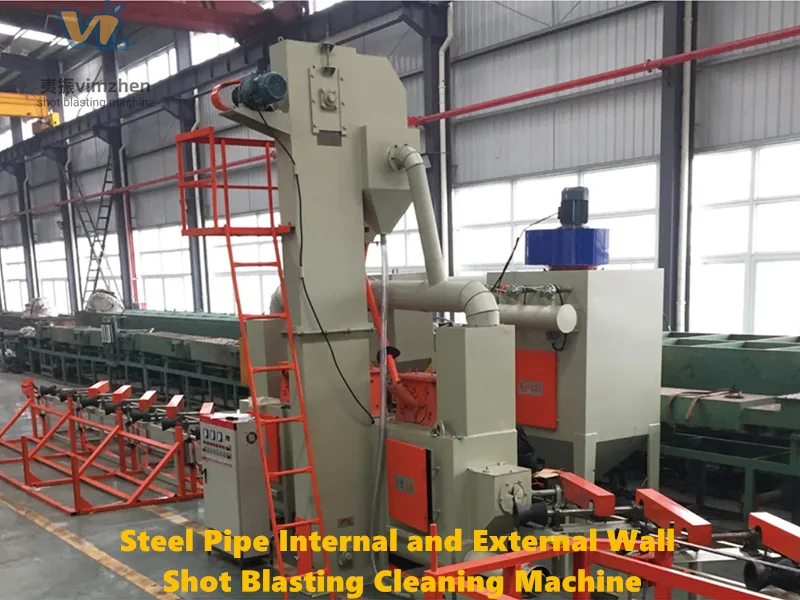

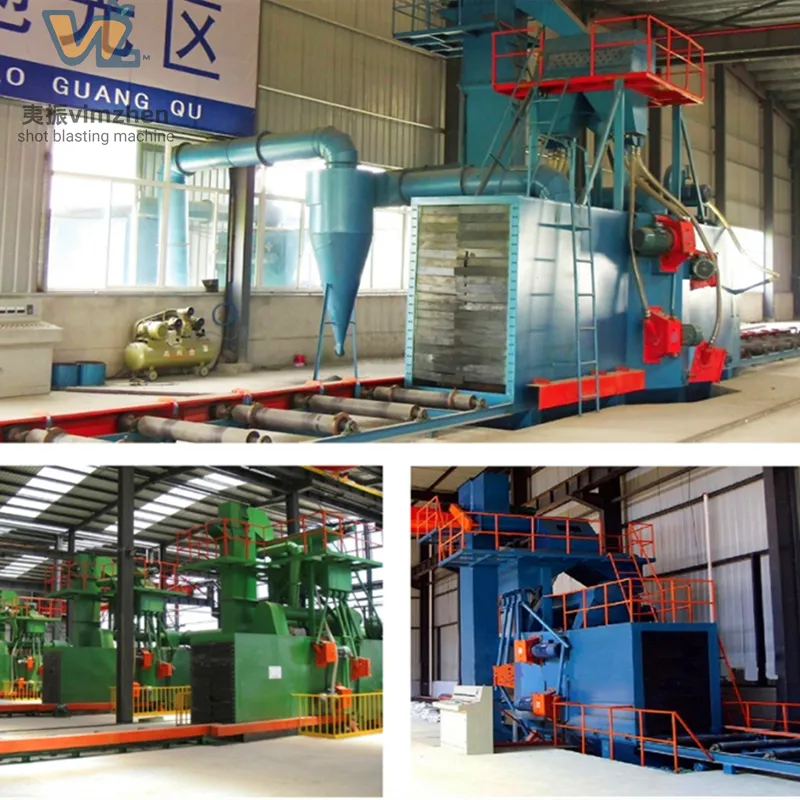

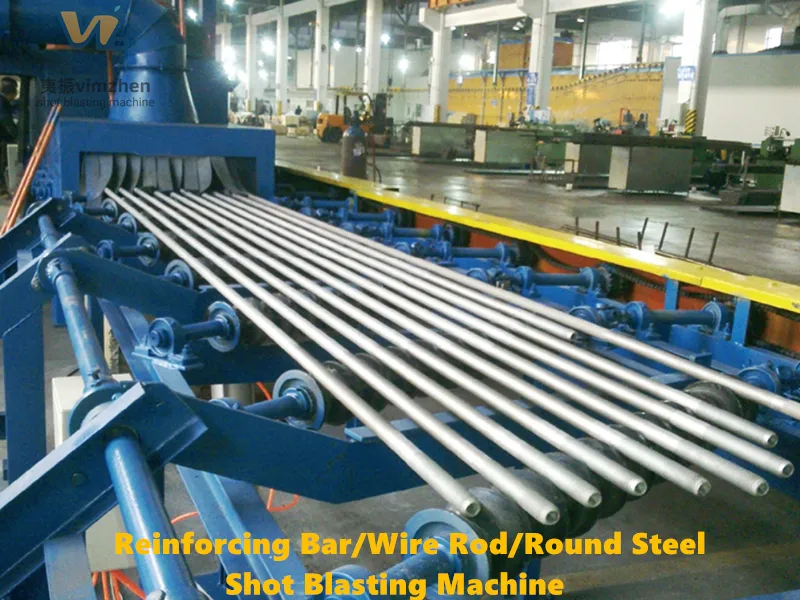

Designed for continuous operation on various steel materials like plates, beams, and pipes. High-velocity steel shots remove scale and rust rapidly, providing a clean finish with optimal roughness.
Primary choice for thin-walled castings, fragile iron, or aluminum alloy parts. Offers excellent continuity and minimal workpiece deformation with a pit-free structure.
As a leading provider in surface treatment technology, we specialize in high-performance shot blasting machines (Q32/Q35/Q36/Q37/Q38/Q69/Q76/QH Series), large-scale sandblasting & painting rooms, and S11 Series sand mixers. Our solutions comply with ASTM A532 standards and incorporate advanced international technologies for superior derusting, desanding, and surface renewal.
To provide the most suitable equipment, please prepare the following details:
