Q37 Series Hook Type Shot Peening Machine Shot Blasting Machine for Surface Polishing
Q37 Series Hook Type Shot Peening Machine Shot Blasting Machine for Surface Polishing
Q37 Series Hook Type Shot Peening Machine Shot Blasting Machine for Surface Polishing
Q37 Series Hook Type Shot Peening Machine Shot Blasting Machine for Surface Polishing
Q37 Series Hook Type Shot Peening Machine Shot Blasting Machine for Surface Polishing
1 / 5
Q37 Series Hook Type Shot Peening Machine Shot Blasting Machine for Surface Polishing
Q37 Series Hook Type Shot Peening Machine Shot Blasting Machine for Surface Polishing
Q37 Series Hook Type Shot Peening Machine Shot Blasting Machine for Surface Polishing
Q37 Series Hook Type Shot Peening Machine Shot Blasting Machine for Surface Polishing
Q37 Series Hook Type Shot Peening Machine Shot Blasting Machine for Surface Polishing

Q37 Series Hook Type Shot Peening Machine Shot Blasting Machine for Surface Polishing

Customization: Available
Application: Metal Surface Derusting, Cleaning and Strengthenin
Fuel: Electric
Send Inquiry

Product Description

Basic Information
Type
Crawler Abrator
Cleanliness
High Cleanliness
Automation
Automatic
Certification
CE
Feature
No Pit
Condition
New
Customized
Customized
Used
Various Small Castings, Valves, Surface Cleaning
Transport Package
Exporting Packing
HS Code
8424300000
Production Capacity
50 Set/Month
Product Description

Q37 Series Hook Type Shot Peening Machine for Surface Polishing

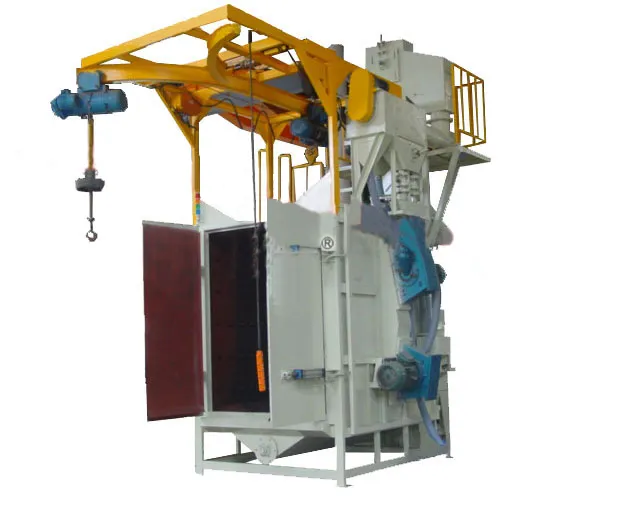

Shot Peening Machine
Machine Overview

We supply professional customization design services. We can design the most suitable machine according to your detailed requirements and workpiece specifications.

Technological Strength
  • 1 Dedicated shot blasting for office building wall decoration marble.
  • 2 Dedicated shot blasting for aggrandizement floor grinding tools.
  • 3 Dedicated shot blasting for high-speed rail applications.
  • 4 Dedicated shot blasting for crystalline silicon.
  • 5 Dedicated shot blasting for oil field special-purpose cable trays.
Key Characteristics

The shot blasting machine is a compact, low-noise cleaning equipment with high efficiency:

  • Cantilever Blast Wheel: Long life and simple structure.
  • Abrasive Separator: Full curtain winnowing for higher productivity and blade life.
  • Wear-resistant Track: Reduces workpiece collision damage and machine noise.
  • Pulse Dust Collector: Improves labor environment by efficient dust collection.
Machine Structure
Technical Specifications
Item Unit Q376 Q378 Q3710
Size of cleaning piece mm Φ600*1200 Φ800*1500 φ900*1600
Carrying weight of single hook kg 800 1000 1000
Abrasive flow rate Kg/min 2*180 2*200 2*250
Lifting amount of elevating conveyor t/h 18 22 30
Separating amount of separator t/h 18 22 30
Ventilation capacity m³/h 5500 8000 9000
Power (excluding dusting) Kw 22 32.5 36.55

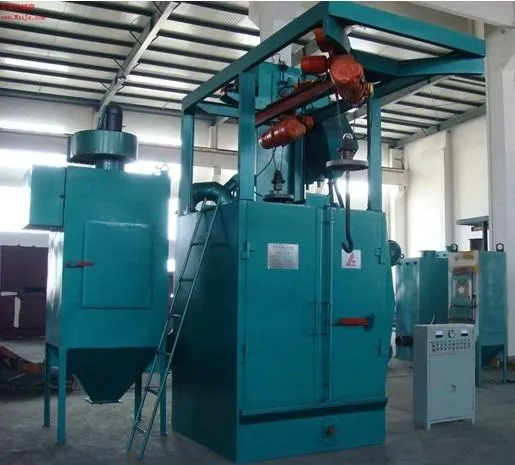

Shot Blasting Detail

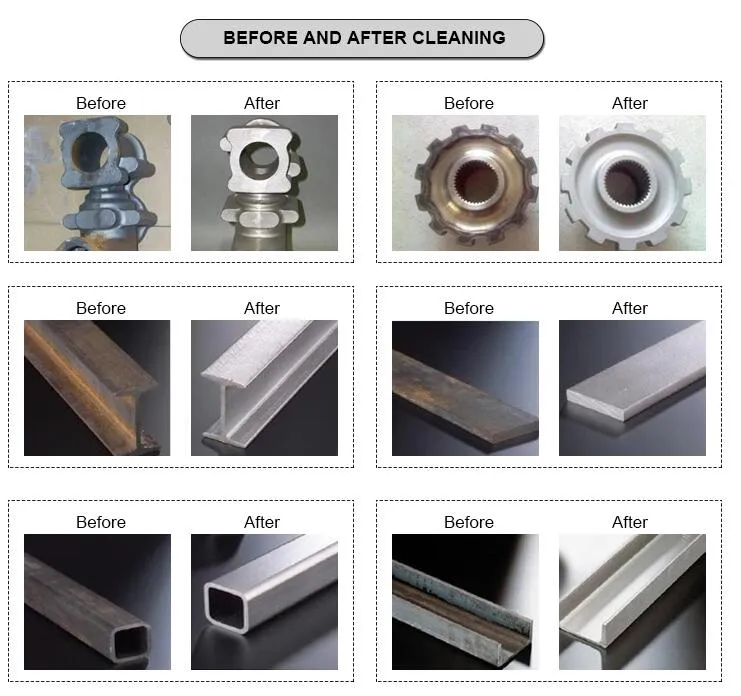

Workpiece Cleaning
Applications
  • Descaling of forged or heat treated parts
  • Desanding of ferrous and non-ferrous metal castings
  • Deburring of metallic and non-metallic parts
  • Deflashing of die cast parts
  • Contaminant removal
Optimized Shot Blast Effect

The tumbling action ensures workpieces are evenly and continuously exposed to the blast stream. Interiors and cavities are perfectly cleaned. The tightly sealed, leak-proof blast chamber minimizes shot consumption.

Our Advantages
  • 10 years professional production experience.
  • 22,000 m² production workshop with strong capacity.
  • Strict quality control (CE, BV, ISO9001).
  • Main components from international famous brands.
  • Site installation and commissioning services.
Factory Workshop

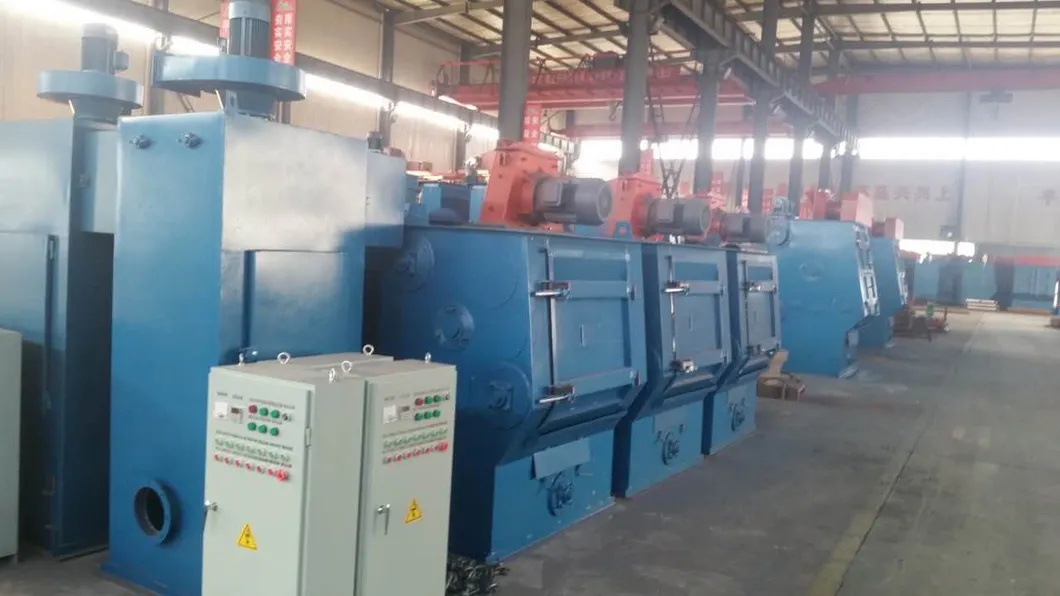

Machine Assembly
Frequently Asked Questions
What is a hook type shot blasting machine used for?
It is primarily used for descaling, desanding, and deburring of various castings, forged parts, and heat-treated components to achieve a high-quality surface finish.
Can the machine be customized for specific workpieces?
Yes, we provide professional customization services. We can design the machine dimensions and hook capacity based on your specific workpiece size and weight.
How does the dust collection system work?
The machine uses a pulse dust collector that captures dust in a hopper or exhausts it outdoors, ensuring a clean and safe working environment.
What certifications do your machines have?
Our machines are manufactured under strict quality control systems and hold CE, BV, and ISO9001 certifications.
Do you provide on-site installation?
Yes, we offer comprehensive after-sales service, including site installation and commissioning at your factory by our professional engineers.
How is the abrasive separated for reuse?
The machine features a full curtain winnowing abrasive mixture separator which effectively separates clean shot from dust and contaminants for continuous reuse.
