Q37 Series Hook Type Shot Blasting Sand Blasting Machine

1 / 5

Q37 Series Hook Type Shot Blasting Sand Blasting Machine

Customization:	Available
After-sales Service:	1 Year Warranty and Consult Forever
Warranty:	12 Months From Date of Commissioning Completion.

Send Inquiry

Product Description

📋 Basic Information

Model NO.

Q37 Series Hook Type Shot Blasting Machine

Application

Steel Plate Pre-Treatment

Fuel

Electric

Type

Crawler Abrator

Cleanliness

High Cleanliness (SA 2.5)

Automation

Automatic

Certification

CE, RoHS

Weight

5tons - 30tons

Core Components

PLC, Engine, Bearing, Gearbox, Motor

Cleaning Type

Clean-in-Place (CIP)

⚙️ Product Description

The hook-type shot blasting machine is an essential solution for cleaning or strengthening various medium to large batch forgings, gas cylinders, gears, brake pads, motor covers, castings, and sheet metal parts. It is exceptionally effective for derusting surfaces and improving coating adhesion.

Key Features:

Designed for high production cleaning, these machines offer a small footprint and are easily integrated into existing logistics. They provide a cost-effective solution for batch cleaning, deburring, descaling, and peening.

Main Advantages

Improve corrosion resistance of metal materials.
Enhance bonding strength of steel surfaces and coatings.
Increase fatigue resistance and extend service life.
Optimize surface treatment conditions.
Greatly improve cleaning efficiency and reduce labor intensity.
Decrease environmental pollution during processing.

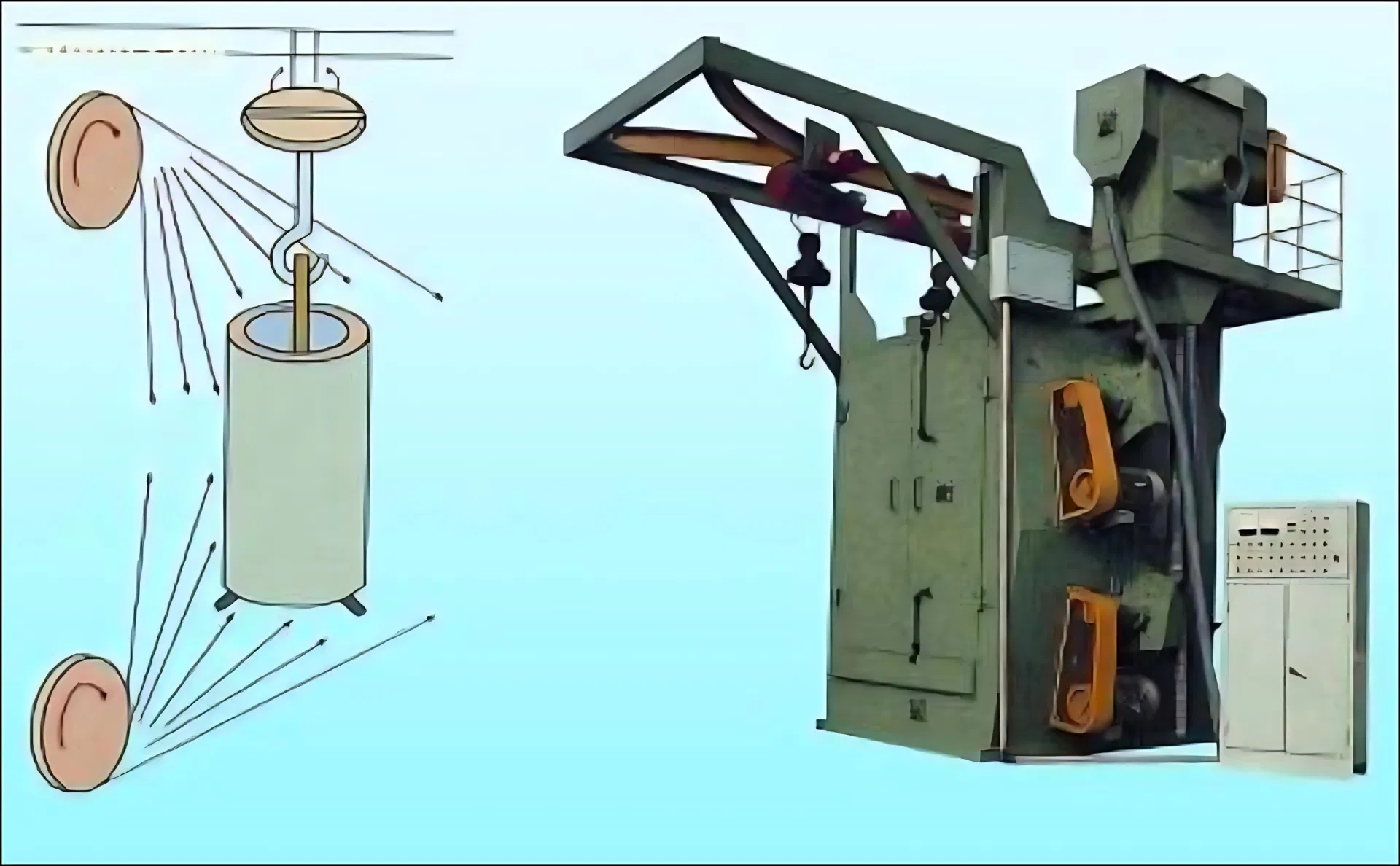

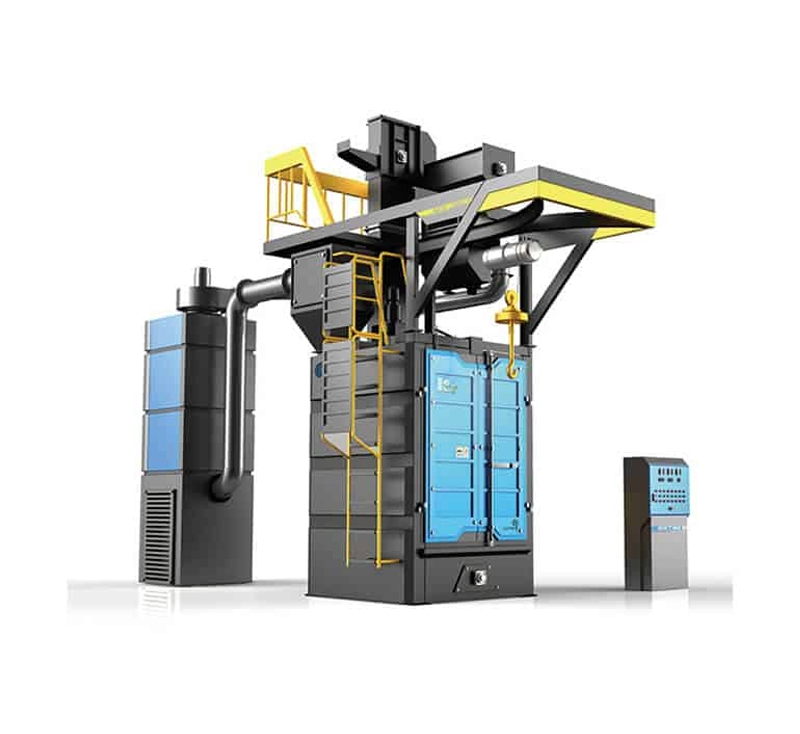

Q37 Series Hook Type Shot Blasting Machine Overview

📊 Technical Specifications

Type	Workpiece Dimensions (mm)	Hook Capacity (kg)	Blasting Amount (kg/min)	Elevator (T/H)	Separator (T/H)	Ventilation (m3/h)	Power (kW)
Q376	Ø800*1200	500	2*120	15	15	5600	25.2
Q378	Ø1000*1500	1000	2*180	22	22	7000	35.2
Q3710	Ø1200*1700	1000	2*180	30	30	7600	36.4
Q3720	Ø1400*2300	2000	3*250	45	45	9600	65
Q3730	Ø1600*2500	3000	3*250	45	45	11000	66.6
Q3750	Ø1800*2500	5000	4*250	60	60	13600	88.4
Q37100	Ø2000*3500	8000	5*250	75	75	17600	110.6

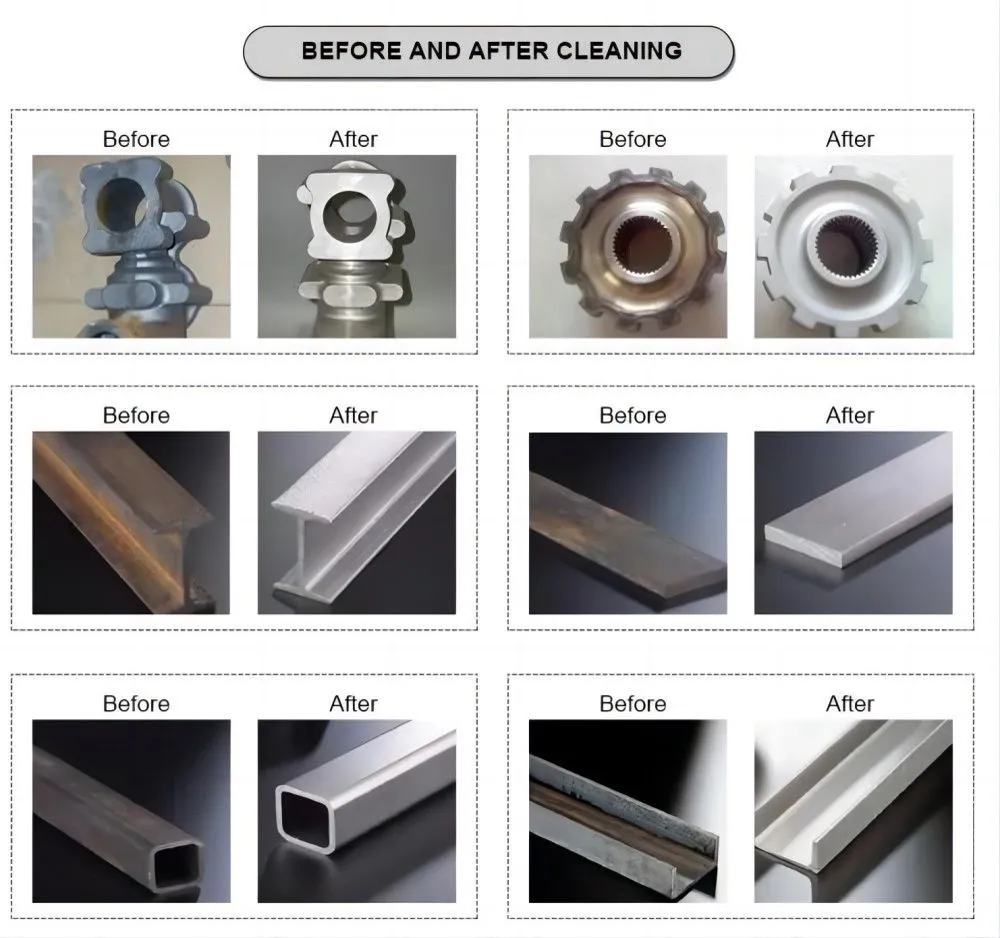

Cleaning Effect Comparison

📜 Certifications

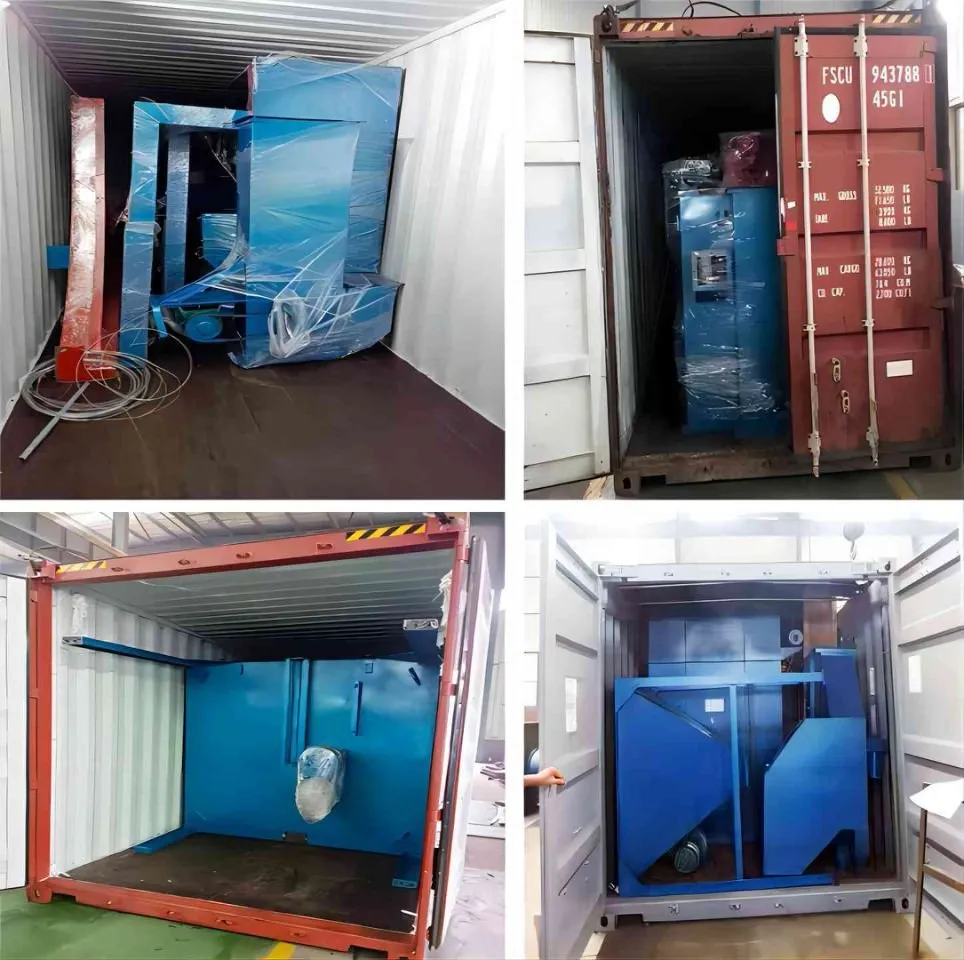

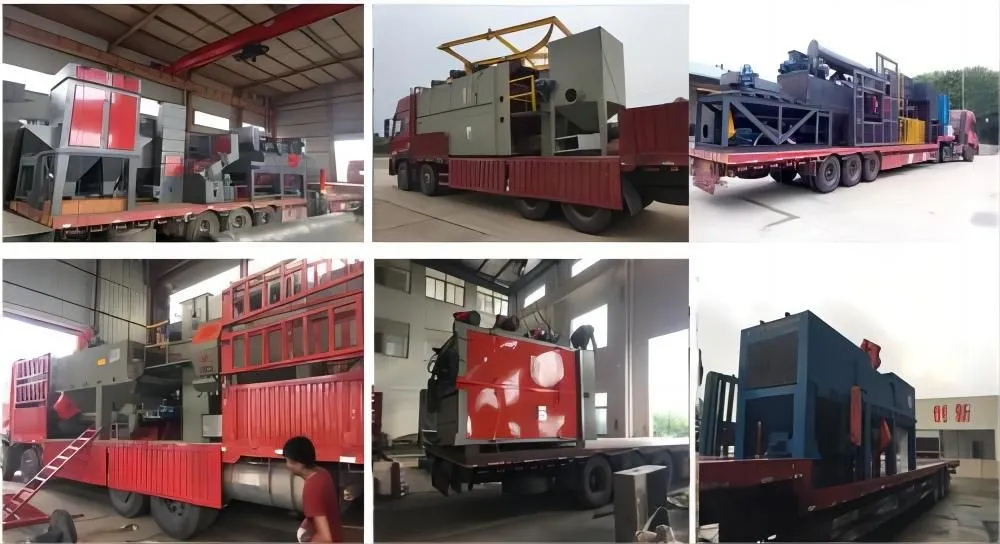

🚢 Packaging & Shipping

Packaging

40'HQ container

Departure Port

ShangHai Port

Lead Time

Around 30-50 days

🛠️ After-Sales Service

1. Installation & Commissioning: We provide 1-2 technicians to assist with machine installation, commissioning, and staff training.

2. Warranty: 12 months from the date of commissioning completion.

3. Documentation: Full English documentation provided, including foundation drawings, manuals, electrical diagrams, and maintenance books.

Frequently Asked Questions

How long does it take to produce this machine?

Standard machines are often in stock and can be delivered immediately. For customized designs, the process from engineering to completion typically takes 30 to 50 days.

How is quality control managed in your facility?

Quality control is prioritized from start to finish. Each machine is fully assembled and undergoes rigorous testing before shipment to ensure perfect working condition.

What is the machine's quality guarantee?

We offer a one-year quality guarantee. To ensure reliability, we use world-famous brand components for all critical systems.

Do you provide overseas installation and commissioning?

Yes, we provide overseas service. Technicians can be dispatched for setup and training. Small machines usually take 5 days, while larger systems may take 20 to 60 days.

What documents are included with the machine?

We provide a complete set of English documents, including foundation drawings, operation manuals, electrical wiring diagrams, and maintenance guides.

Can the machine be customized for specific workpieces?

Absolutely. While we have standard models like the Q37 series, we specialize in designing customized machines tailored to your specific workpiece dimensions and production requirements.
