Customization: Available
After-sales Service: Overseas Installation
Warranty: One Year
Send Inquiry

Product Description

📊 Basic Information
Model NO.
Q37
Drive
Electric
Principle
Blades Impeller
Control
Blasting Turbine
Layout
Vertical
Automation
Automatic
Kind
Dry Sandblaster
Condition
New
Origin
China
HS Code
8424300000
⚙️ Product Description

Hook type sand blasting machine surface treatment equipment for sandblasting, rust removal, and removal of oxide scale

  • ✔
    Suitable for surface cleaning or strengthening of castings, forgings, welded parts and heat-treated parts of various varieties, large, medium and small batches. Available in single hook and double hook forms.
  • ✔
    The chamber adopts a fully enclosed structure with special wear-resistant alloy cast iron guard plates to prevent projectile splashing.
  • ✔
    Equipped with an electric hoist for efficient loading, unloading, and lifting; includes a self-rotation device for thorough workpiece coverage.
  • ✔
    Flexible operation with optional automatic or manual control systems.
  • ✔
    Compact structure with high productivity and no requirement for a foundation pit.

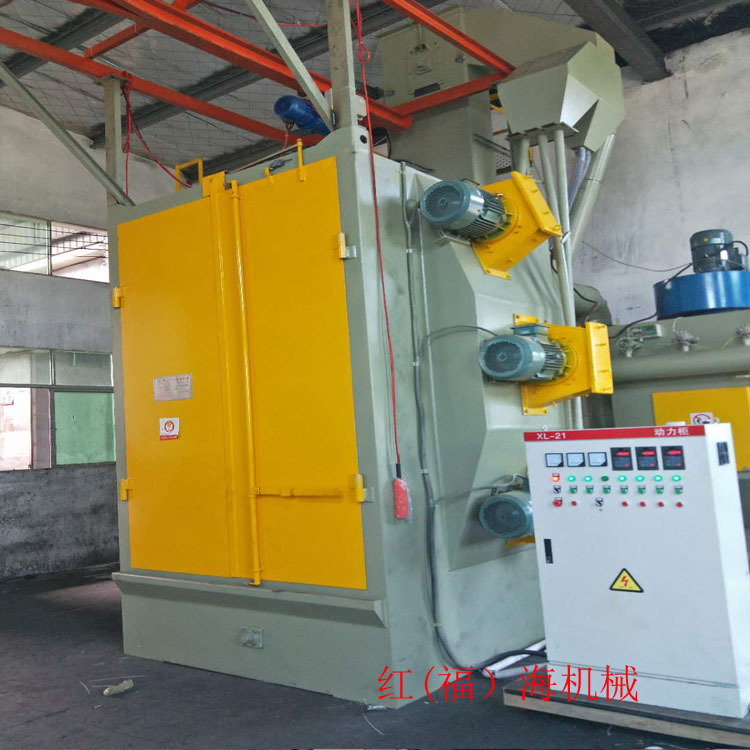

Hook Type Sand Blasting Machine
📋 Technical Parameters
Item Unit Q376 Q378 Q379 Q3710 Q3720 Q3730 Q3740 Q3780 Q37100
Single hook lifting weight kg 600 1000 1000 1000 2000 3000 5000 10000 10000
Shot blasting capacity kg/min 2X150 2X200 2X200 2X220 3X220 3X250 6X250 8X250 8X270
Separator capacity T/h 25 30 30 30 45 45 60 120 150
Max product size mm Φ600X1200 Φ800X1500 Φ900X1600 Φ1000X2000 Φ1200X2200 Φ1400X2700 Φ1600X3000 Φ2500X5100 Φ2800X5400
Total power kw ≈23 ≈34 ≈34 ≈48 ≈60 ≈67 ≈80 ≈150 ≈180

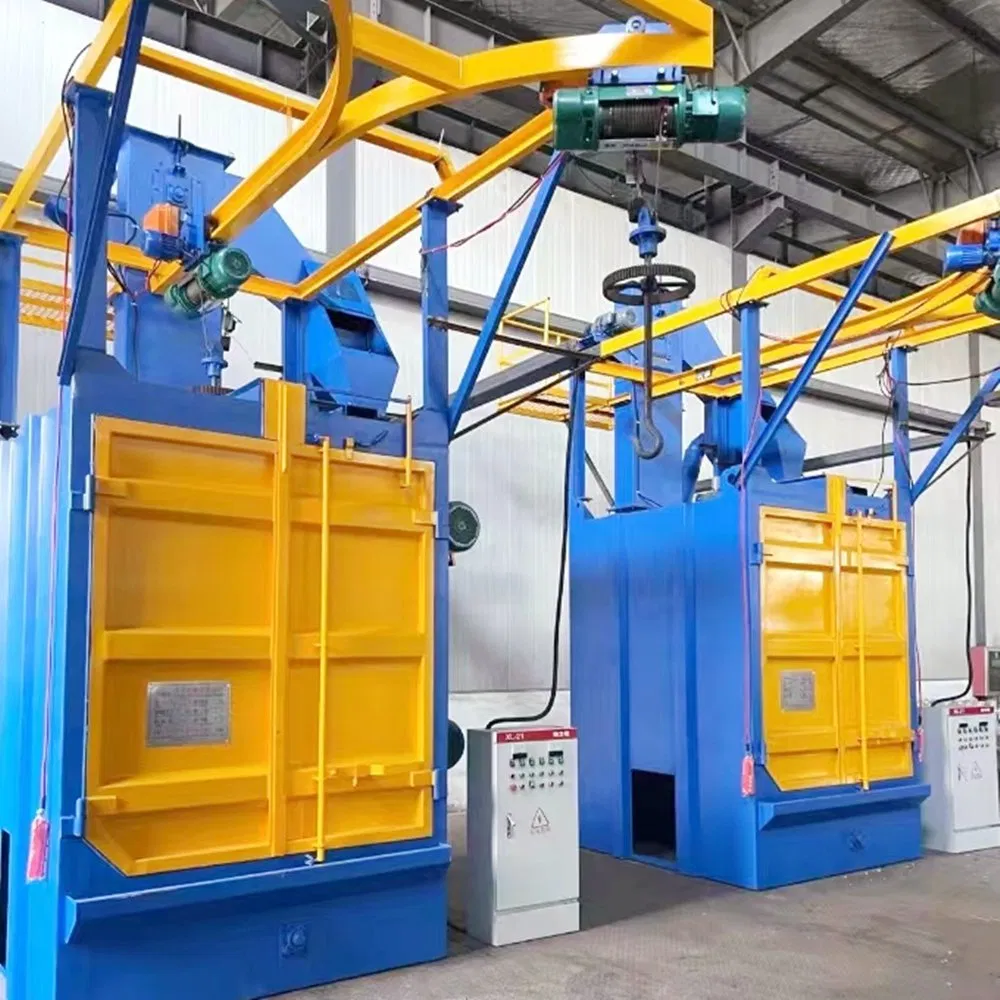

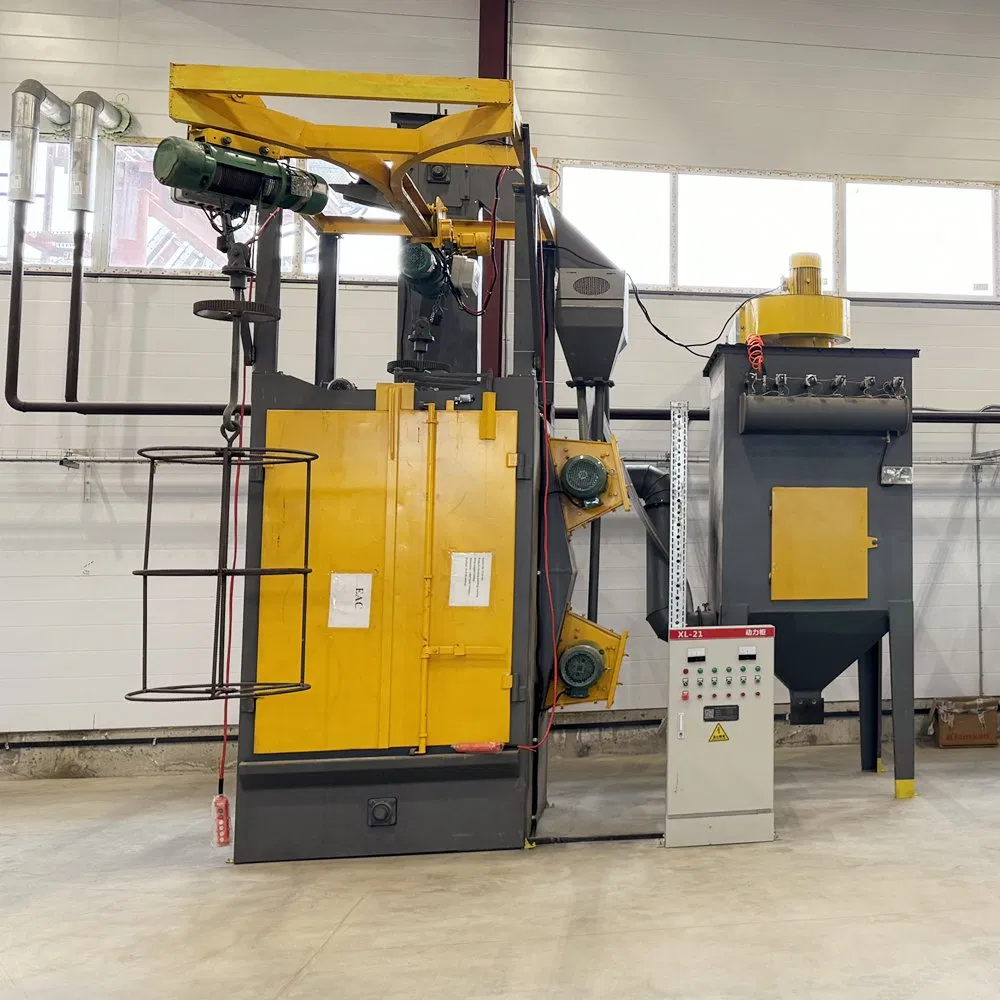

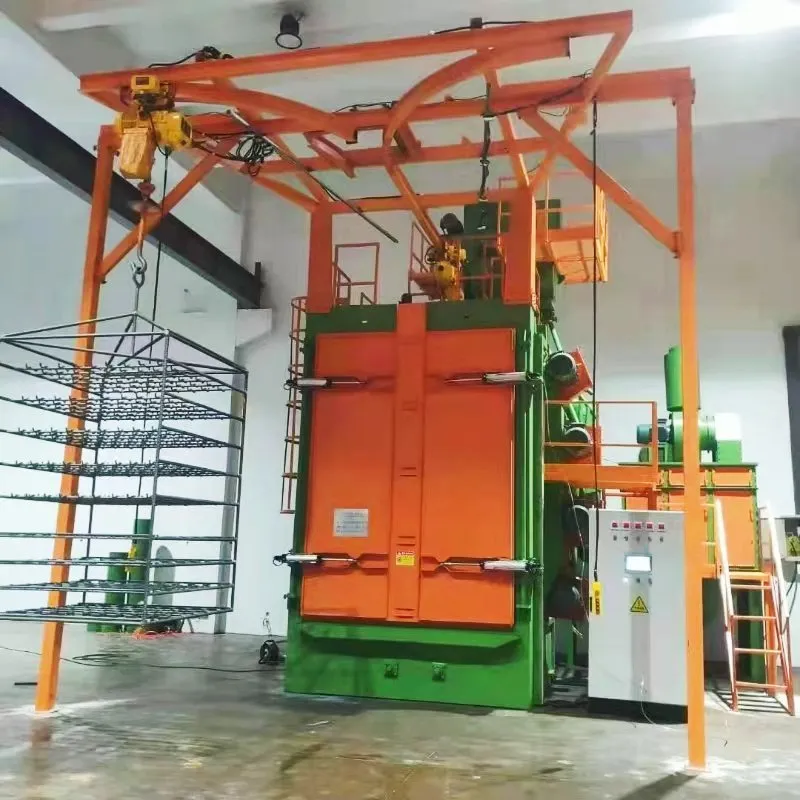

Sand Blasting Equipment Detail 1 Sand Blasting Equipment Detail 2 Sand Blasting Equipment Detail 3

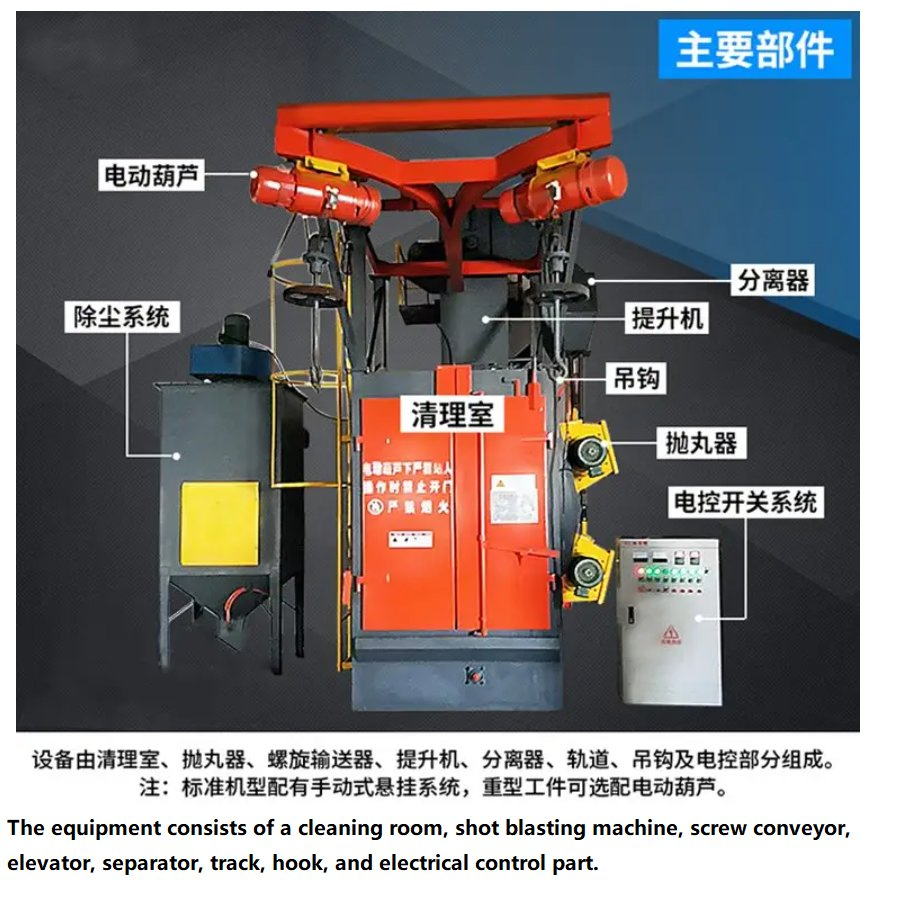

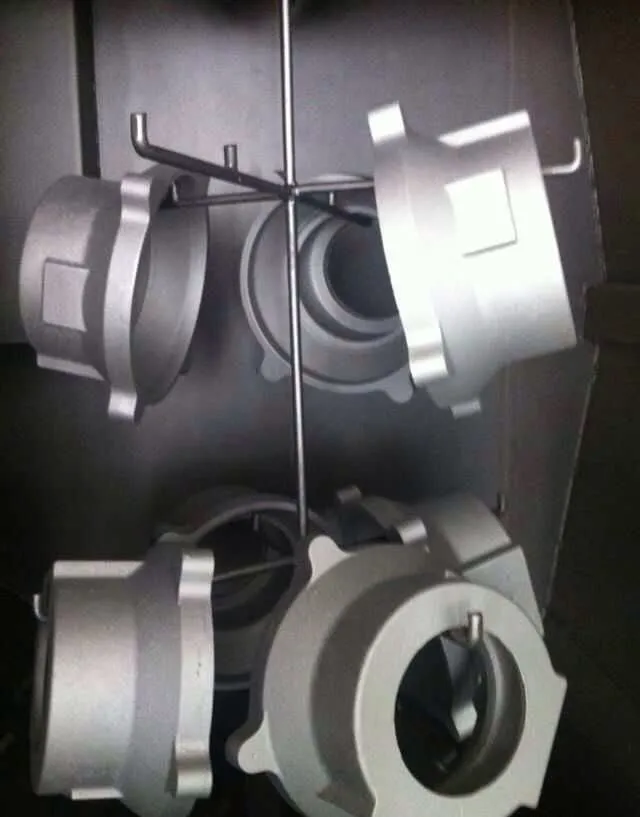

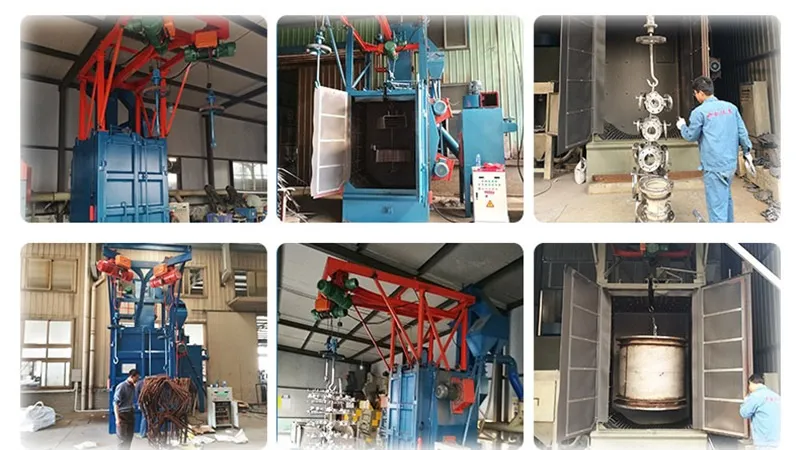

Technical Drawing Machine Overview
❓ Frequently Asked Questions
1. What materials can the Q37 Hook Type machine process?
It is ideal for surface cleaning and strengthening of castings, forgings, welded structures, and heat-treated parts across various industries.
2. Does this machine require a foundation pit?
No, one of the key advantages of the Q37 series is its pitless design, which simplifies installation and saves on construction costs.
3. How does the workpiece rotation work?
The machine features a self-rotation device that enables both forward and reverse rotation of the workpiece within the blasting chamber for 360-degree coverage.
4. Is the blasting chamber durable?
Yes, the chamber is fully enclosed and lined with high-quality, wear-resistant alloy cast iron guard plates to ensure long-term durability and safety.
5. Can the control system be customized?
The machine offers flexibility with both automatic and manual control options to suit different production requirements and operator preferences.
6. What is the maximum lifting capacity?
Depending on the specific model (from Q376 to Q37100), the single hook lifting capacity ranges from 600kg up to 10,000kg.
