Blatrixo Machine
Blatrixo Machine

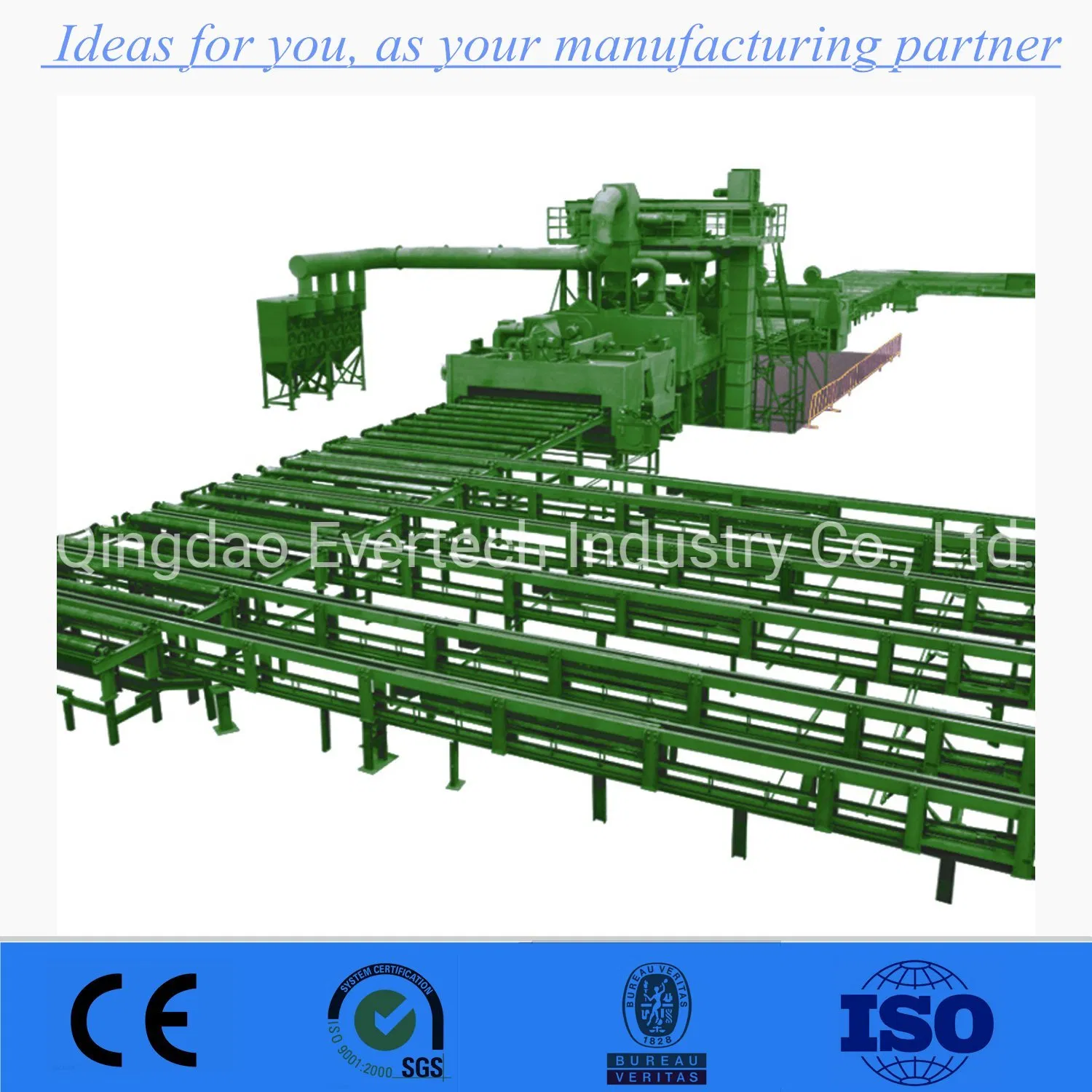

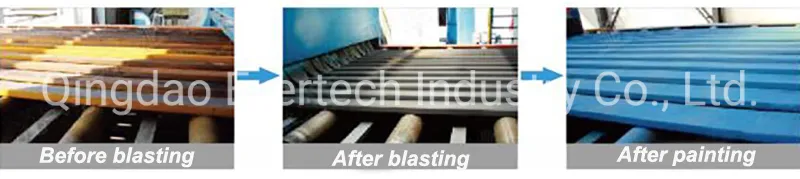

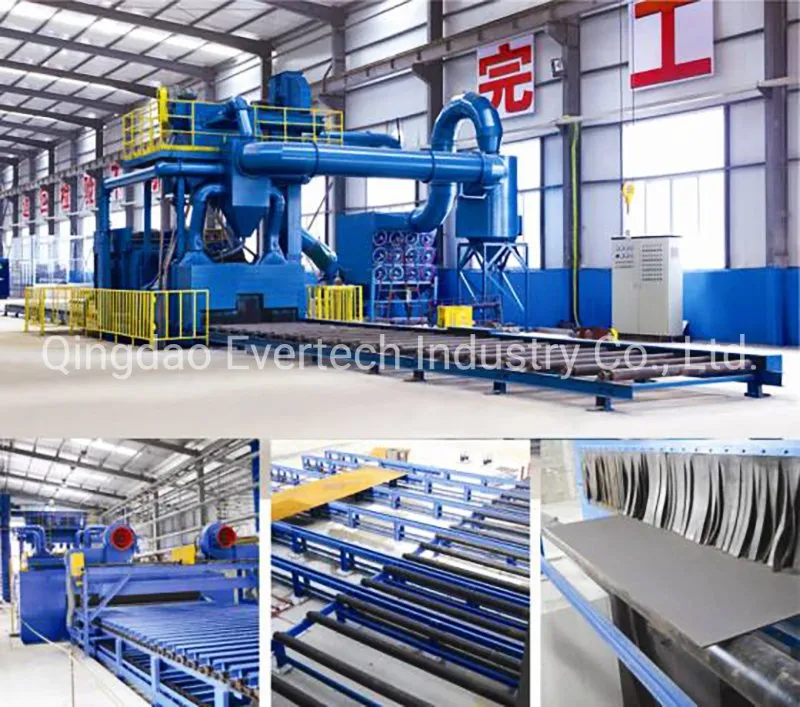

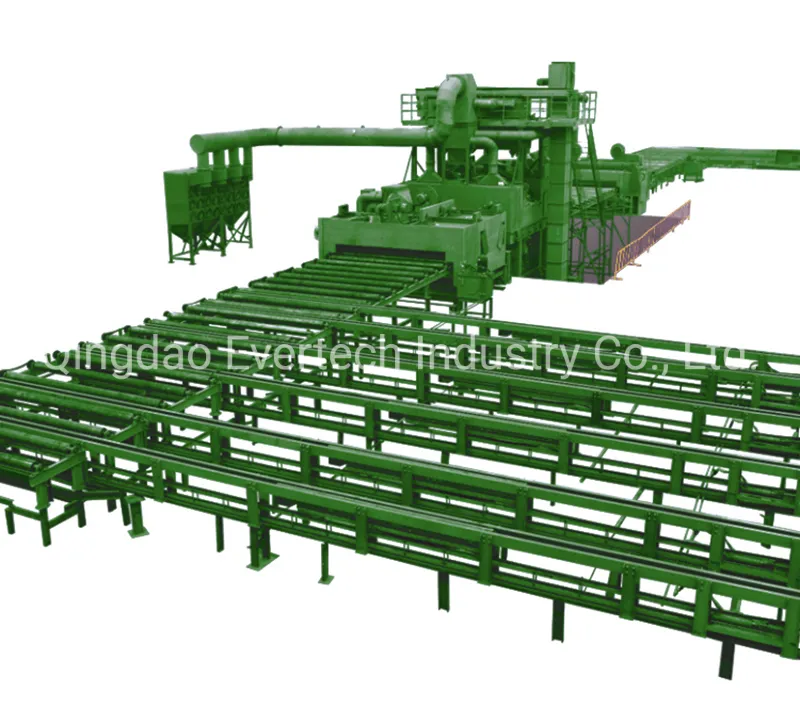

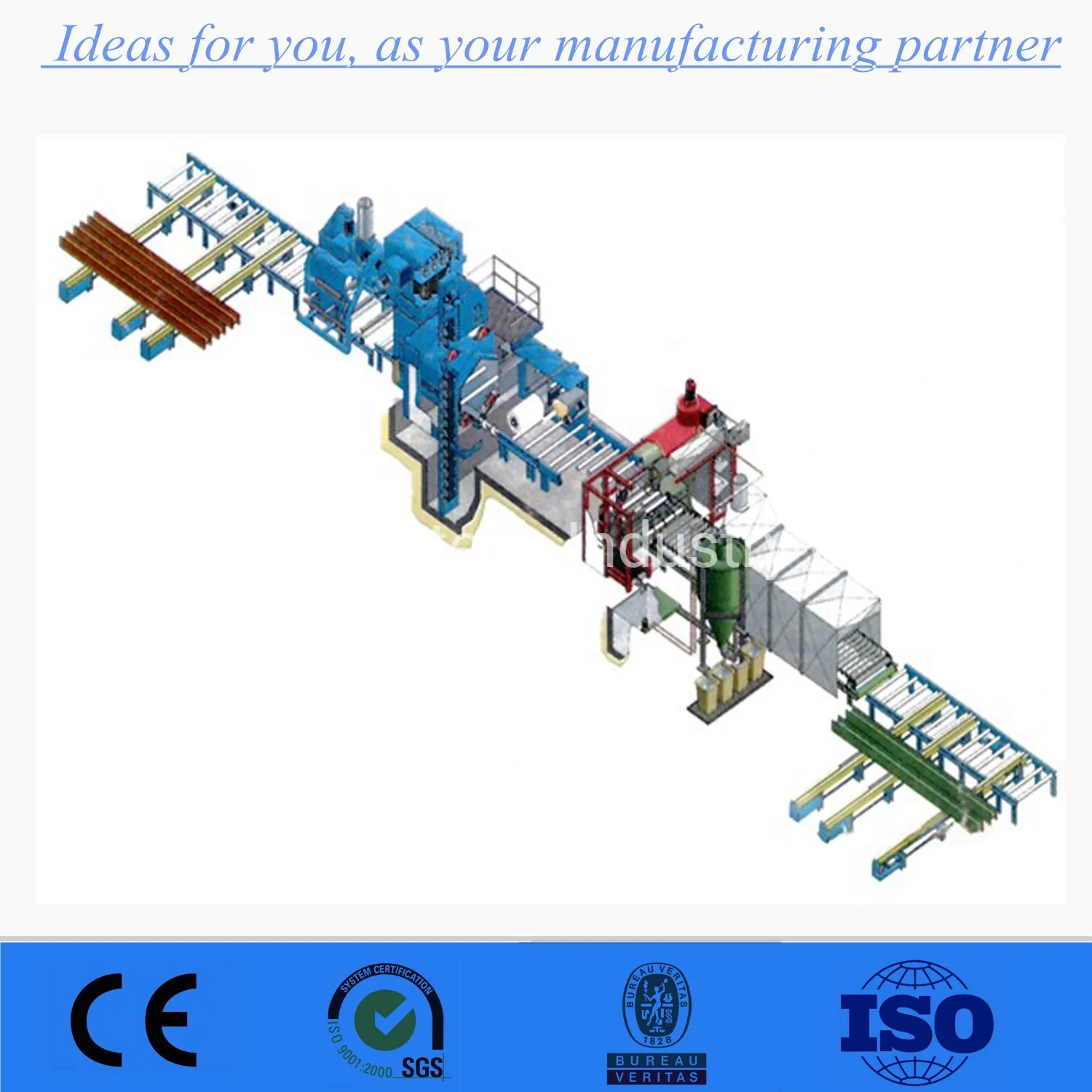

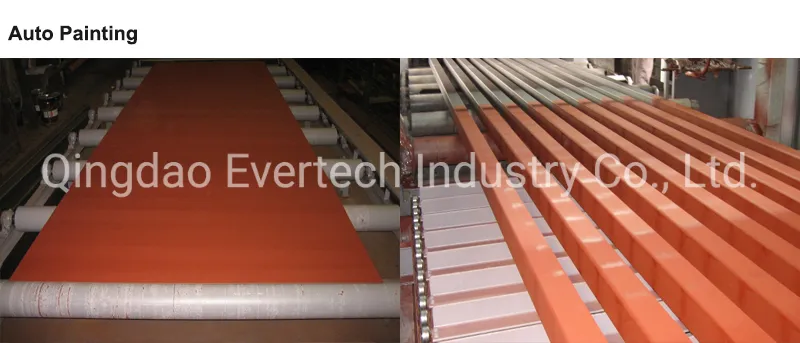

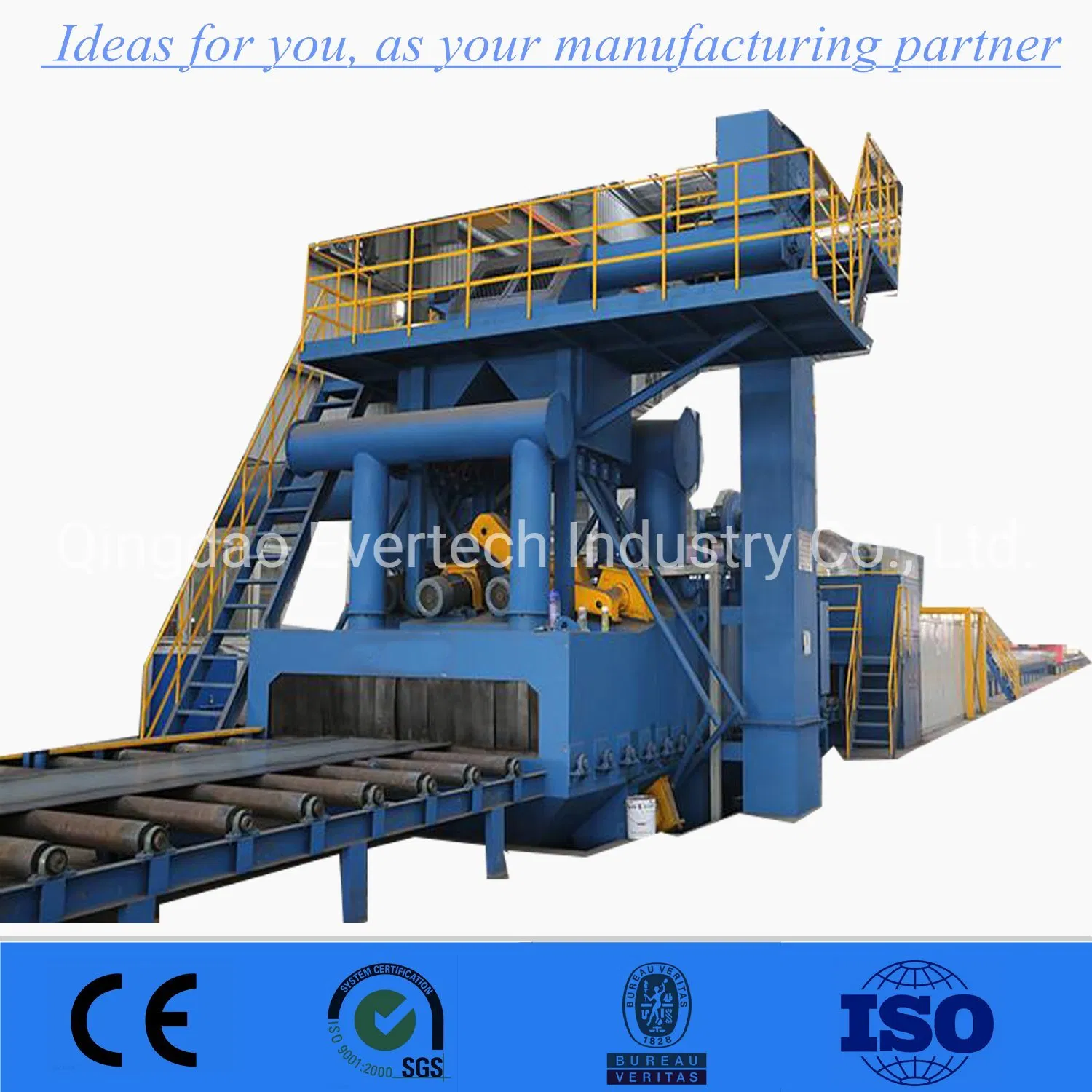

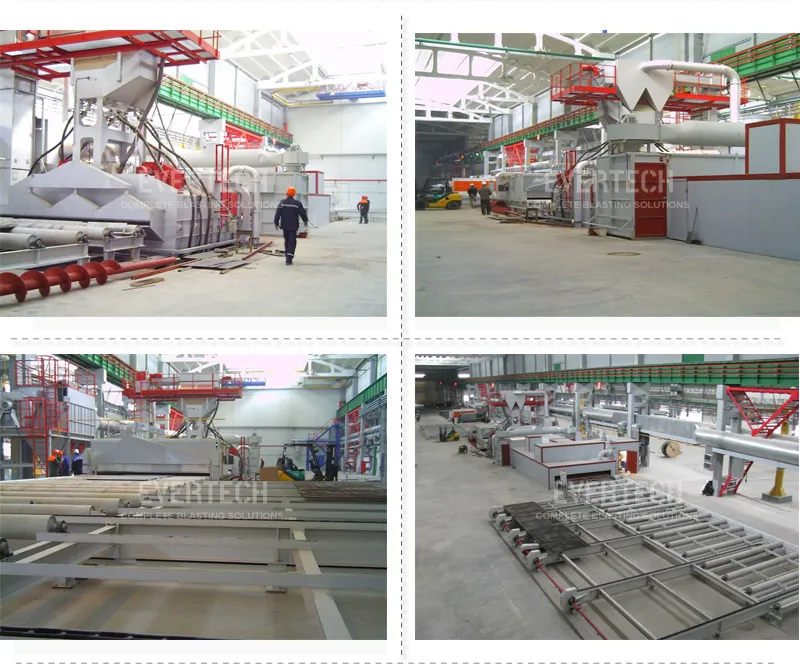

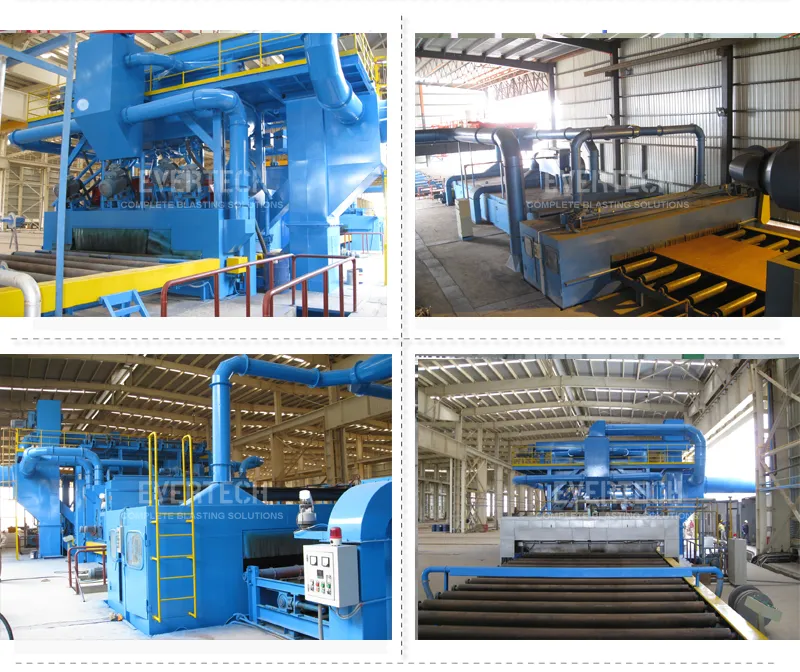

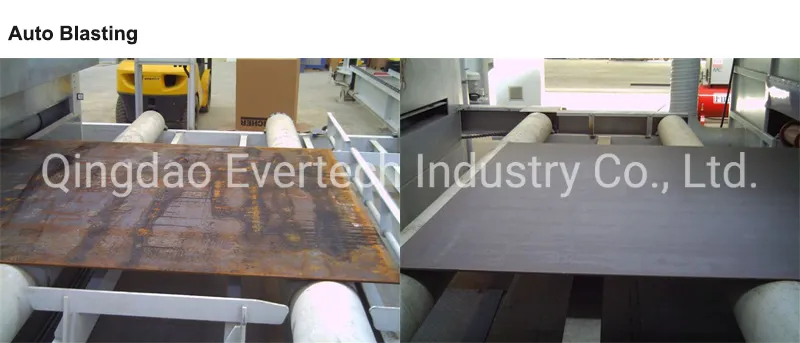

On the preservation line, sheets and profiles are thoroughly blast cleaned and provided with a temporary corrosion protection coating. Along with the external transportation unit, the preservation line consists of a pass through blasting and painting machine, a painting unit and a drying tunnel with its associated slat conveyor. Typical plates widths can vary up to 2500mm, height can vary from 5mm to 1000mm, length can vary from 2000mm to 12000mm.
Suitable for steel plate, H beams, I beams, steel pipe, and other regular shape steel workpieces, etc.
| Type | ETPL 1500HD | ETPL 2000HD | ETPL 2500HD | ETPL 3000HD | ETPL 4000HD |
|---|---|---|---|---|---|
| Size of workpiece (mm) | 500 | 500 | 500 | 500 | 500 |
| Width of workpiece (mm) | 1500 | 2000 | 2500 | 3000 | 4000 |
| Work speed (m/min) | 1.5-4.5 | 1.8-5.0 | 1.0-3.0 | 0.8-2.5 | 0.8-2.0 |
| Blast wheels count | 4 | 6 | 6 | 6 | 8 |
| Power per wheel (kW) | 11/15/18.5 | 11/15 | 11/15/18.5 | 15/18.5 | 11/15 |
| Roller pitch (mm) | 800 | 1000 | 1000 | 1000 | 1000 |
