Customization: Available
Application: Foundary
Fuel: Electric
Send Inquiry

Product Description

Basic Specifications
Model NO.
YB
Type
Crawler Abrator
Cleanliness
Medium Cleanliness
Automation
Automatic
Certification
CE
Feature
Rust / Corrosion Proof
Condition
New
Customized
Customized
Transport Package
Wooden Box
HS Code
8424300000
Production Capacity
3000/Year
Product Overview

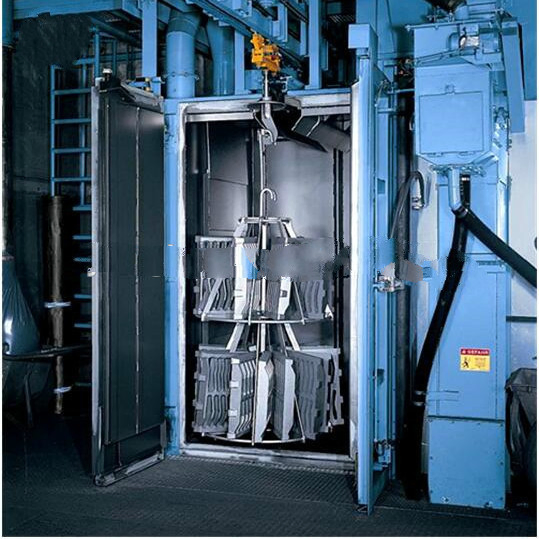

This professional shot blasting machine is engineered for cleaning or reinforcing various medium and large batch forged pieces, castings, and sheet metal parts. It is highly effective for frosting surfaces after rust removal and increasing the adhesive force for subsequent spraying processes.

Key Characteristics:
  • No-pit structure for easy mounting and reduced investment cost.
  • Compact structure with high cleaning efficiency and safe operation.
  • Wear-resisting cleaning chamber with High Chromium Manganese plates.
  • Double-hook structure for independent operation and improved productivity.
  • Two-stage dust removal (cyclone and bag filter) meeting environmental standards.
  • High-quality bearings and low-noise motor assembly.
Technical Parameters
No. Equip. Name Q376 Q378 Q3710 Q3720 Q3730 Q3750
1 Work piece dimension (mm) 700*1000 800*1500 1000*1800 1400*2300 1850*2200 1800*2500
2 Max hang weight (kg) 500 800 1000 2000 3000 5000
3 Hanger rotate speed (r/min) 4.0 4.3 4.0 4.3 4.0 4.6
4 Steel pill Dia (mm) 1-1.5 1-2 1-2 1-2 1-2 0.8-1.2
5 First loading quantity (kg) 500 1000 1000 1500 2000 2500
7 Power (KW) 2*7.5 2*11 2*11 3*11 4*11 5*11
14 Total vent amount (m3/h) 4500 6000 6000 85000 11000 18000
15 Total power (KW) 17 29 29 51 61 78
Working Principle
1
Place workpiece in the drum, close the pneumatic door, and initiate the blast cycle.
2
The crawler runs forward, ensuring the workpiece is constantly rolling for even exposure.
3
High-speed projectiles are shot onto the rolling surface to clear artifacts completely.
4
Steel shots are recycled through a screw conveyor, hoist, and separator for reuse.
5
After completion, the door opens and the caterpillar inverts to remove the artifacts.
Advanced Features
Cantilever centrifugal type blasting with long service life.
B E type separator for superior separation and productivity.
Bag filter system ensuring environment-friendly dust emissions.
Wear-resisting rubber tracks to prevent workpiece damage.
High-efficiency straight strong blast wheels for large volume.
Pill-to-sand separation rate greater than 99%.
Electrical relay or PLC control with sound and light alarms.
Low noise operation and easy-to-change wear parts.
Product Gallery

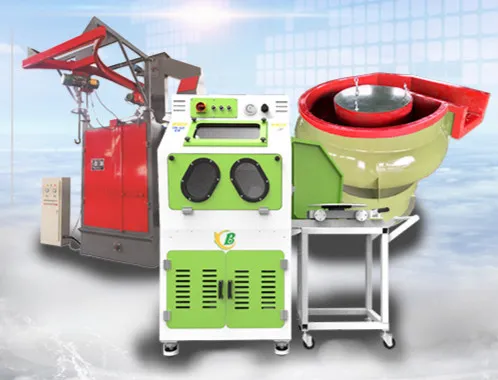

Shot Blasting Equipment 1

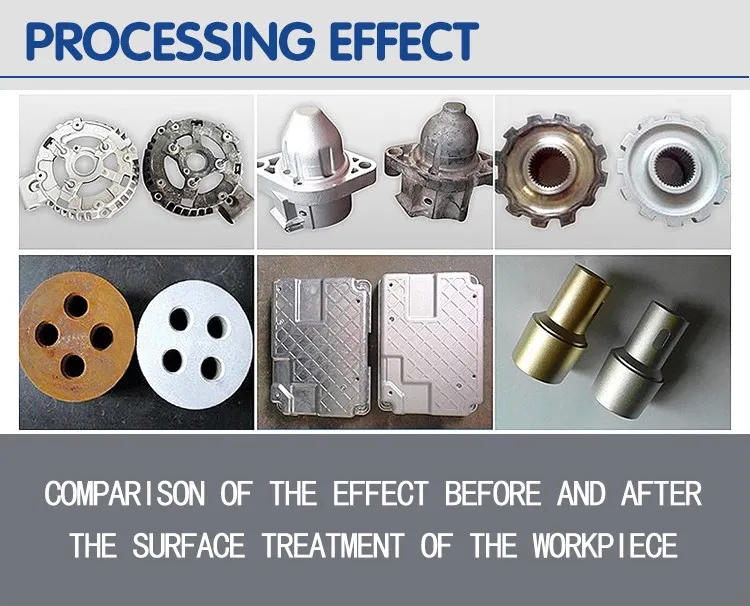

Shot Blasting Equipment 2
Shot Blasting Equipment 3

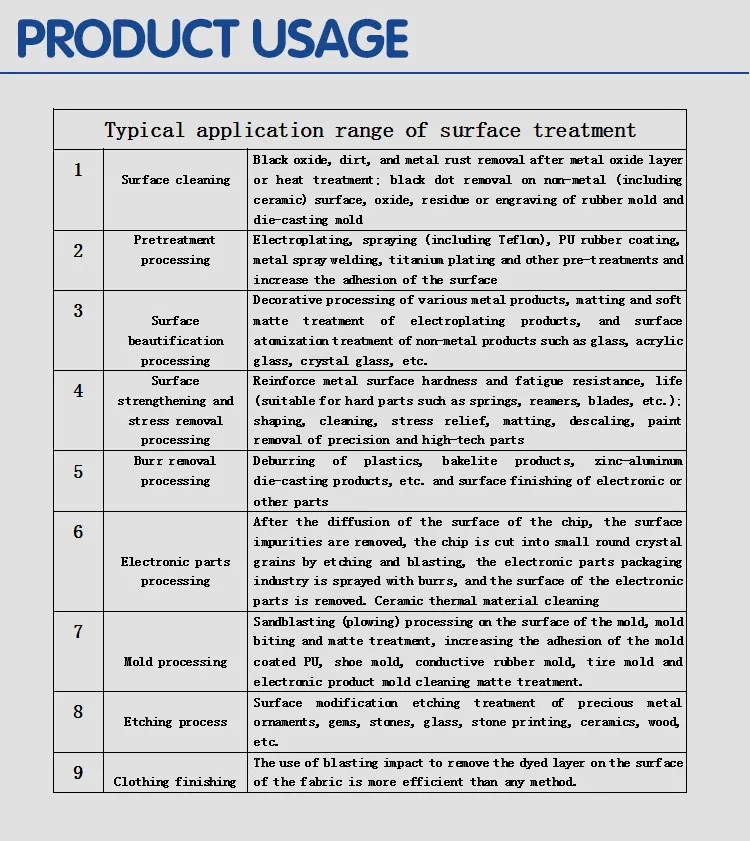

Shot Blasting Equipment 4
Shot Blasting Equipment 5
Shot Blasting Equipment 6
Frequently Asked Questions
What is the regular packaging for the equipment?
We use professional wooden packages for standard components and specialized membrane packaging for large-scale equipment to ensure safety during transit.
How do I proceed with an order for these products?
Firstly, share your requirements or application. Secondly, we provide a quote based on your needs. Thirdly, once confirmed, a deposit is placed for the formal order, and production is arranged.
Can you provide custom designs for specific needs?
Yes, our professional engineering team has rich experience in shot blasting machine design. We can customize solutions based on your specific industrial ideas and requirements.
What is the Minimum Order Quantity (MOQ)?
MOQ requirements vary depending on the specific product model. Please reach out to our team for detailed information regarding your chosen equipment.
How is the quality of the products guaranteed?
High quality is our priority. All products undergo rigorous testing and quality checks before delivery to ensure they meet performance standards.
Is the machine compliant with environmental standards?
Yes, our machines feature two-stage dust removal systems that ensure dust emissions are completely filtered and compliant with protection standards.
