Blatrixo Machine
Blatrixo Machine

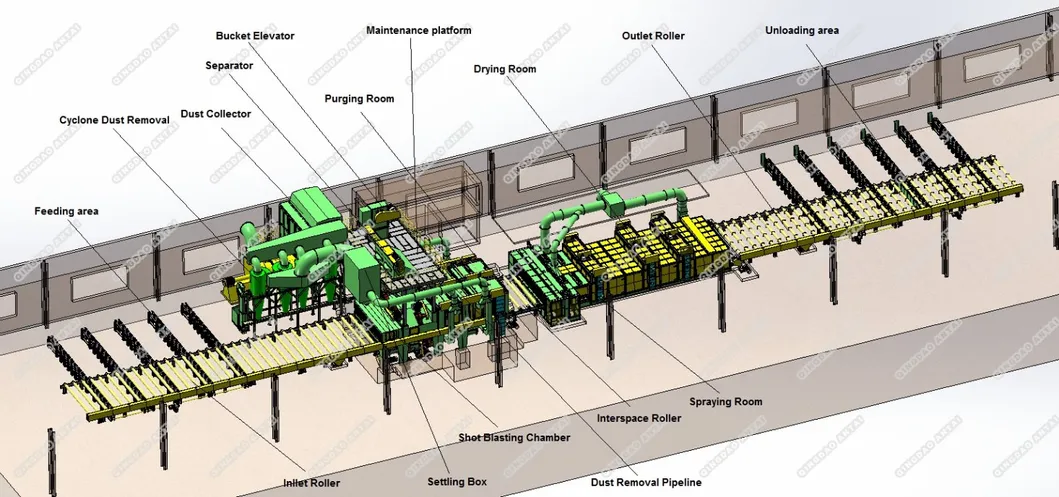

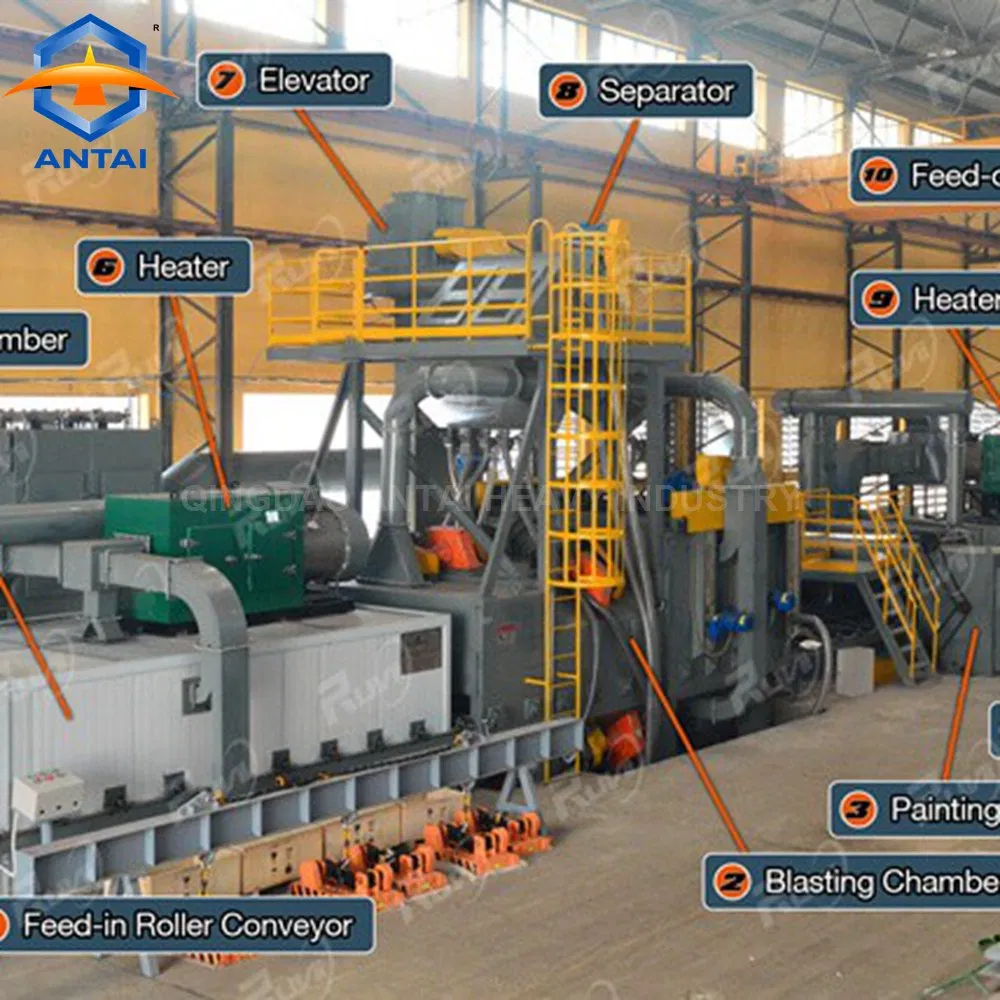

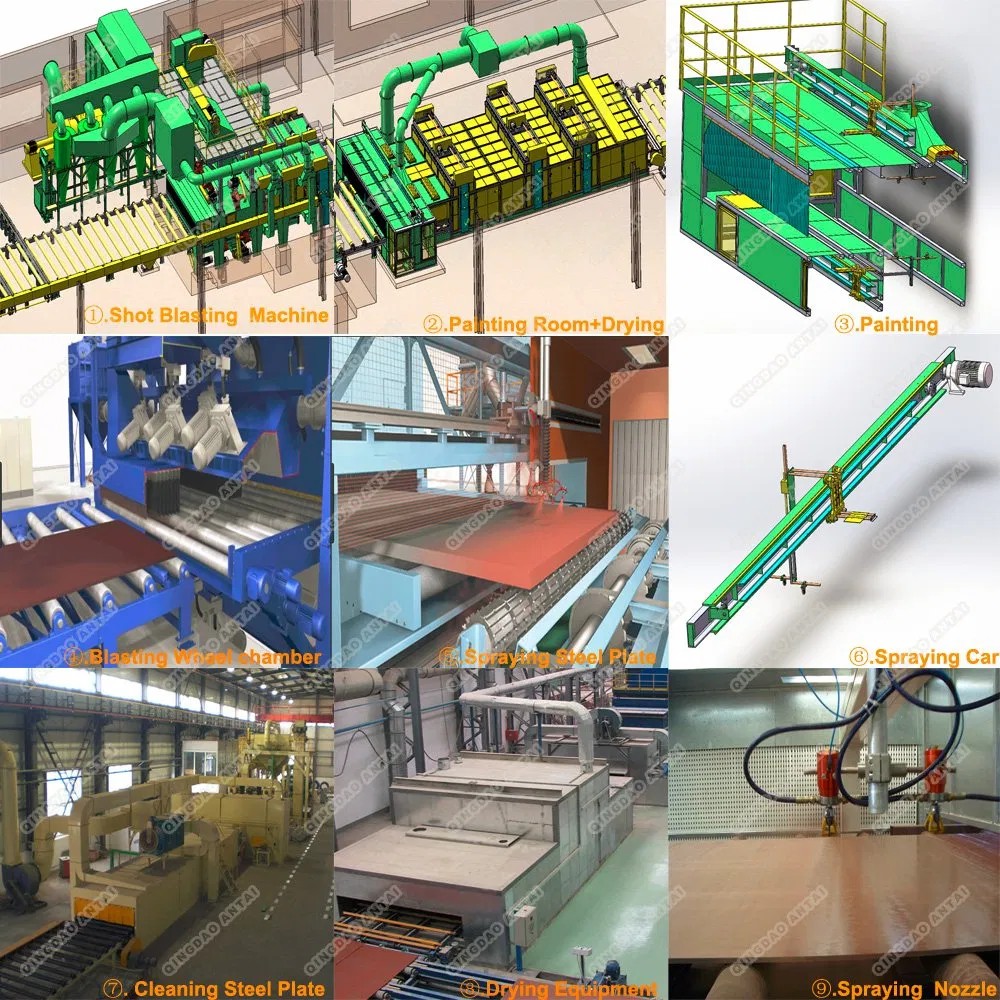

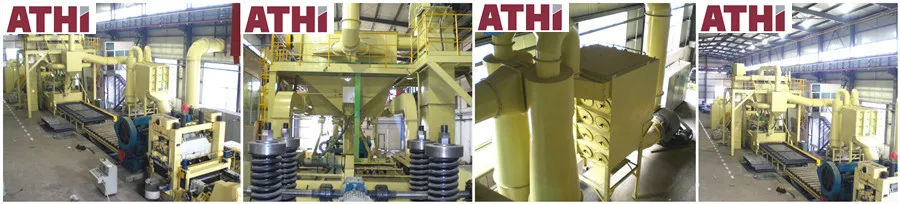

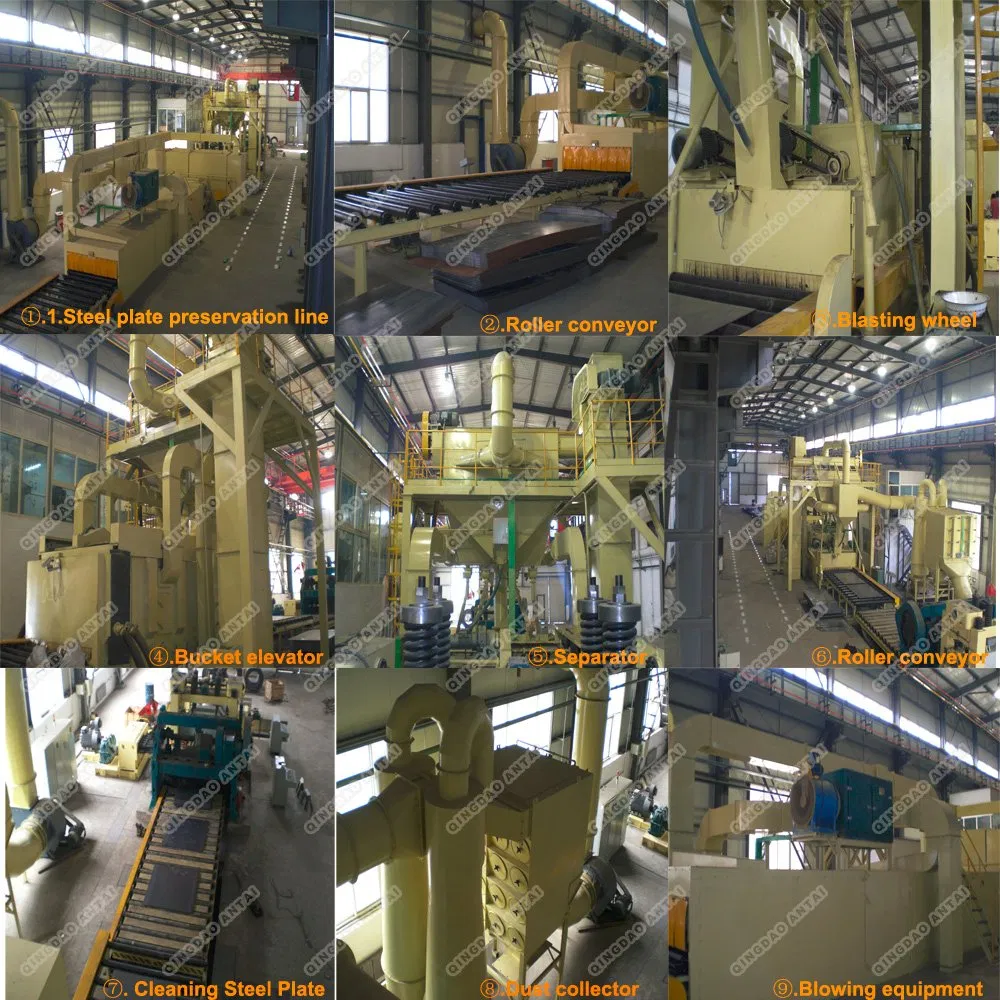

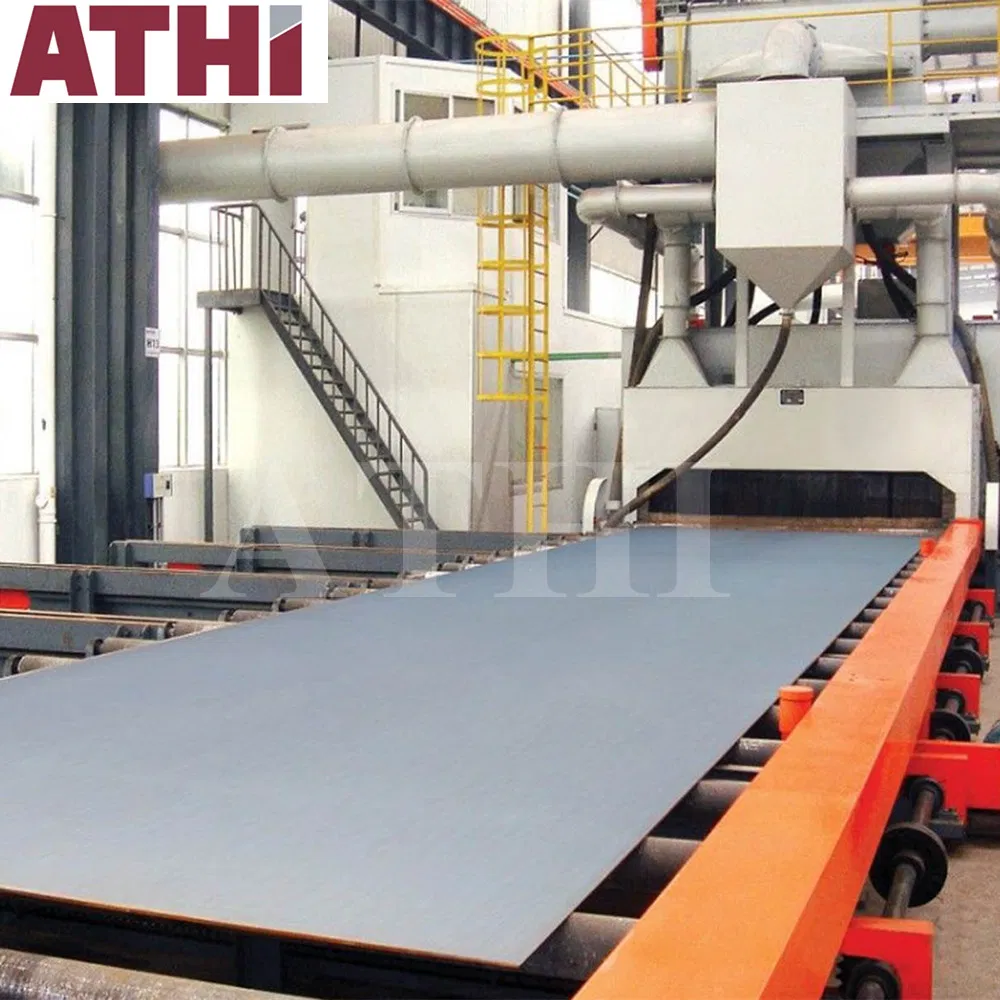

This type of steel plate auto blasting and coating machine is designed and produced by adopting the advantages of similar products from both within the country and abroad. The rusting cleaning part (shot blast cleaning) adopts high-efficient blast wheel and full shutter type shot sand separator. The sweeping machine adopts specially made high-strength nylon rolling brush and high-pressure ventilator.

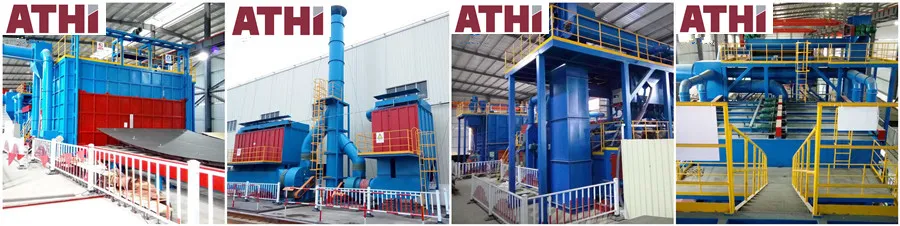

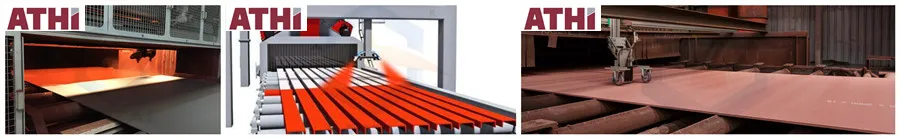

The preheating and drying part may adopt various heating methods. The paint spraying part adopts high-pressure airless spraying method. The complete set of equipment is controlled by PLC, and is the large-size complete equipment of international advanced standards.

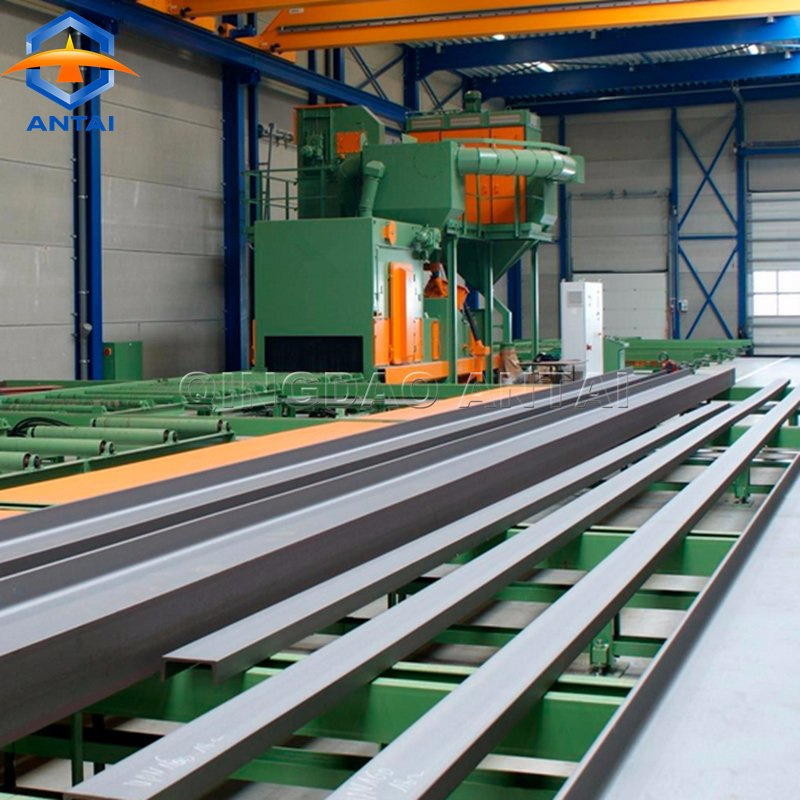

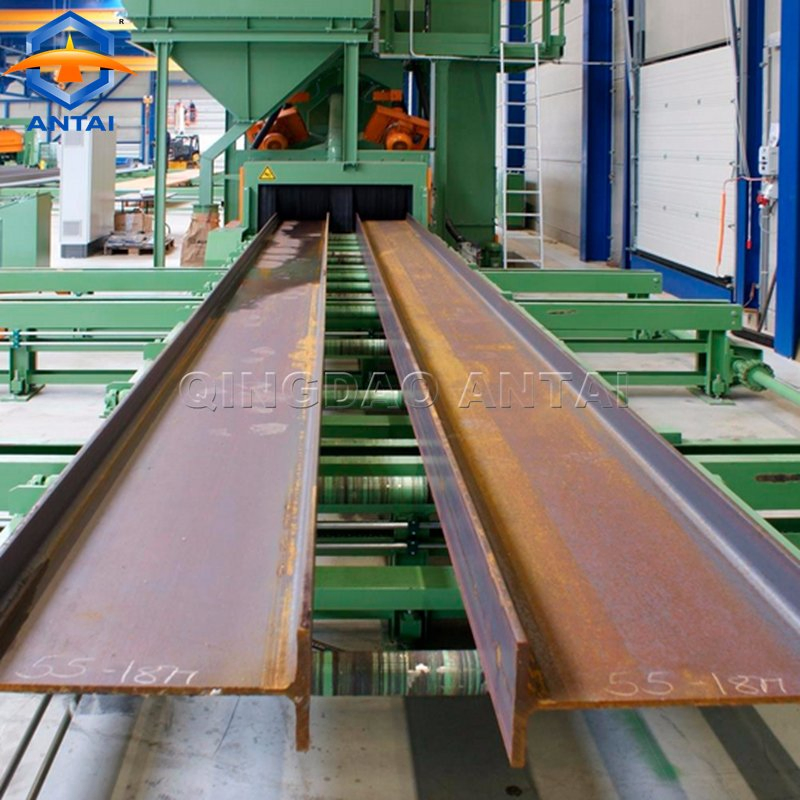

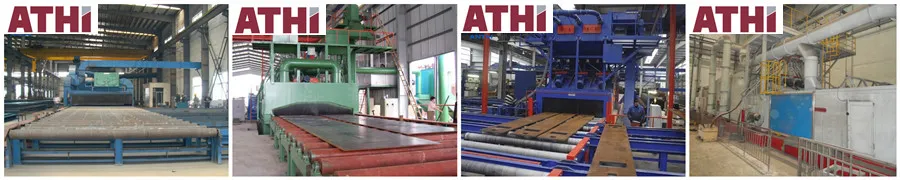

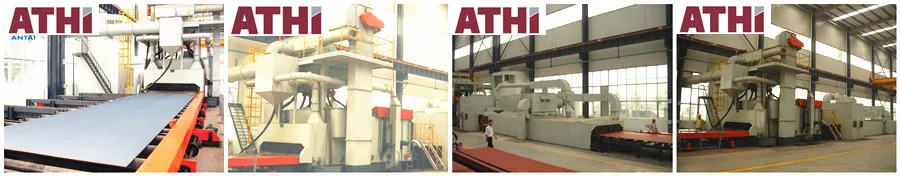

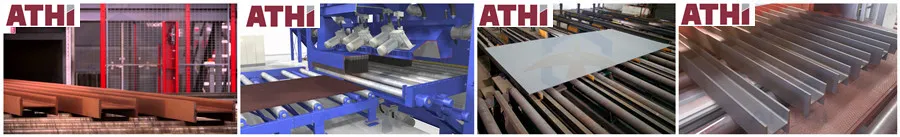

This shot blasting machine and painting line is mainly used for surface treatment (namely preheating, rust removal, paint spraying and drying) of steel plate and various structural sections, as well as for cleaning and strengthening of metal structural parts. It is widely used in Shipyards, ship building industry, and machinery industries.
| Model | QXY1500 | QXY2000 | QXY2500 | QXY3000 | QXY3500 | QXY4000 | ||
|---|---|---|---|---|---|---|---|---|
| Steel plate | Width (mm) | 500-1500 | 1000-2000 | 1000-2500 | 1000-3000 | 1000-3500 | 1000-4000 | |
| Thickness (mm) | 3-20 | 3-60 | 5-30 | 3-60 | 5-35 | 5-50 | ||
| Length (mm) | 2000-12000 | 1500-12000 | 2000-12000 | 2400-12000 | 2000-12000 | 2400-16000 | ||
| Structure parts | Max. width (mm) | 1600 | 800 | 2500 | 1500 | 3500 | 4000 | |
| Max. height (mm) | 500 | 300 | 400 | 800 | 400 | 500 | ||
| Max. length (mm) | 2000-12000 | 2400-12000 | 2000-12000 | 2400-12000 | 2000-12000 | 2400-16000 | ||

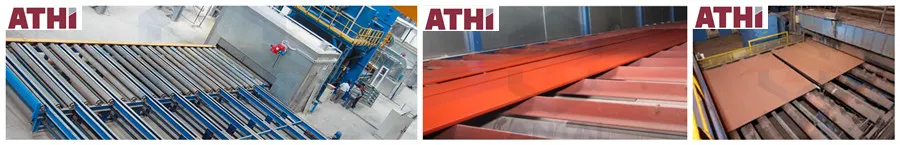

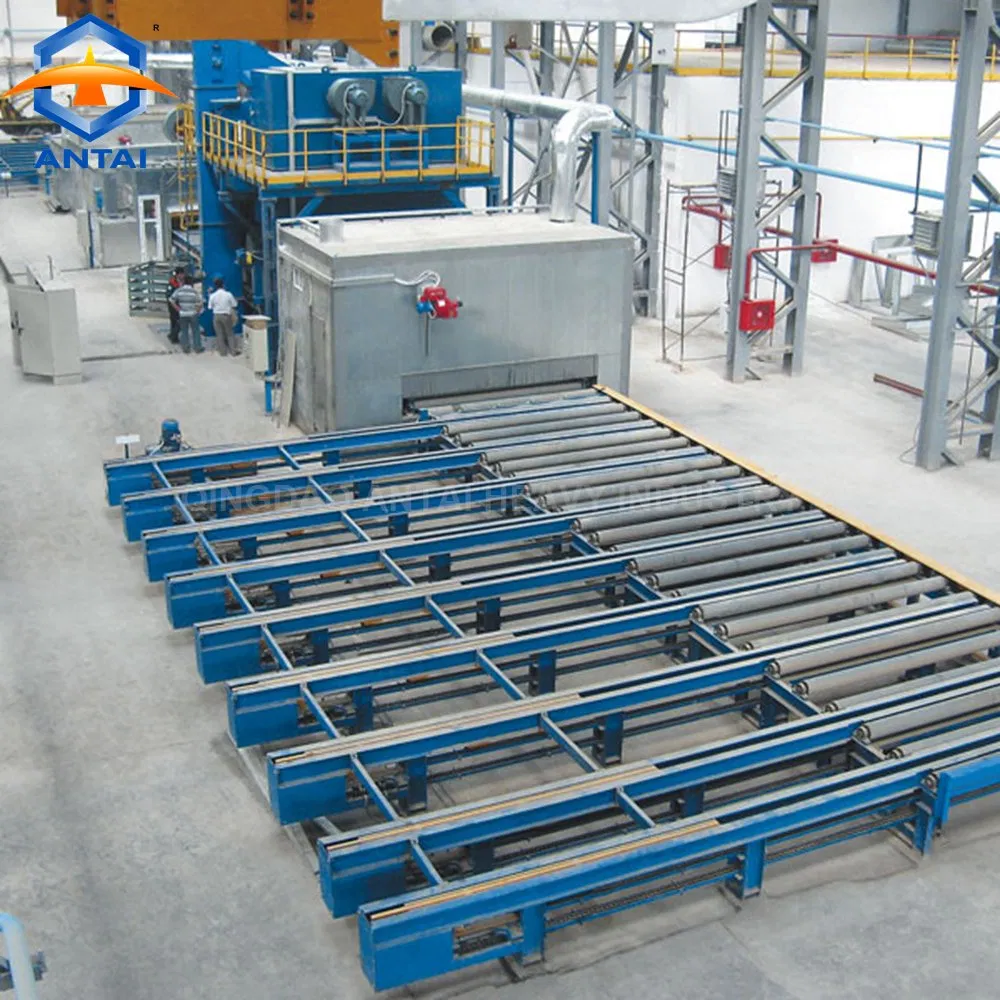

| Roller conveyor | Permissible load (t) | 1 | 1 | 1.5 | 2 | 2 | 2 | |
| Speed (m/min) | 2-4 | 1-5 | 2-4 | 0.5-4 | 2-4 | 2-4 | ||
| Total power (kW) | 450 | 413.2 | 550 | 614 | 560 | 600 | ||
