Blatrixo Machine
Blatrixo Machine

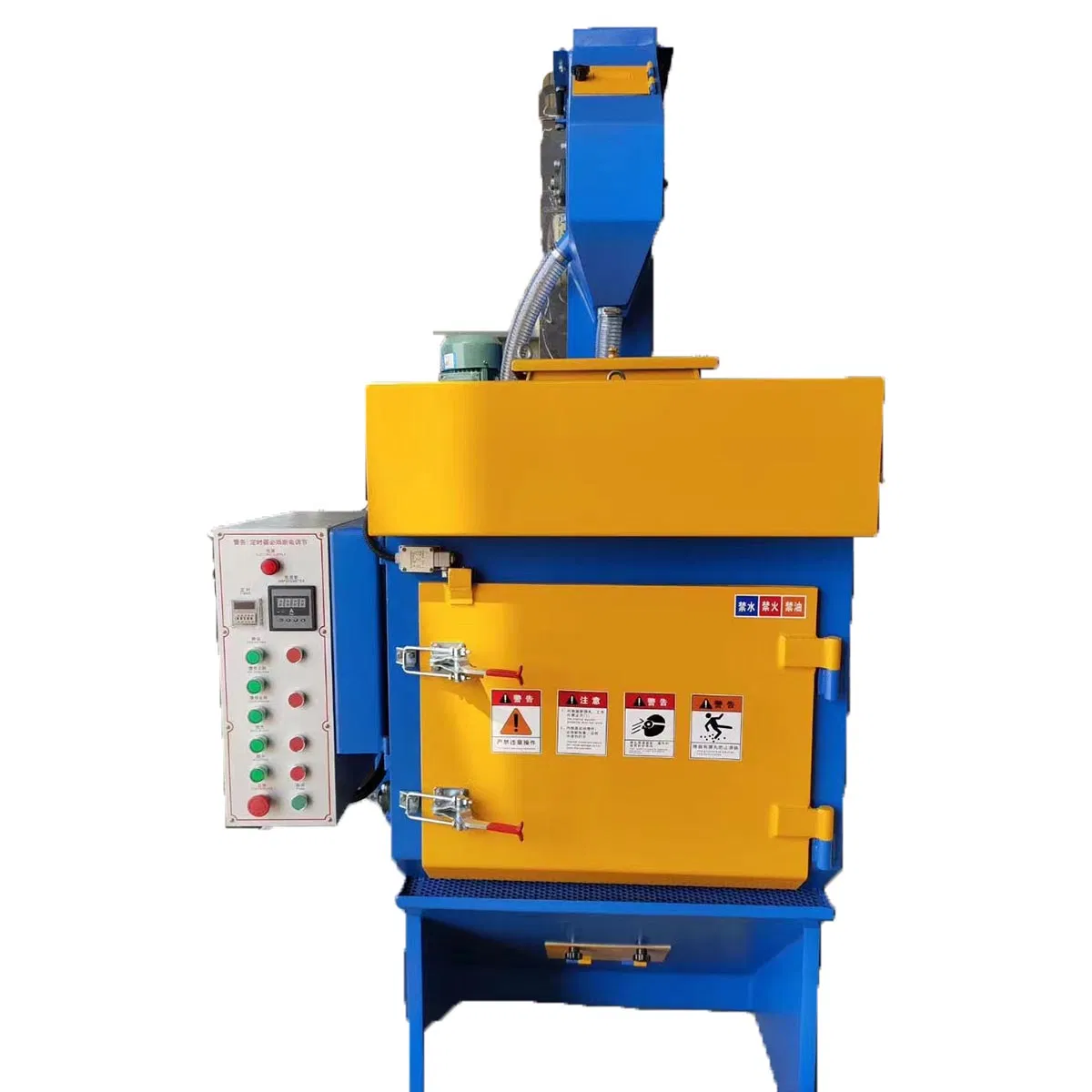

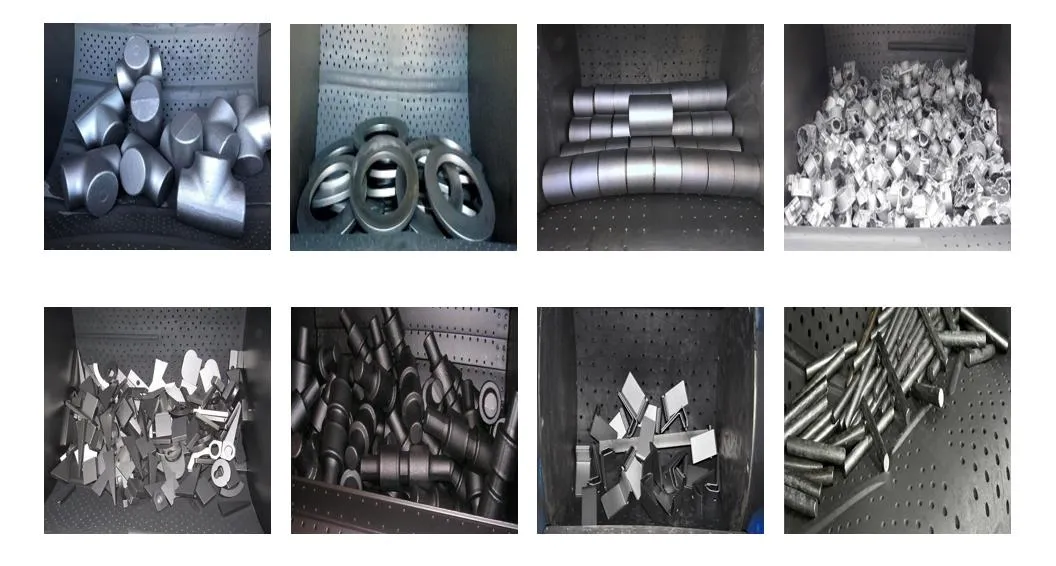

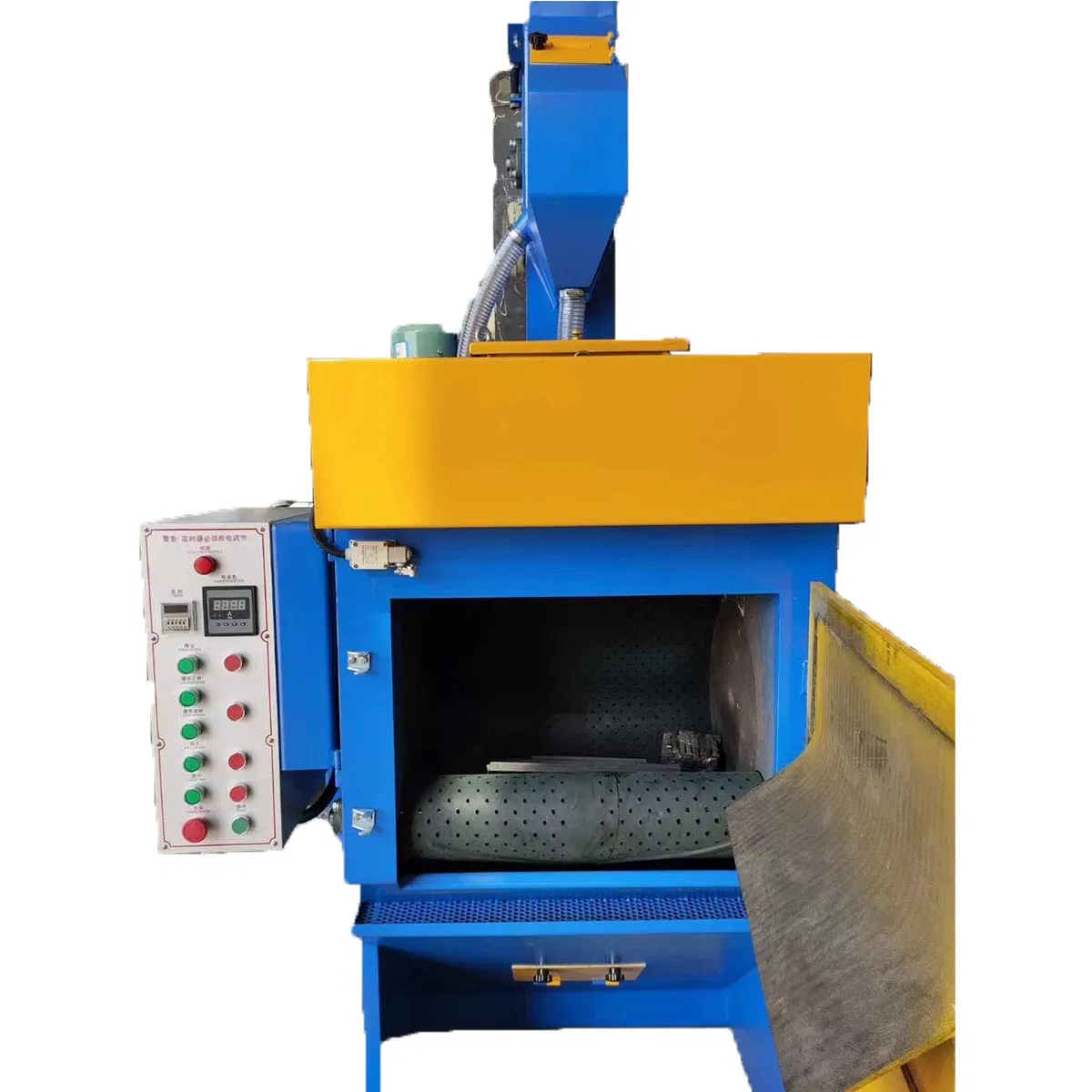

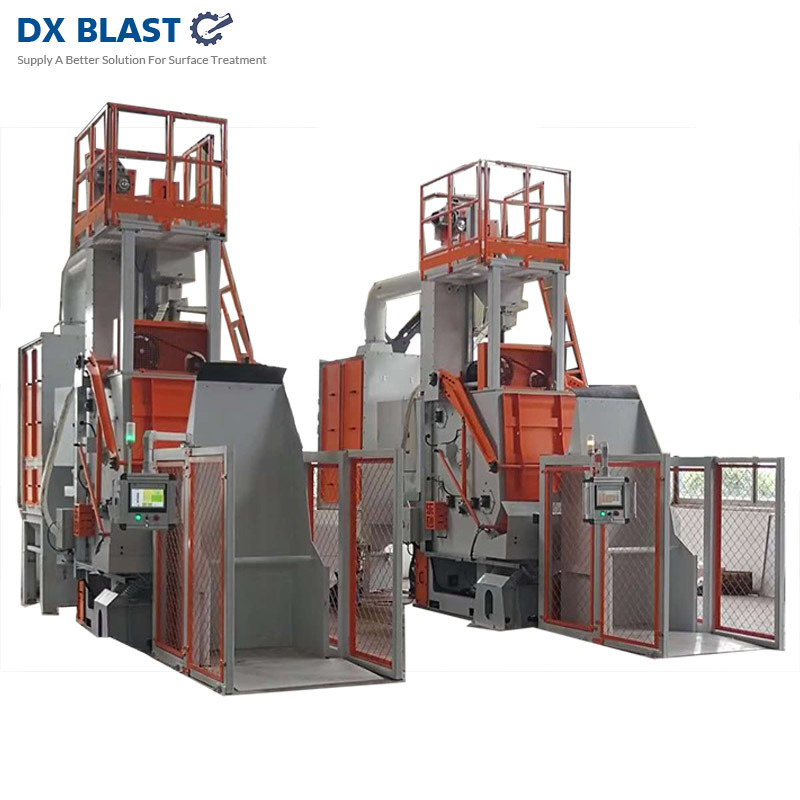

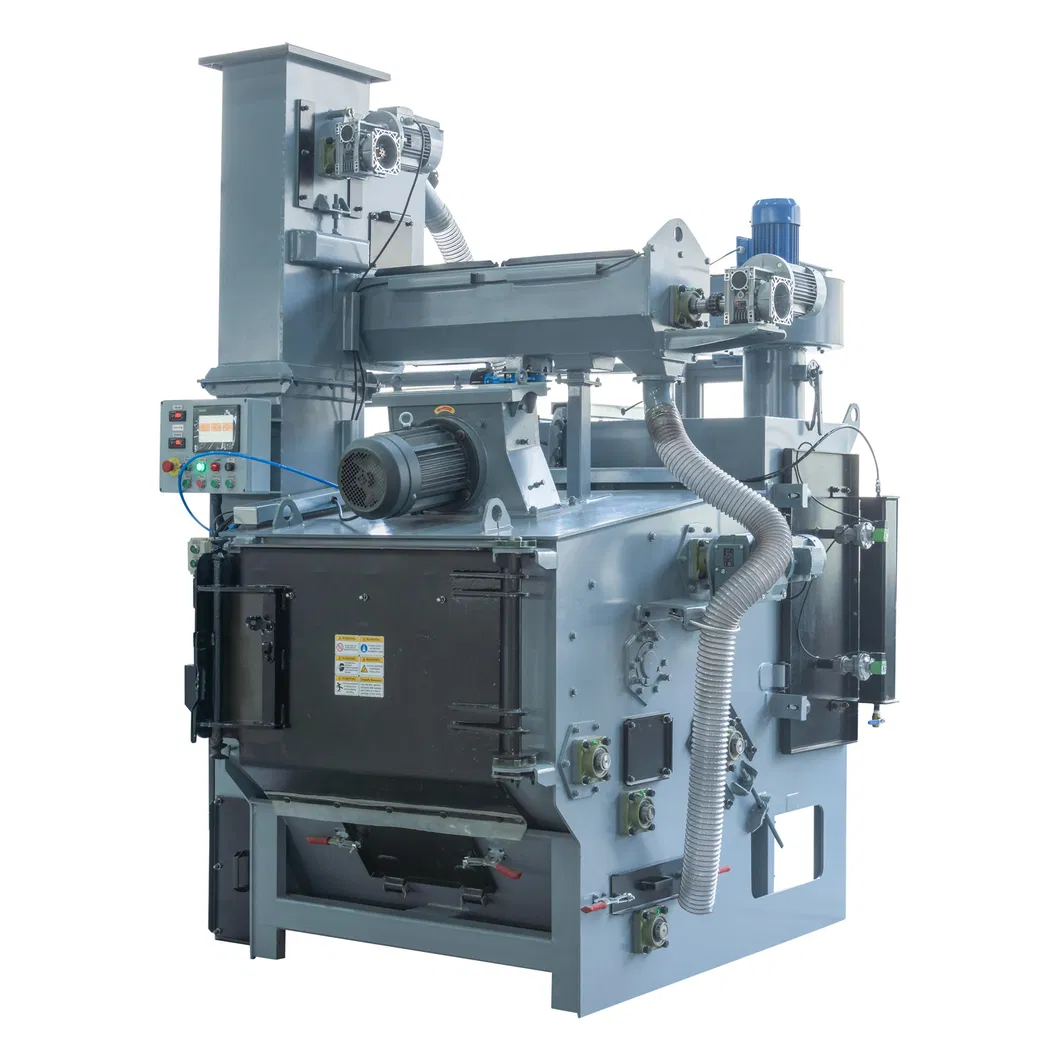

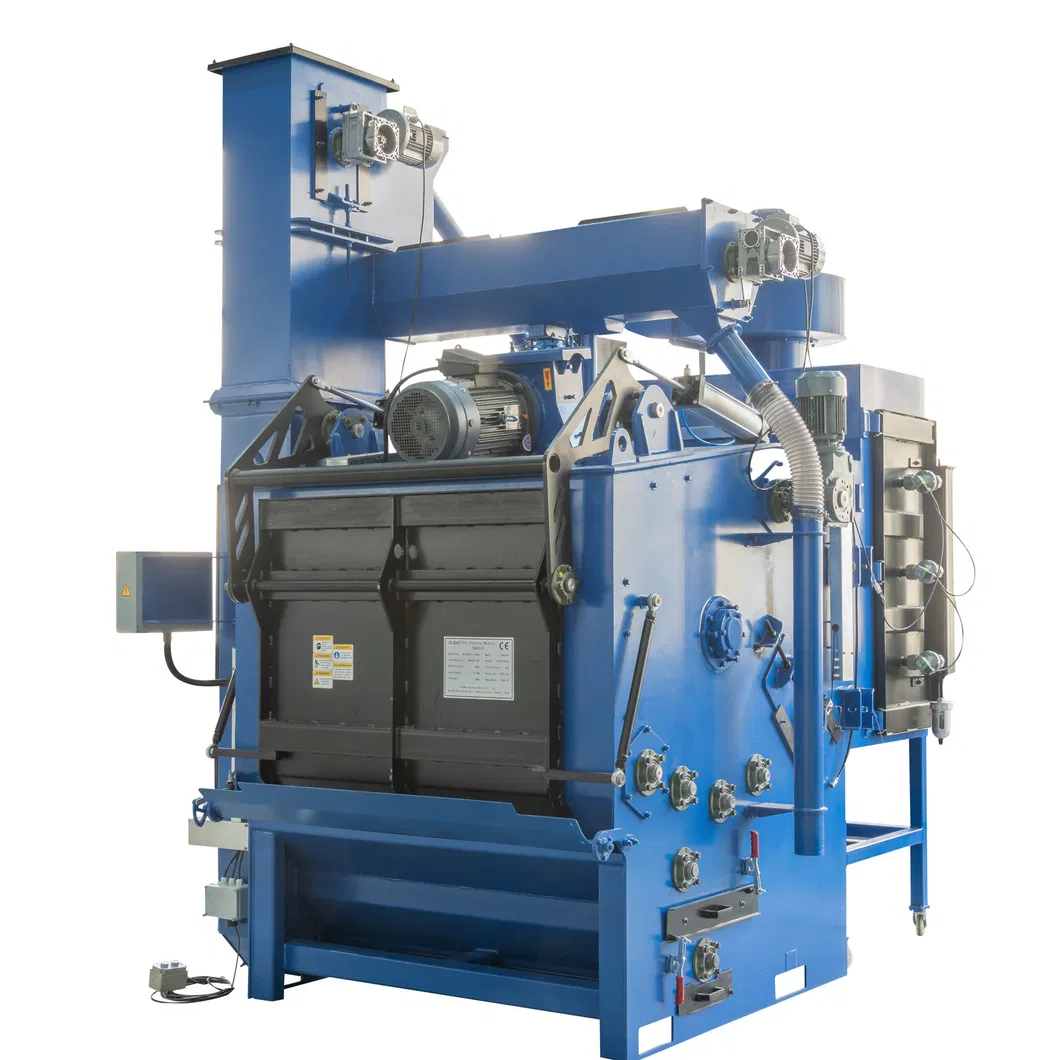

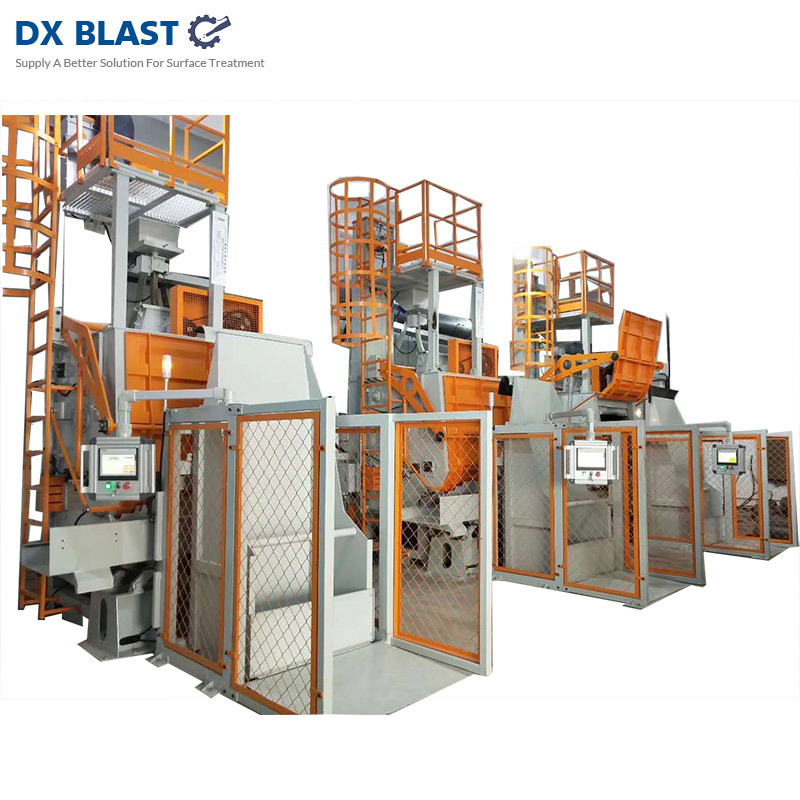

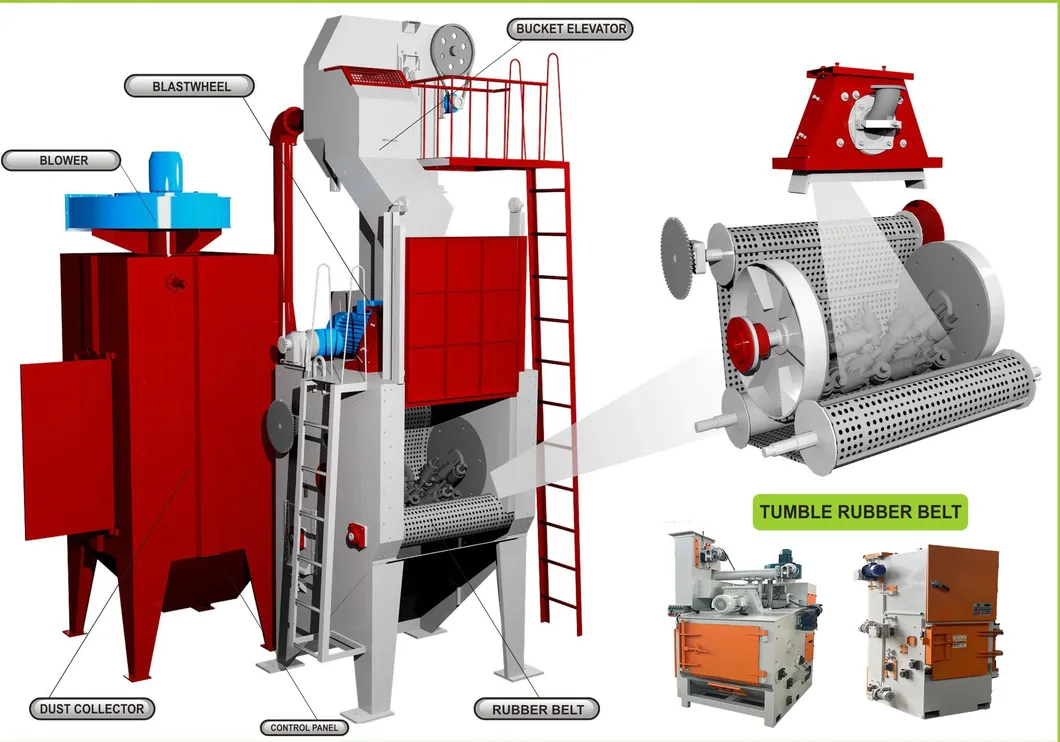

The rubber tumblast shot blast machines are the ideal way to clean and finish batches of components such as castings and small fabrications. It is No-Pit, easy for installation and operation. All models are self-contained and include abrasive reclaim systems, separator and dust collector.
| Model Details | 324 | 326 | 3210 |
|---|---|---|---|
| MAX. Loading Weight | 80KG | 200kg | 500kg |
| MAX. Worksize weight | 5kg | 10kg | 25kg |
| End Disk Diameter | φ400mm | φ600mm | φ1000mm |
| End Disk Rotation | 3.6rpm | 3.6rpm | 3.6rpm |
| Production Capacity | 250-400kg/h | 600-1200kg/h | 2000-2800kg/h |
| Blast Wheel Power | 4kw | 7.5KW | 11KW |
| Total Power | 7KW | 12.7kw | 23kw |
Note: Our machines are divided into standard machines and customized models. We can customize any kind of shot blasting machine according to your detailed requests.
