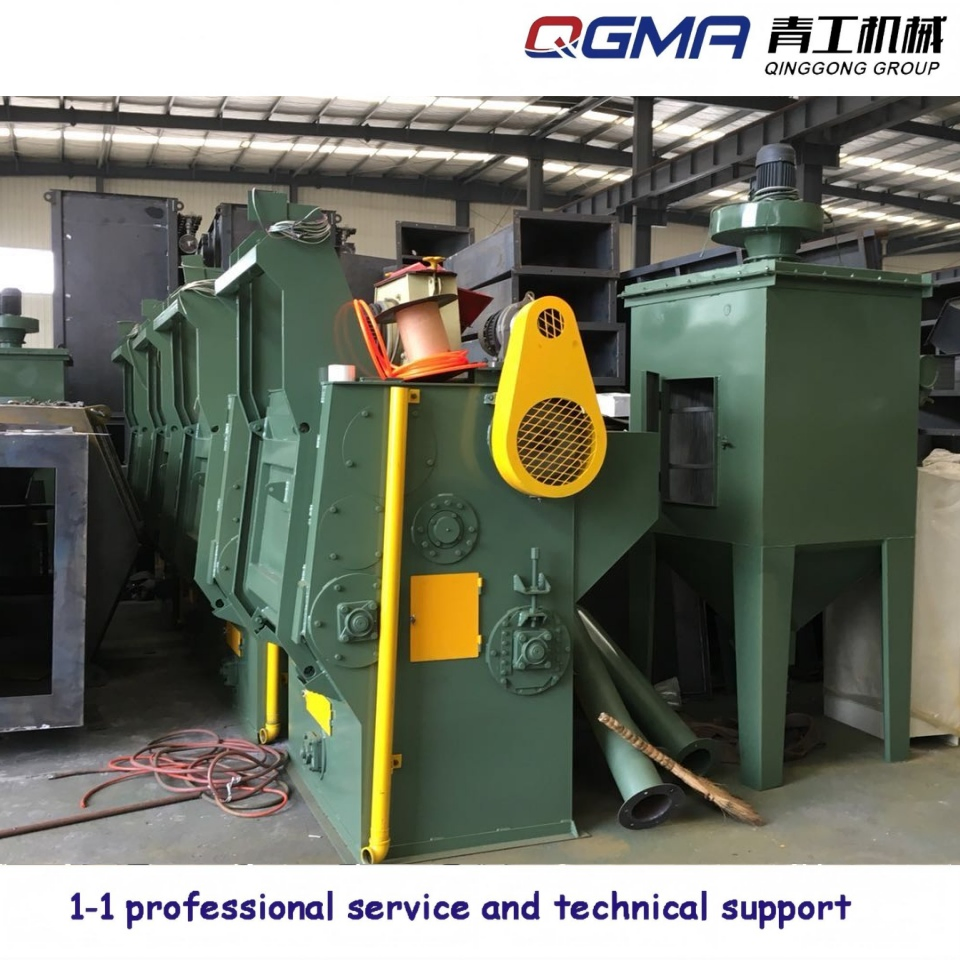

Tumble Shot Blast Blasting Cleaning Equipment Tumble Rubber Belt Shot Blast Machine
Tumble Shot Blast Blasting Cleaning Equipment Tumble Rubber Belt Shot Blast Machine
Tumble Shot Blast Blasting Cleaning Equipment Tumble Rubber Belt Shot Blast Machine
Tumble Shot Blast Blasting Cleaning Equipment Tumble Rubber Belt Shot Blast Machine
Tumble Shot Blast Blasting Cleaning Equipment Tumble Rubber Belt Shot Blast Machine
1 / 5
Tumble Shot Blast Blasting Cleaning Equipment Tumble Rubber Belt Shot Blast Machine
Tumble Shot Blast Blasting Cleaning Equipment Tumble Rubber Belt Shot Blast Machine
Tumble Shot Blast Blasting Cleaning Equipment Tumble Rubber Belt Shot Blast Machine
Tumble Shot Blast Blasting Cleaning Equipment Tumble Rubber Belt Shot Blast Machine
Tumble Shot Blast Blasting Cleaning Equipment Tumble Rubber Belt Shot Blast Machine

Tumble Shot Blast Blasting Cleaning Equipment Tumble Rubber Belt Shot Blast Machine

Customization: Available
After-sales Service: Provided
Warranty: 1year
Send Inquiry

Product Description

BASIC INFORMATION
Model NO.
Q32
Application
Machinery, Auto Industry
Fuel
Electric
Type
Tumble Rubber Belt Shot Blast Machine
Cleanliness
High Cleanliness
Automation
Automatic
Certification
CE, ISO9001
Feature
Critical Cleaning / Residue Free
Motor Brand
Siemens
PLC
Siemens or Omron
Dust Collector
Advanced Cartridge Filter
Blasting Media
Steel Shots
PRODUCT DESCRIPTION
Tumble Shot Blast Blasting Cleaning Equipment Tumble Rubber Belt Shot Blast Machine

Tumbling belt shot blasting machine is used for surface cleaning, rust removing, and product intensifying for all kinds of medium and small castings, forgings, and machinings. It is suitable for different process scales and can work with single or medium and small-sized workpieces. The series has advantages of advanced design, reasonable structure, low energy consumption, and high efficiency.
  • Workpiece: Casting, forging, weldment parts, etc.
  • Transportation system: Wear-resistant rubber or steel conveyor. Belt type depends on temperature and size.
  • Process volume: 20-1000kg
  • Blast turbine: 1-2 units, Power: 7.5-18.5kw
  • Cleaning time: 5-10 mins
  • Intelligent abrasive dosing: Service time max 20% longer, energy saved max 30%.

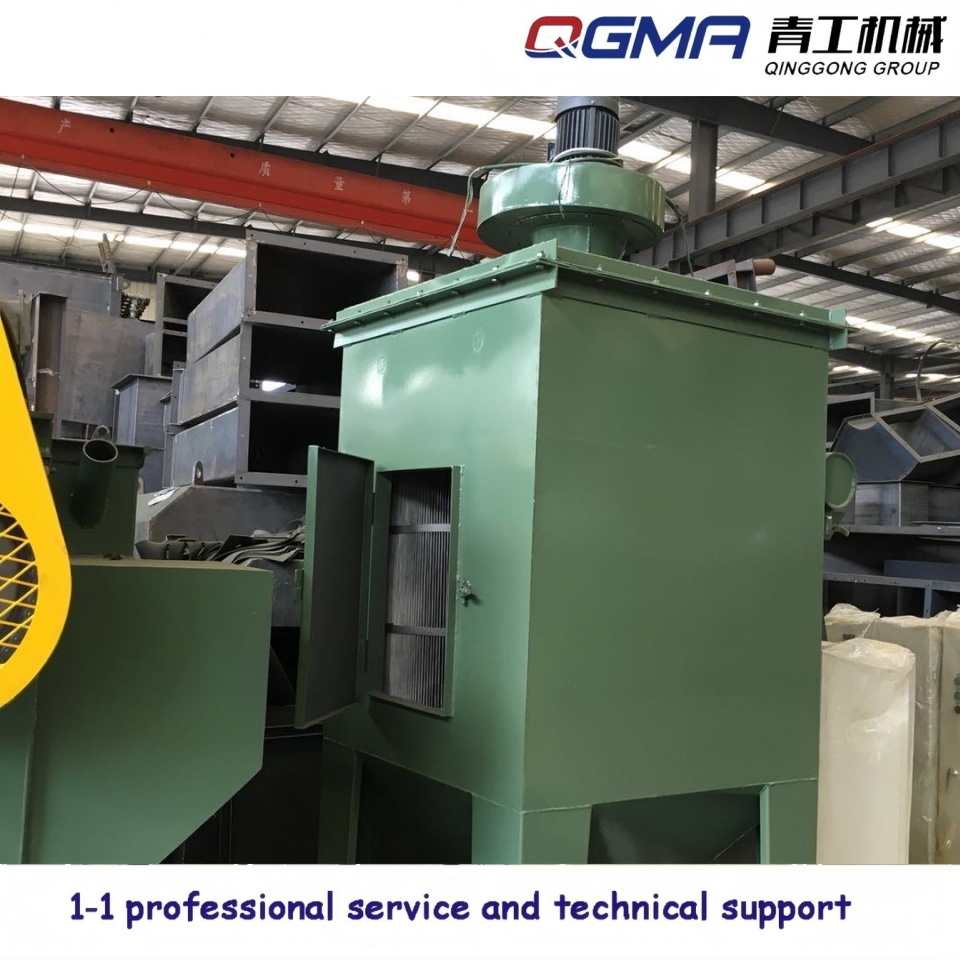

  • Dust collector: Settling chamber + cartridge-type dust collector (5 years service time).
  • Separator: Abrasive-dust separation efficiency: 99%.
  • Function: Remove rust, scale, sand, burrs; Finished rust removal grade: SA2.5-3.0.

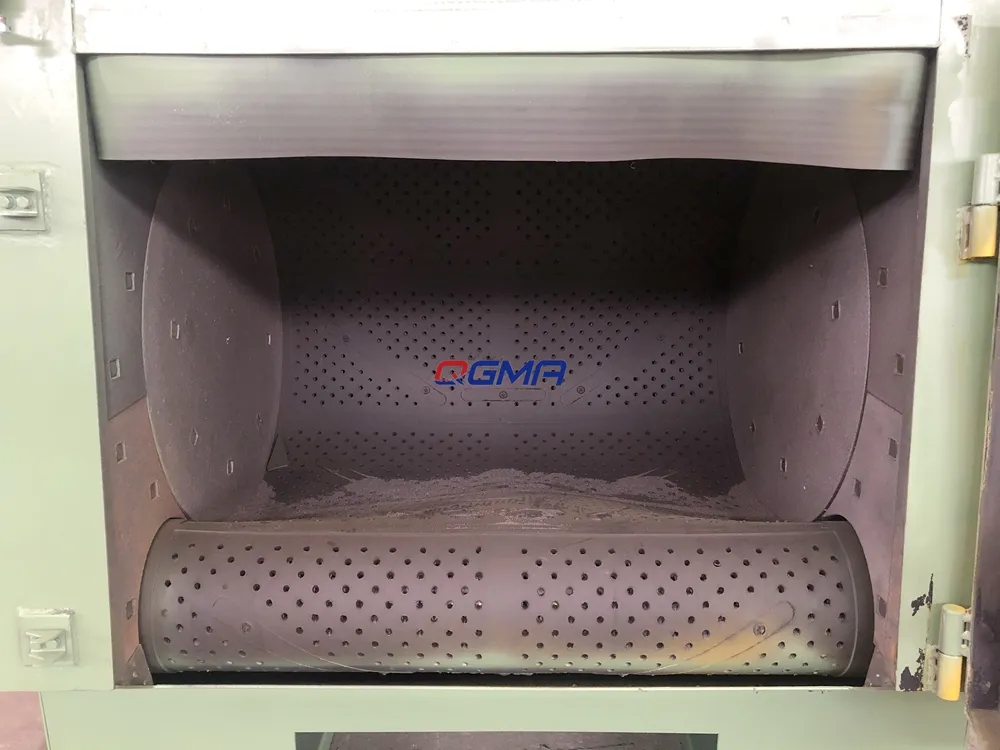

Equipment 1

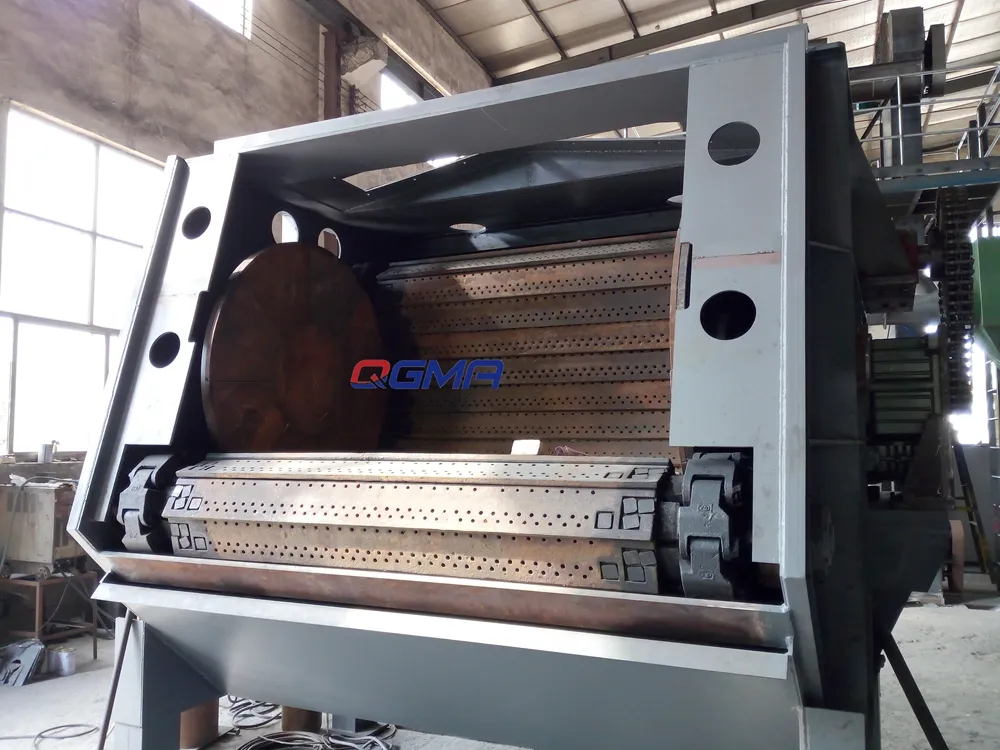

Equipment 2

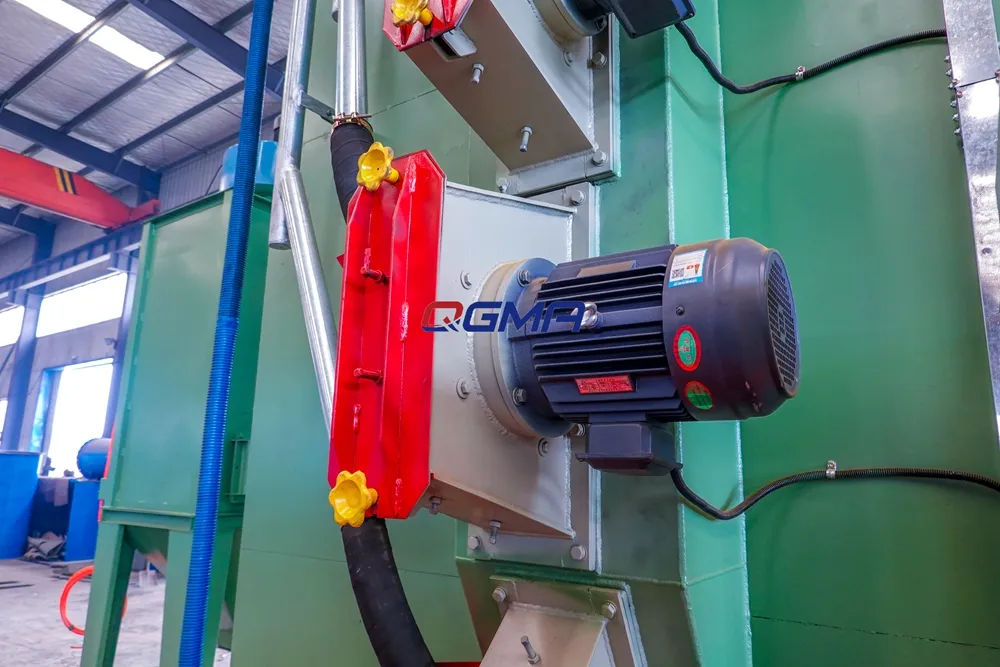

Equipment 3
PRODUCT PARAMETERS
Model QG326C QG3210
Productivity (t/h)0.6-1.21.5-2.5
Feeding amount (kg)200600
Max. Weight of single piece (kg)1030
Diameter of desk (mm)6501000
Effective volume (m³)0.150.3
Abrasive flow rate (kg/min)125250
Ventilation capacity (m³/h)22005000
DETAILED PHOTOS & EFFECTS
Detail 1

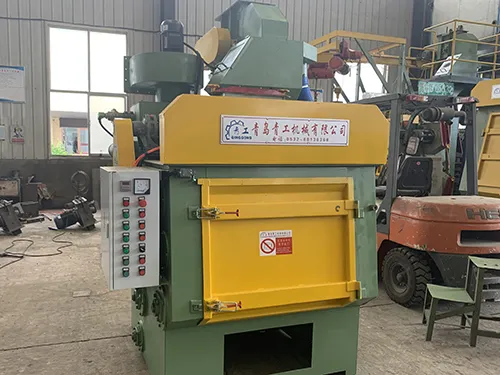

Detail 2

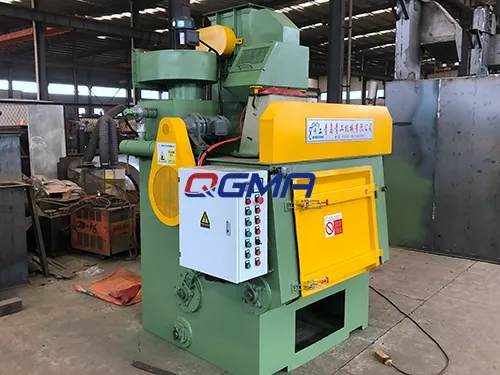

Detail 3

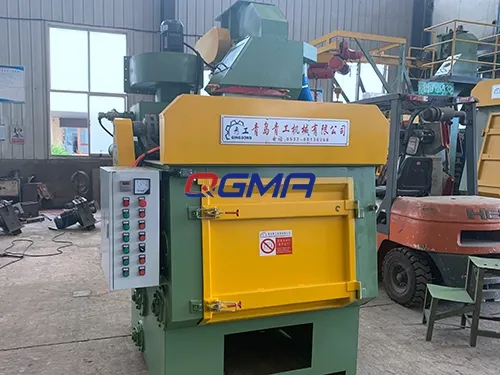

Detail 4

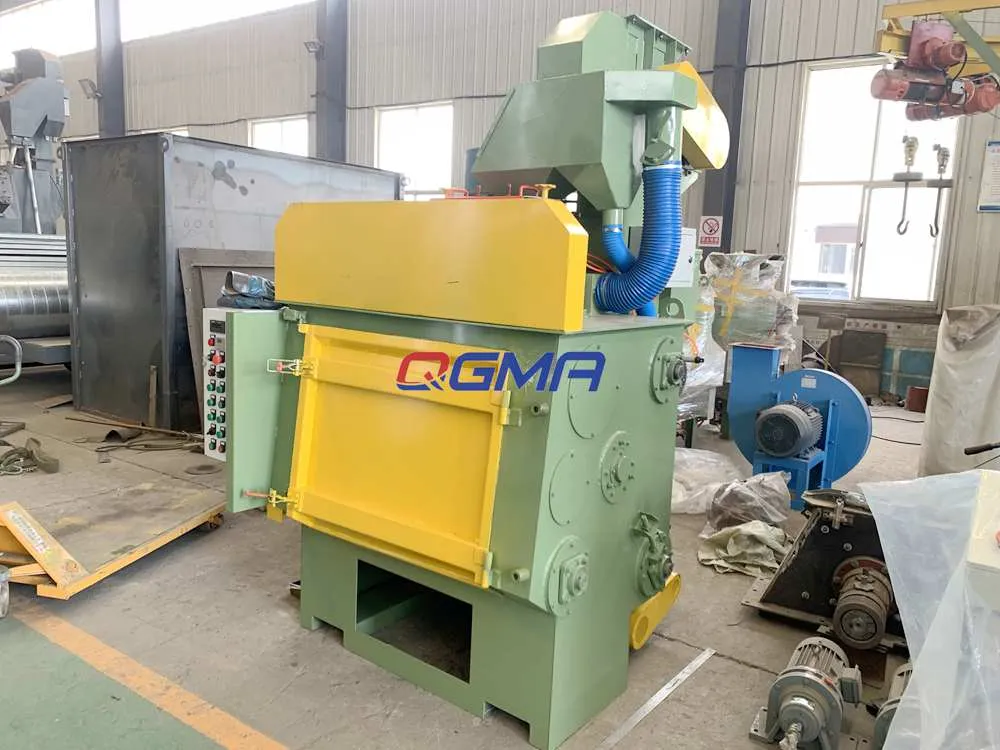

Detail 5

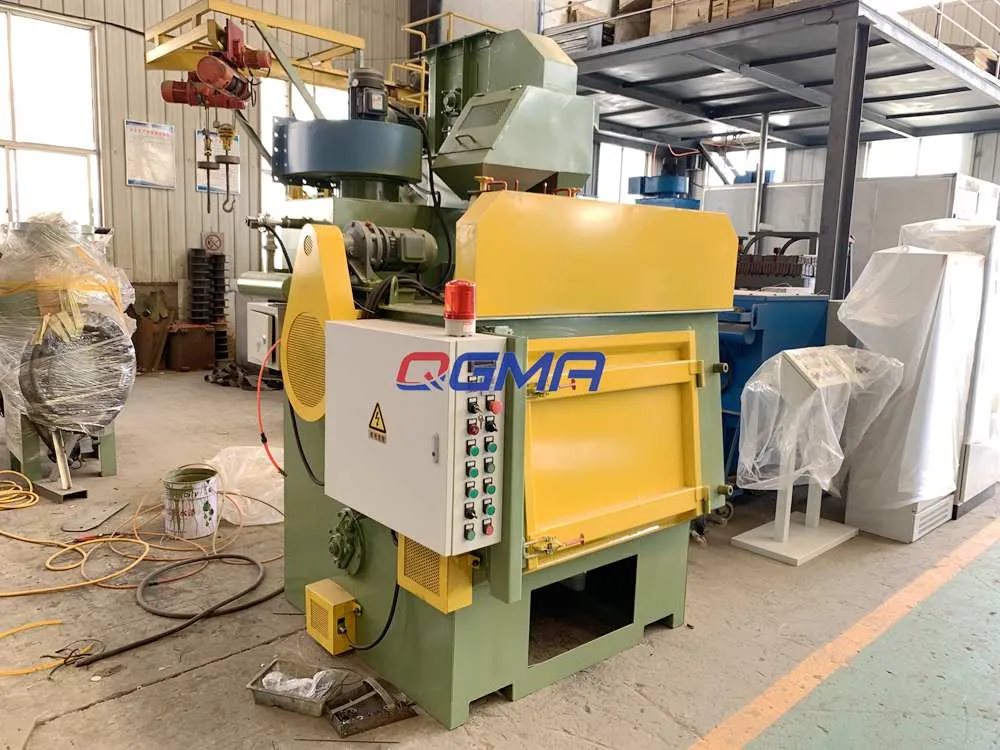

Detail 6
Cleaning Effects comparison:

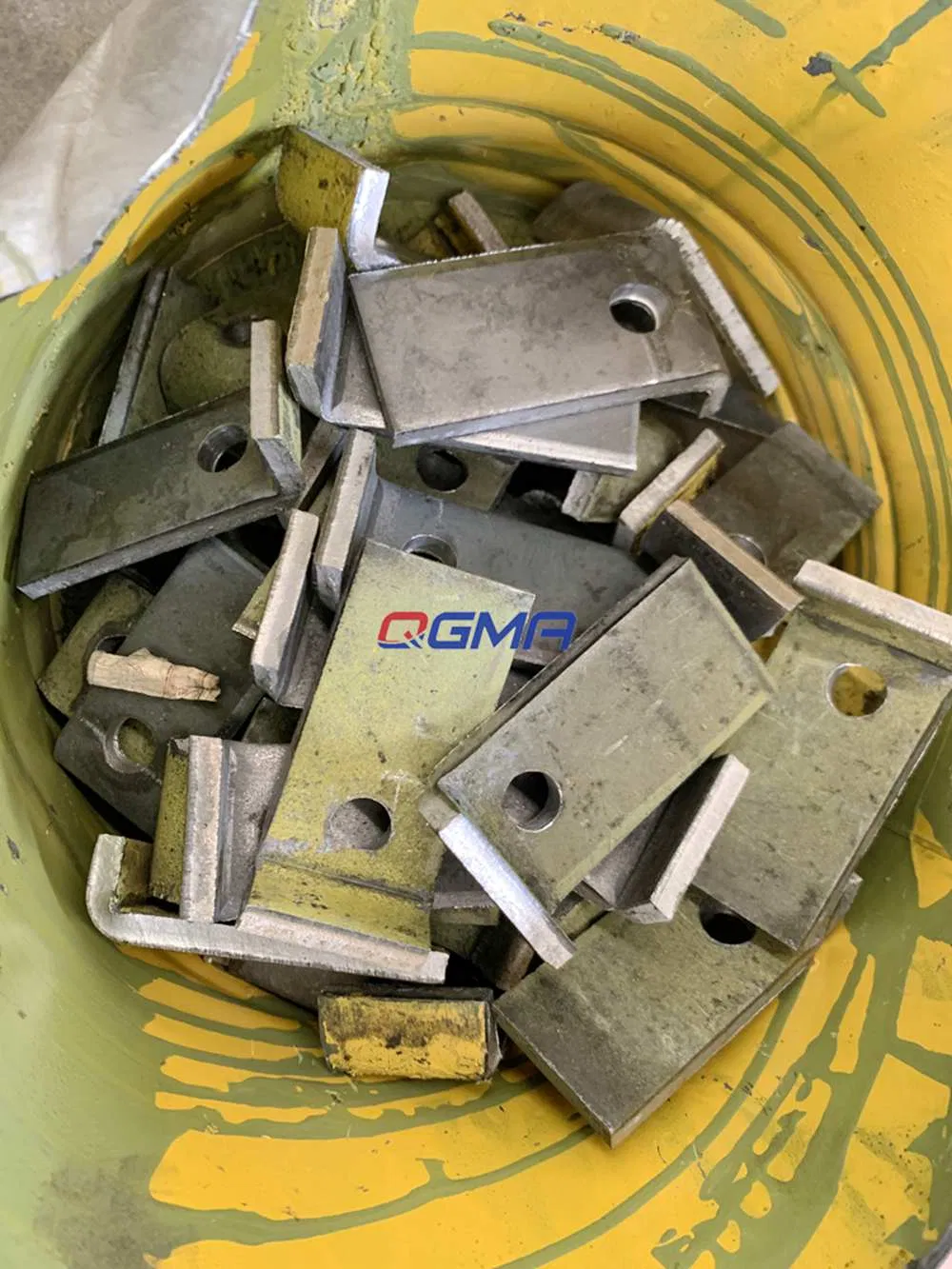

Effect 1

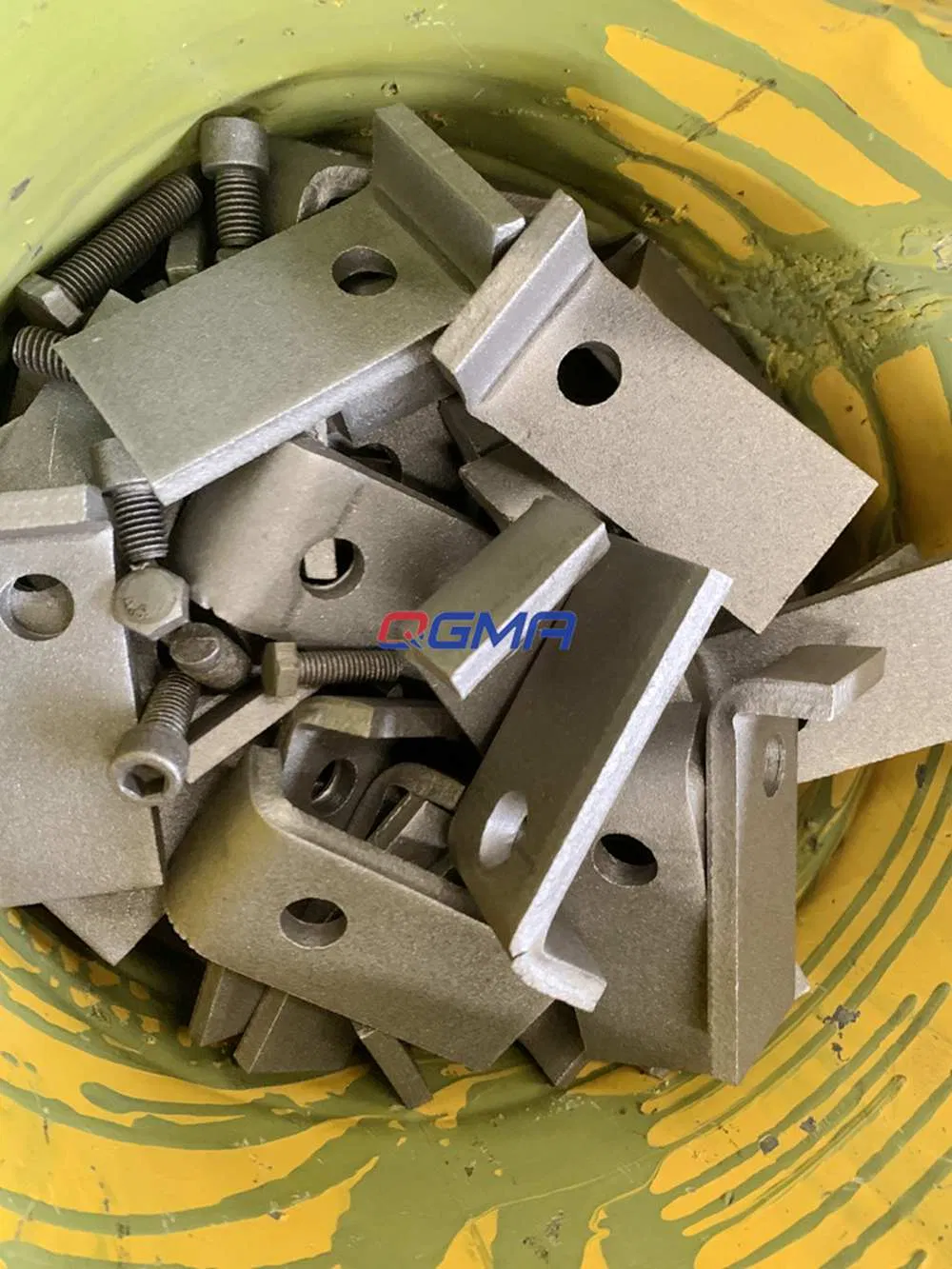

Effect 2
PACKAGING & AFTER-SALES SERVICE
Packaging
After Sales
COMPANY PROFILE

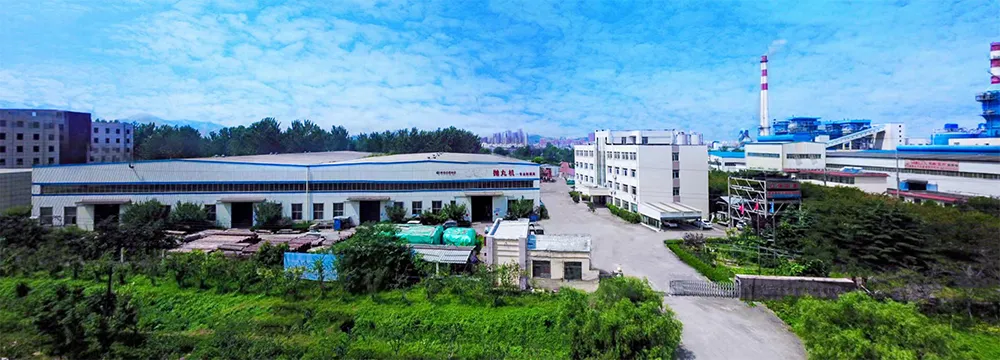

Factory
With 48 years of experience in innovating and producing, our team is a professional manufacturer of wheel blast and air blast machines. Since 1975, we have been dedicated to surface treatment solutions. We possess an R&D team with 30 years of expertise and a factory covering 30,000 m². To date, we have produced over 6,000 sets of various machines for customers in more than 50 countries. Our determined and responsible attitude ensures the delivery of superior surface treatment solutions for your industry.
Certifications: Our patented technology and certifications (CE, ISO9001, etc.) guarantee the high quality of our equipment.
Certifications
FREQUENTLY ASKED QUESTIONS
Q: How to choose the correct blast machine type? A: Please provide information regarding your workpiece dimensions and required productivity. Our experienced engineers will suggest the most suitable model for your needs.
Q: How to choose the right abrasive media? A: We offer various types of abrasives including steel shot, cut wire shot, and stainless steel shot in different sizes. The choice depends entirely on the material and required finish of your workpiece.
Q: What is the quality warranty period? A: We provide a 1-year warranty for the whole machine and a 10-year warranty for the blasting chamber structure.
Q: Is a foundation pit essential for installation? A: This depends on the specific machine size and your workshop layout. Some smaller models do not require a pit.
Q: Do you provide installation assistance? A: Yes, we offer 1-on-1 installation assistance and operation training on-site by experienced engineers to ensure smooth deployment.
Q: What is your after-sales service policy? A: We maintain a full stock of spare parts and provide regular after-sales maintenance and support services.
