TUV Authenticated Industrial Shot Blast Machine and Sandblasting Equipment/Hook Type Shot Blasting Machine/Over Head Hanger/Hanger Shot Blast Machine/Sandblast

Customization: Available
After-sales Service: 24/7 on Line
Warranty: 12 Months

Product Description

Basic Specifications
Model NO.
Q376, Q378, Q3710, Q3720, Q3730, Q3750
Application
Foundry, Casting, Weldment Part
Fuel
Electric
Type
Hook Type Abrator
Cleanliness
SA2.5
Automation
Automatic
Certification
TUV, ISO9001, CE
Feature
Clean Rust, Descaling, Removal Internal Stress
Weight Capacity
500kg to 100ton
PLC
Siemens
Delivery Time
15-30 Working Days
Origin
Qingdao China
Product Description

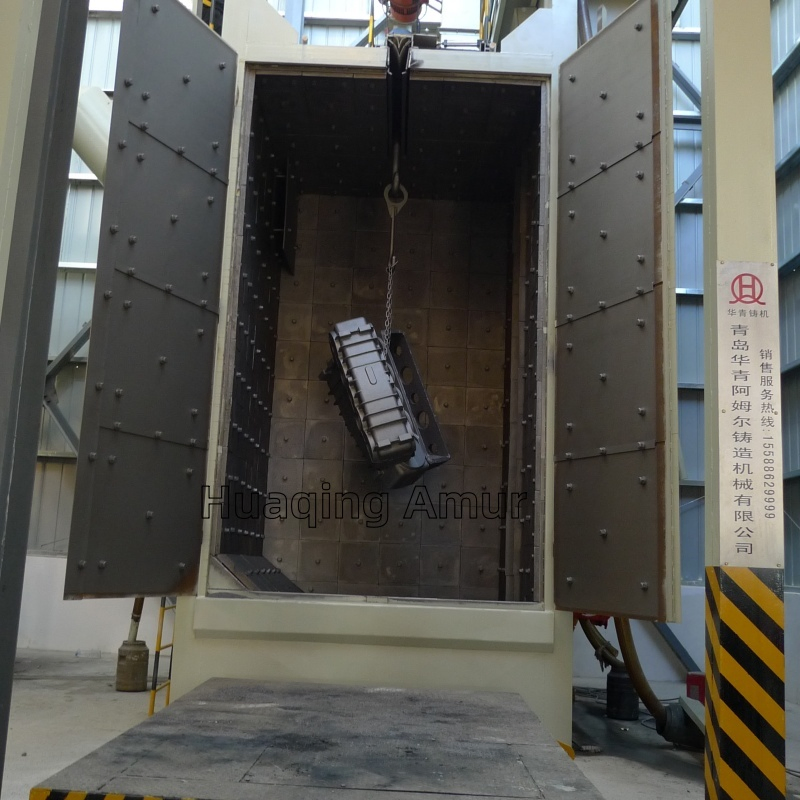

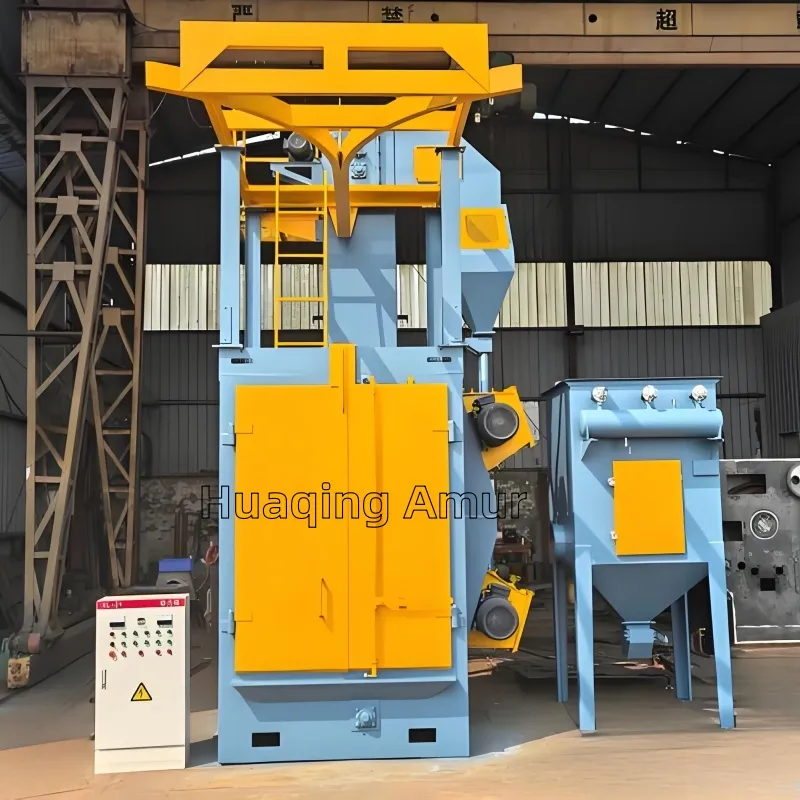

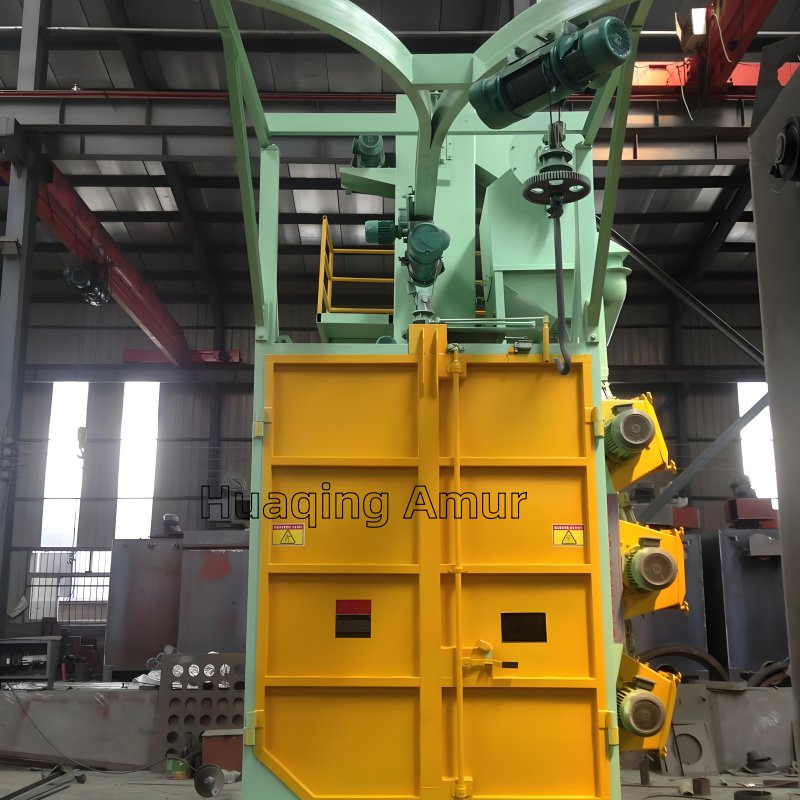

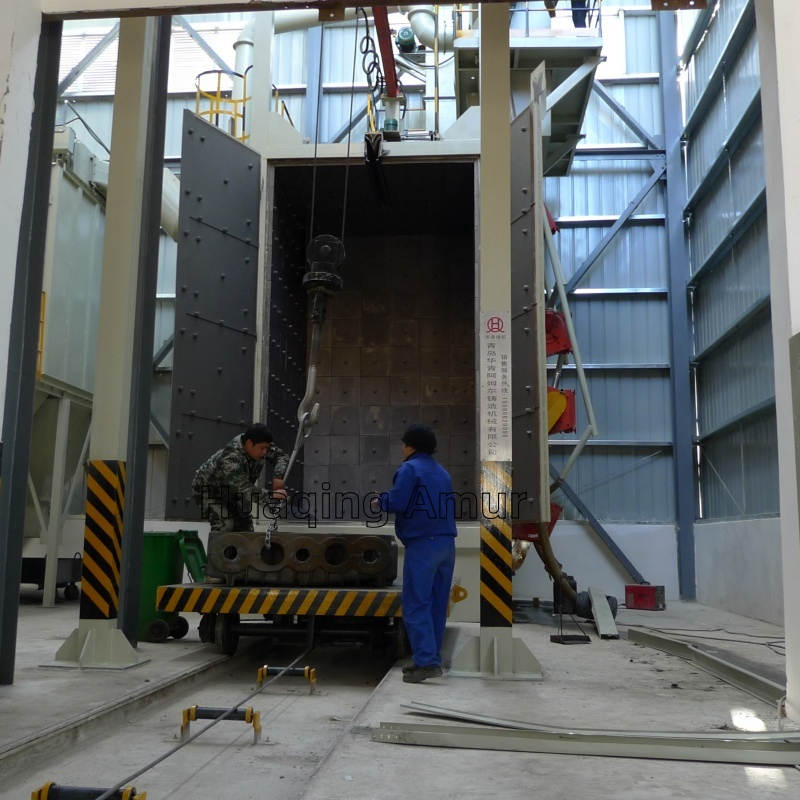

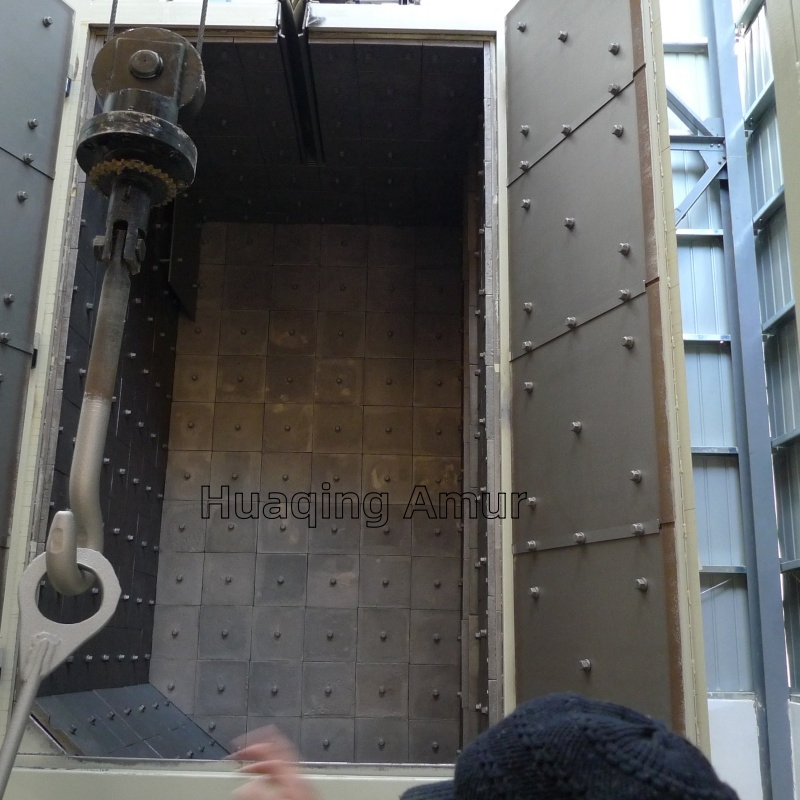

Hook Type Shot Blasting Machine

Hook-type shot blasting machines work with high-velocity abrasive impact to clean various workpieces, finding widespread application in casting, forging, machinery manufacturing, automotive components, steel structures, and other industries.

Key Advantages:
Strong workpiece adaptability for flexible handling of complex structures.
360° rotation ensures uniform shot coverage of surfaces and hard-to-reach areas.
Wide hook load capacity ranging from tens of kilograms to hundreds of tons.
Equipped with 2-8 shot blasting wheels for thorough cleaning without blind spots.

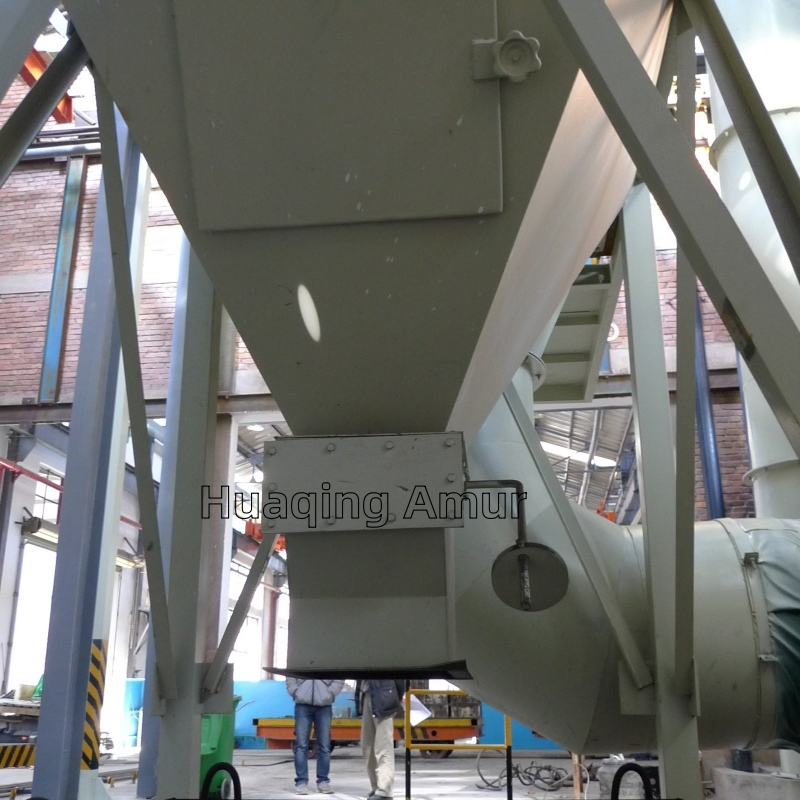

Automatic shot recycling system achieves over 95% utilization.
Comprehensive safety protection with multiple interlock devices.
Technical Parameters
Model Workpiece Size Weight Capacity Flow Rate Turbine Power Ventilation Outline Dimensions
Q376θ600*1100mm500kg2*120kg/min2*7.5kw5000m3/h4492*2850*3443mm
Q378θ800*1500mm1000kg2*200kg/min2*11kw8000m3/h4325*2660*5009mm
Q3710θ900*1600mm1000kg2*250kg/min2*15kw9000m3/h5047*3850*5156mm
Q3720θ1400*2300mm2000kg3*250kg/min3*15kw15000m3/h6110*3599*7842mm
Q3730θ1600*2300mm3000kg3*250kg/min3*15kw15000m3/h7085*4650*8562mm
Q3750θ1800*2500mm5000kg4*250kg/min4*15kw18000m3/h7062*5460*8652mm

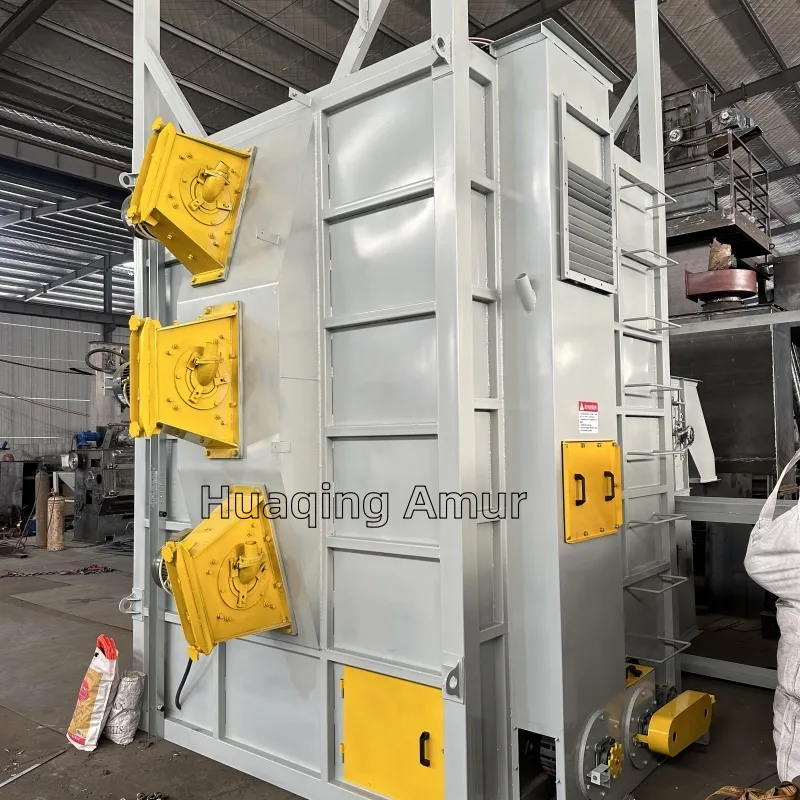

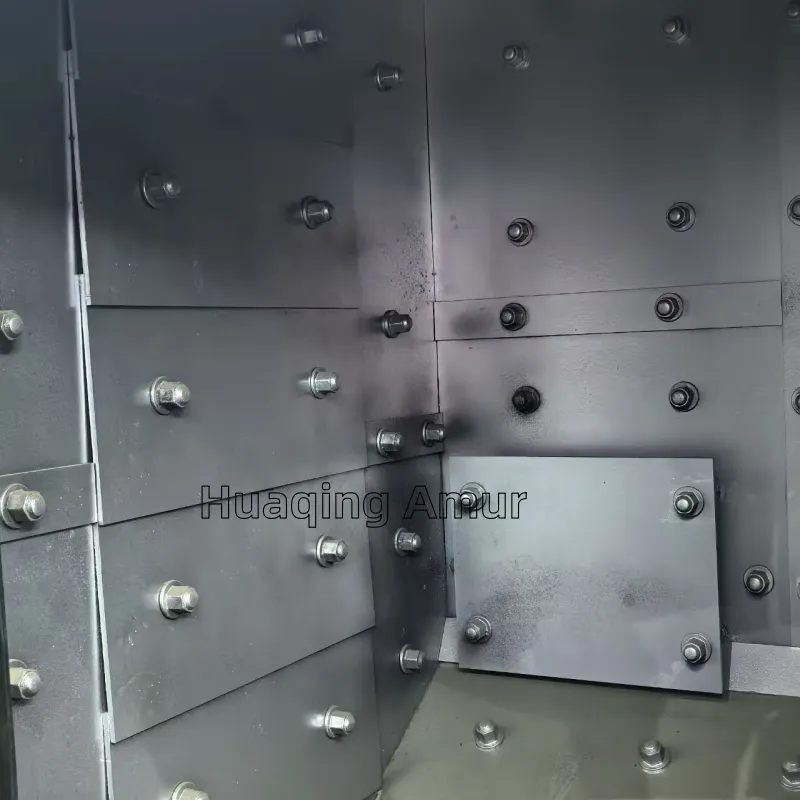

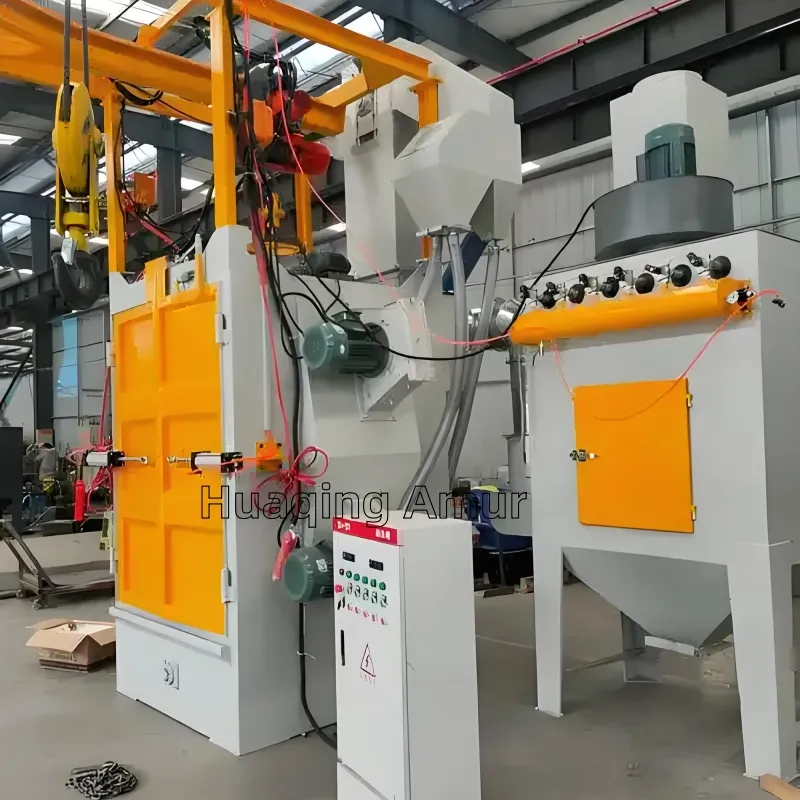

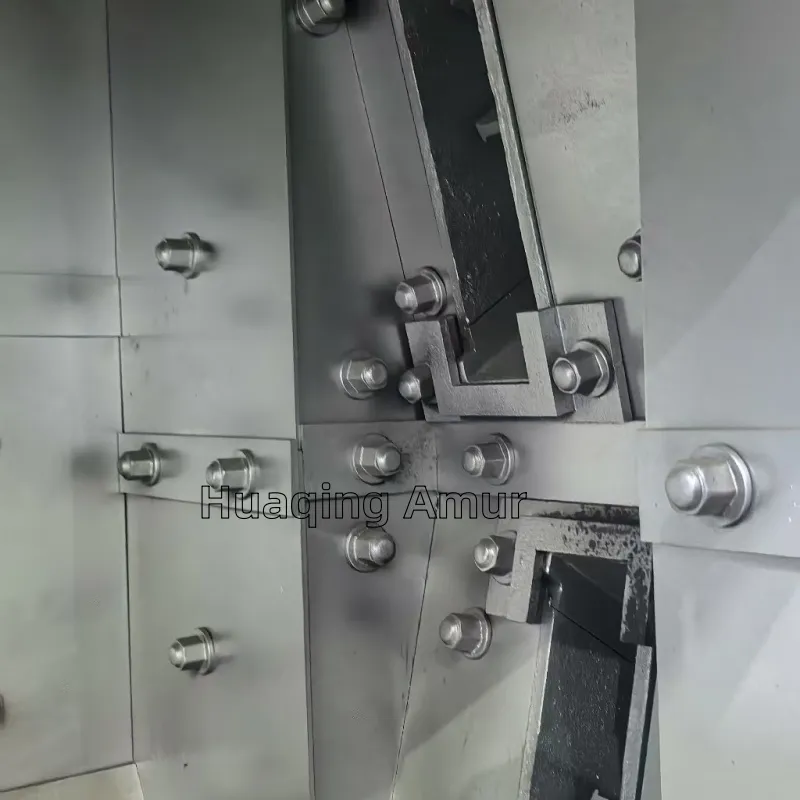

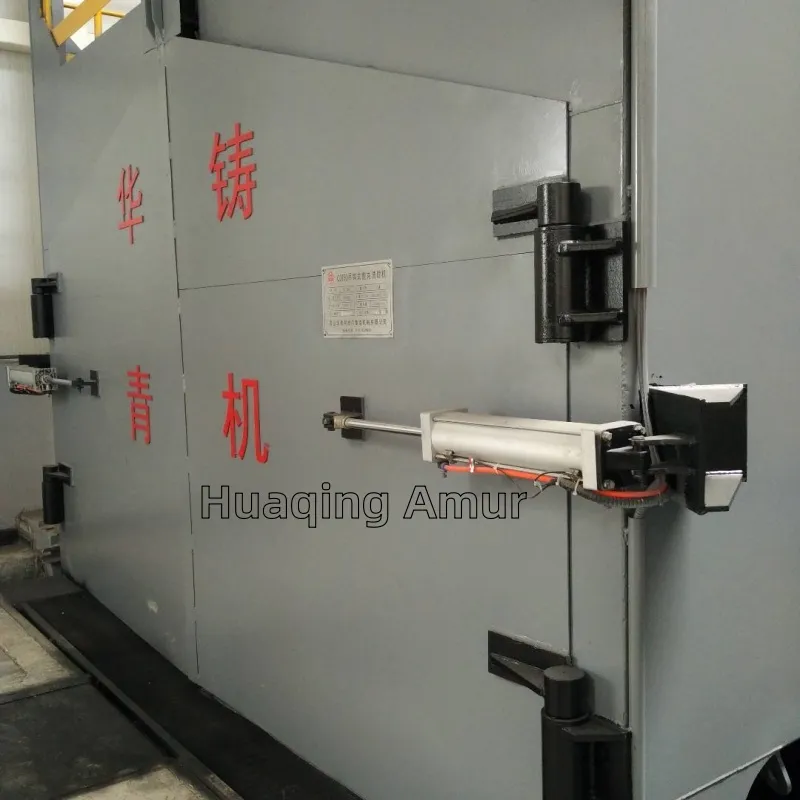

Machine Structure Detail
Professional Manufacturing

Our enterprise is a modern equipment manufacturing enterprise. For three decades, we have specialized in the research, development, and manufacturing of shot blasting machines, sand processing equipment, automatic molding equipment, sand reclamation lines and dust collection systems. We supply high-precision equipment to numerous large enterprises, with products exported to over 30 countries and regions including Russia, Southeast Asia, the Middle East, Europe, and the Americas.

Integrating advanced technology, our company possesses robust R&D and manufacturing capabilities. Upholding the principle that "quality is the lifeblood of an enterprise," we implement precise control throughout the entire process. All equipment undergoes 100% pre-delivery testing to ensure reliable operation.

Main Products Range
Factory Overview

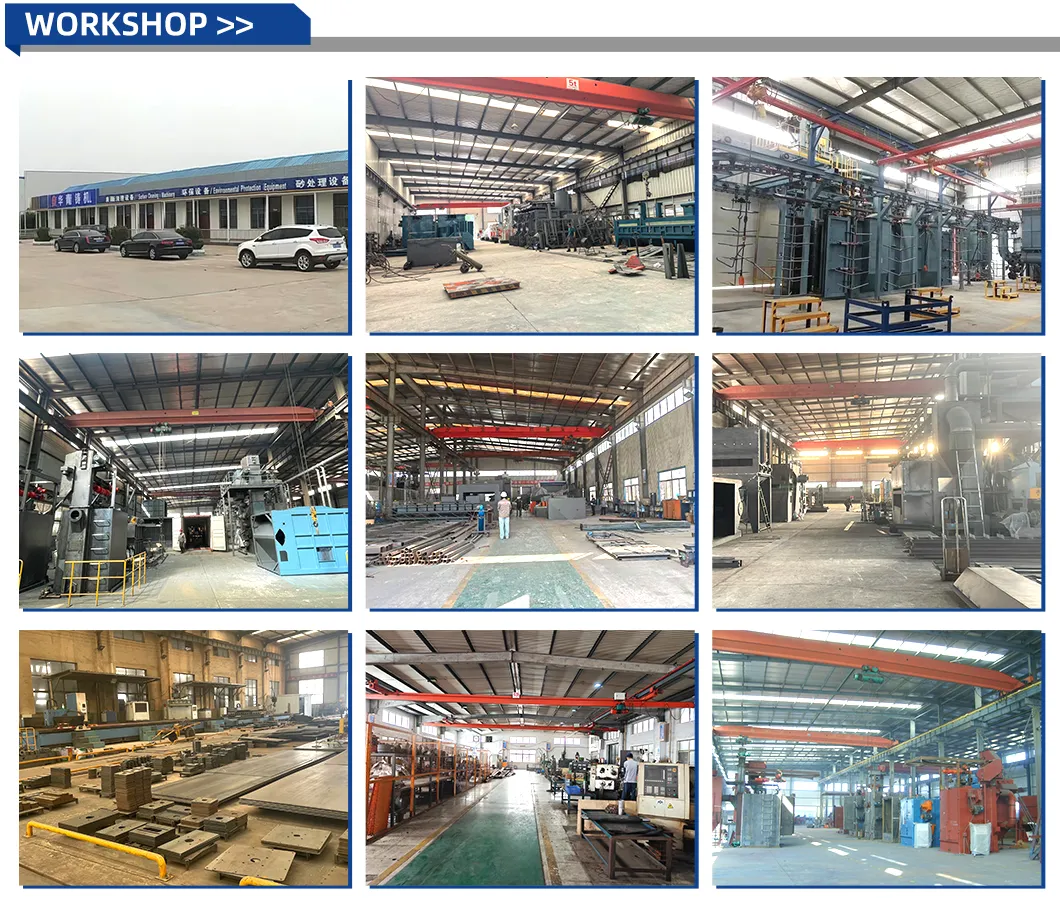

Workshop 1

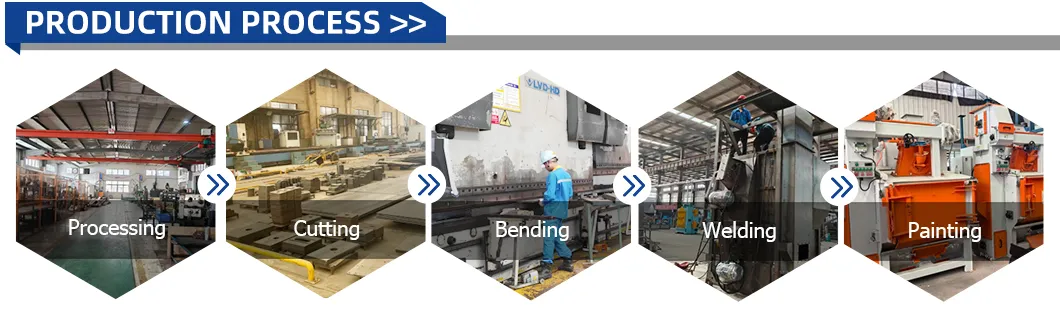

Workshop 2
Certifications & Customers
Quality Certifications
Exhibition
Global Customers
Packing & Delivery
Packaging Standard
Frequently Asked Questions
1. How to choose the right machine?
Please provide the maximum size, weight, and required productivity of your workpiece. Our engineers will design the best solution specifically for your needs.
2. What are the payment terms?
We accept T/T, L/C, Western Union, and PayPal. Typically, a 30% deposit is required via T/T, with the balance due before shipment.
3. How is the machine delivered?
Machines are generally shipped via 40'HQ containers or by truck depending on the destination and machine size.
4. How is the machine installed?
For large and complicated machines, we provide 1-on-1 installation assistance and on-site operation training by experienced engineers. Standard machines come with a comprehensive installation manual, photos, and videos.
5. What after-sales services do you provide?
We maintain a full stock of spare parts, provide regular after-sales follow-ups, and offer 24/7 online technical support.
6. Why choose our solutions?
With over 30 years of focus on surface cleaning technology, we provide professional, one-stop solutions with high-quality manufacturing standards.
