Basic Specifications
Operation Type
Fully automatic
Medium Material
Natural Fiber
Method
Dry Dust Collecting
Type
Electrostatic Precipitator

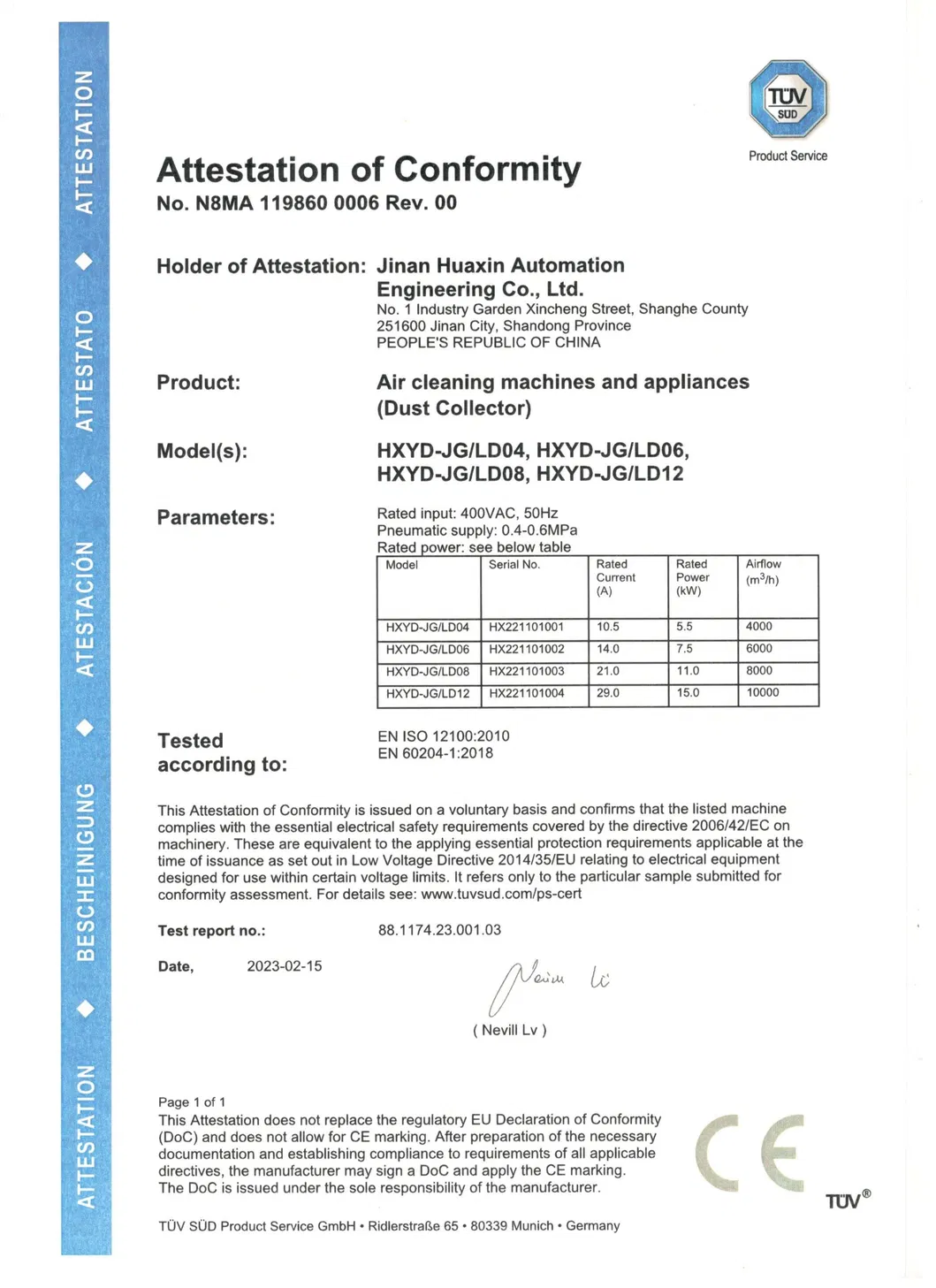

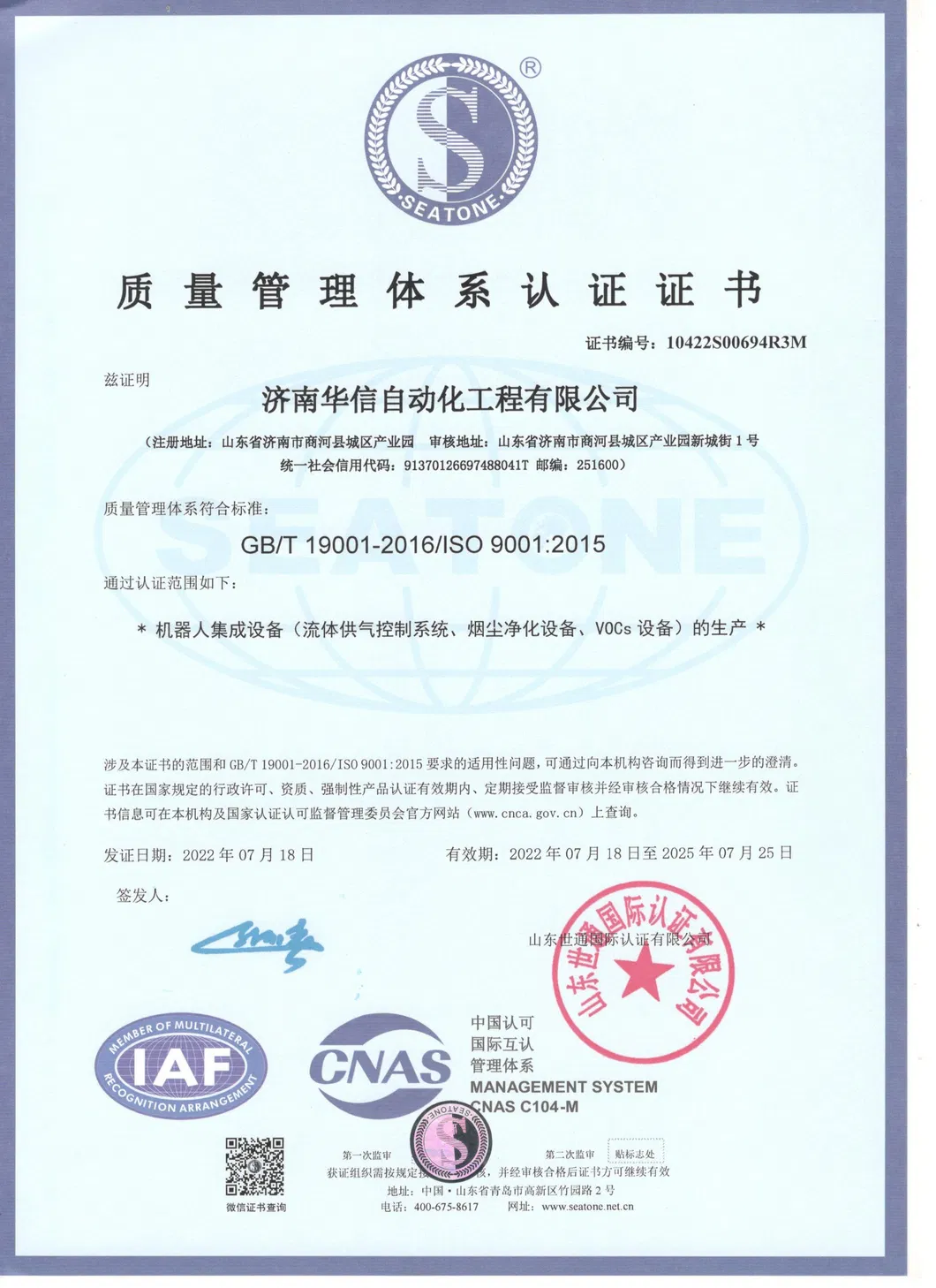

Authentication & Certification
Since 2006, the development in the industrial field has been highly recognized for independent research and development capabilities. Having served 3000+ customers and exported to more than 80 countries and regions, a strong reputation in industrial dust removal has been established.
Product Description

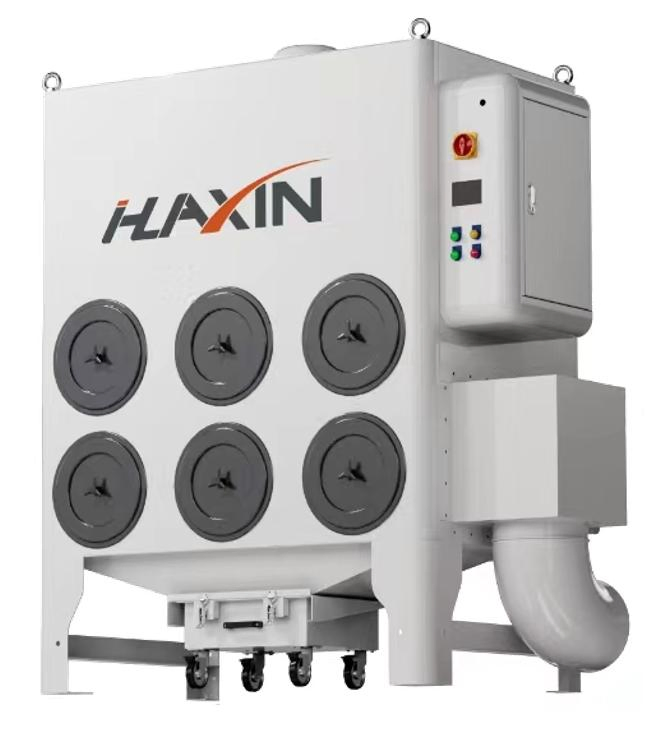

Product Name: Industrial A-type centrifugal fan mobile dust removal equipment

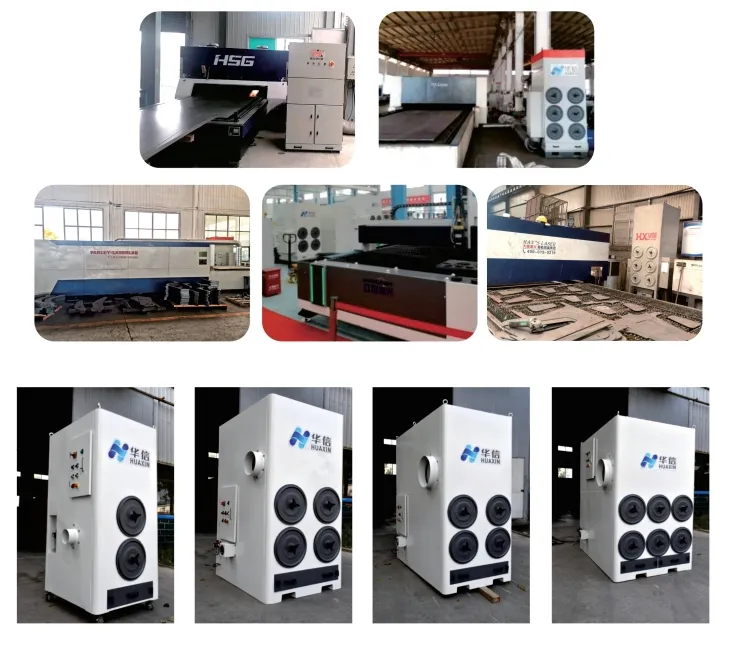

Specifically engineered for removing dust from laser cutting machines, welding positions, and grinding processes.
| Model |
Power |
Voltage |
Application |
Cleaning Way |
Filtration Area |
Efficiency |
| ZD35 |
2.2kw |
380V/50Hz |
Welding/Laser Position |
Auto Pulse Jet |
30m² Min |
99.9% |

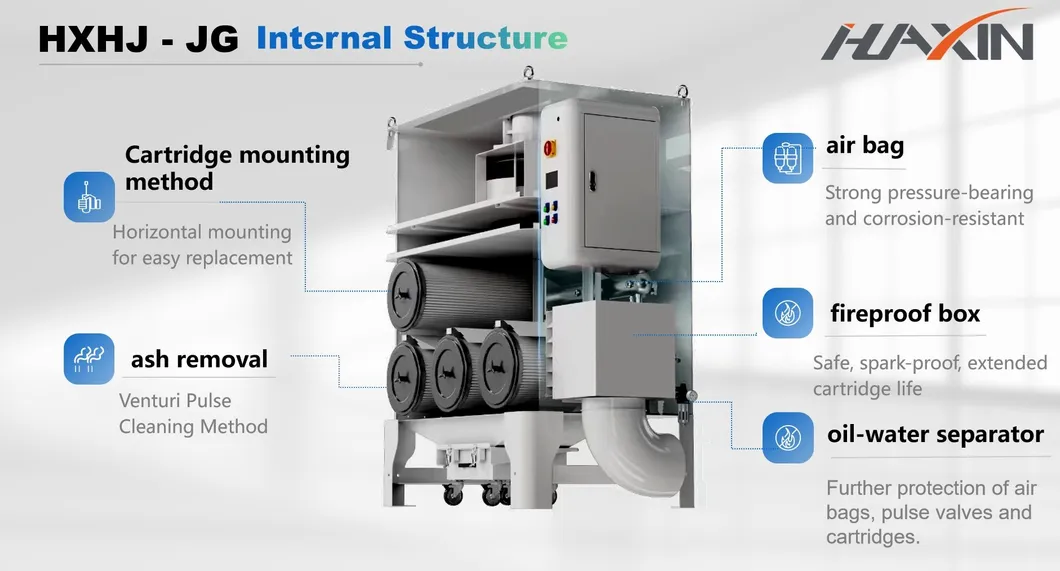

Operating Principle

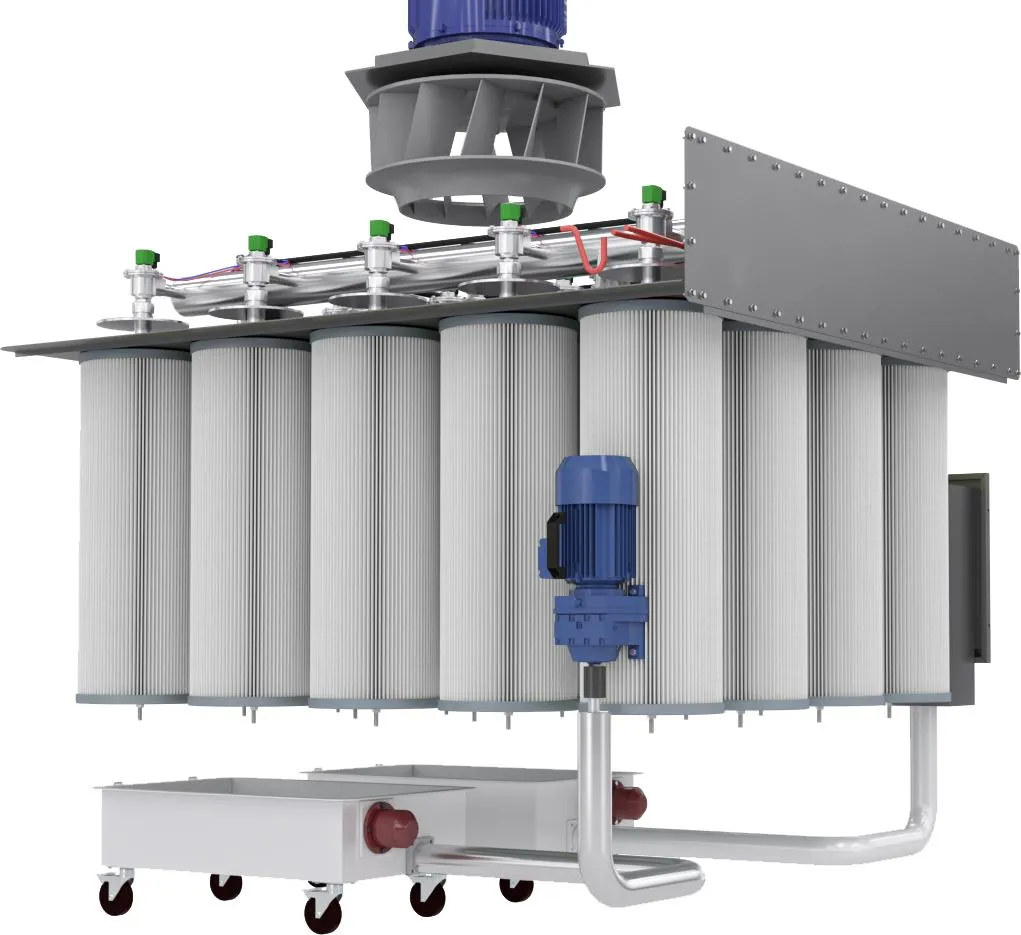

Equipped with a sophisticated three-layer filter system:
◈
Stage 1: Air passes through the pre-filter fire-proof net (flame arrester) to block sparks.
◈
Stage 2: Gravity separator removes larger particles, followed by the LongLife-H filter for medium/heavy particulate matter.
◈
Stage 3: Activated carbon filter neutralizes odors and ensures gas meets required emission standards.
Technical Parameters (ZD & ZS Series)
| Model |
Airflow (m³/h) |
Power (kW) |
Filter Area (m²) |
Noise dB(A) |
Size (mm) |
| HXYD-ZD18 | 1800 | 1.1 | 15 | 68 | 650*670*1260 |
| HXYD-ZD22 | 2200 | 1.5 | 20 | 70 | 650*670*1260 |
| HXYD-ZD30 | 3000 | 2.2 | 20 | 72 | 650*670*1260 |
| HXYD-ZD35 | 3500 | 3.0 | 25 | 75 | 650*670*1260 |
| HXYD-ZD40 | 4000 | 4.0 | 30 | 78 | 650*670*1300 |
| HXYD-ZD50 | 5000 | 5.5 | 40 | 85 | 850*936*1700 |
* Note: ZD models feature 1 suction arm; ZS models feature 2 suction arms (length 2.2m-3m).
Key Characteristics
✔Overload prevention system to protect the motor.
✔Pulsing back-flushing automatic dust-removal for stable air flow.

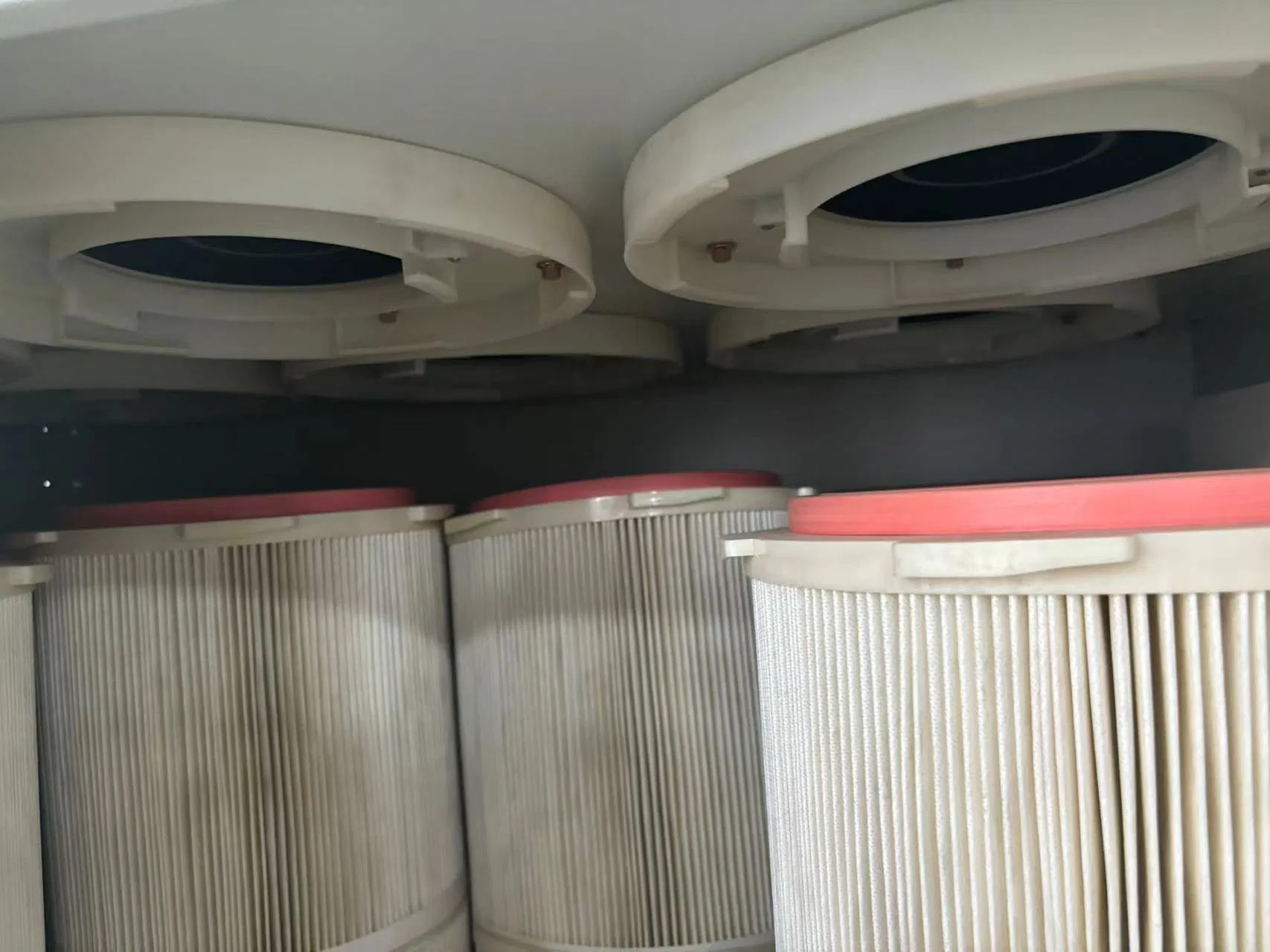

✔PTFE membrane filter cartridge imported from USA, capable of filtering 0.3μm particles.
✔360-degree rotating suction arm for precise smoke collection.
✔All-direction caster wheels for flexible mobility.
✔Integrated silencer cotton to minimize operational noise.
Frequently Asked Questions
Q1: What is the filtration efficiency of this equipment?
A1: The system uses high-quality filter cartridges (PTFE membrane) that achieve a filtration efficiency of up to 99.99% for particles as small as 0.3μm.
Q2: Does the machine handle sparks from welding or cutting?
A2: Yes, the unit is equipped with a flame arrester and a three-layer filtration system specifically designed to block sparks and prevent fire hazards.

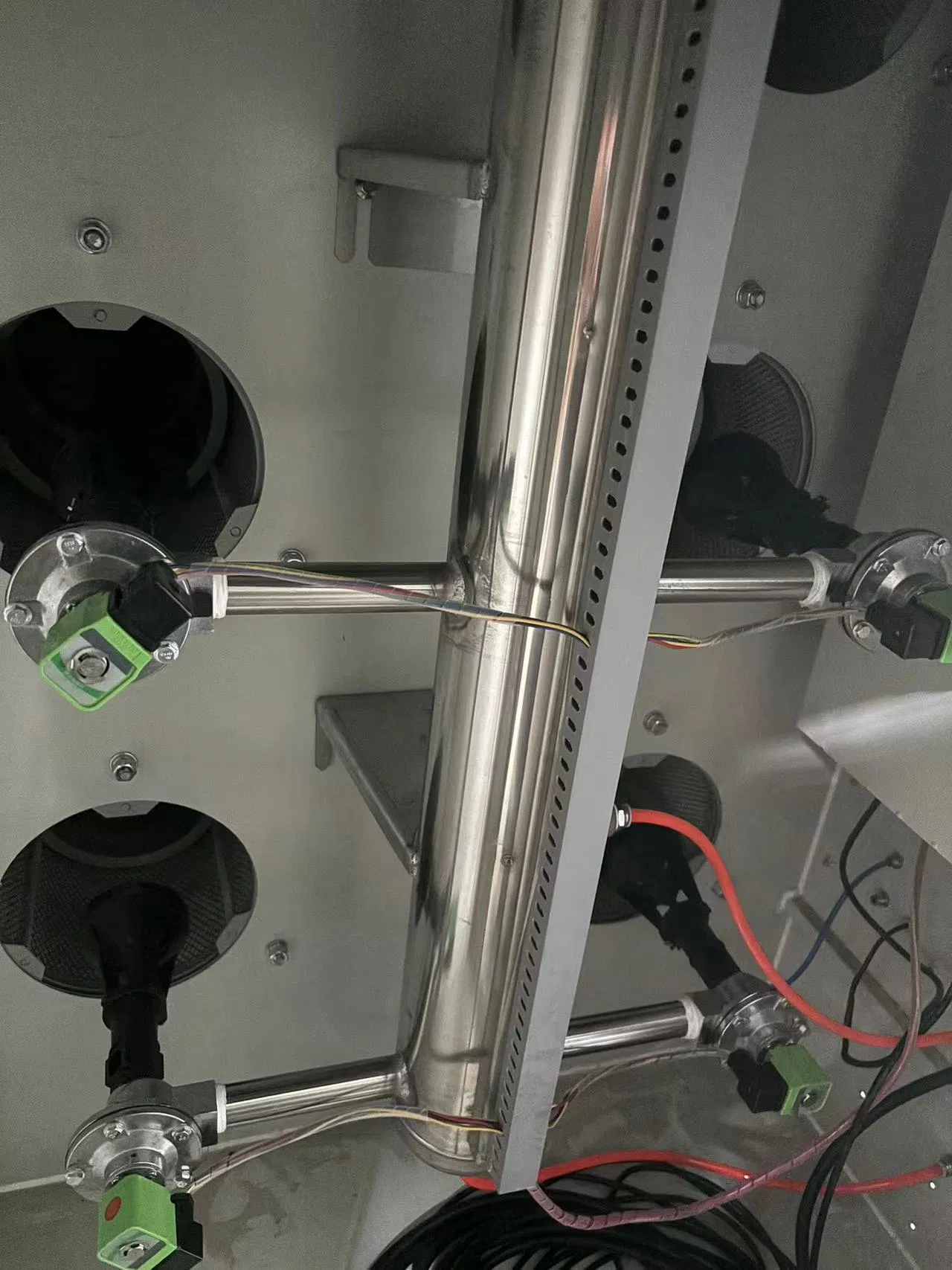

Q3: How does the automatic cleaning system work?
A3: It features a pulsing back-flushing automatic dust-removal system. The filter core rotates and flushes using high-pressure air to keep the surface clean and maintain stable airflow.
Q4: Is the suction arm flexible?
A4: Yes, it is equipped with a 360-degree rotating all-direction suction arm, allowing you to capture fumes directly from the source.
Q5: Can this unit be moved easily within the factory?
A5: Absolutely. The facility is attached with all-direction caster wheels, making it freely movable and very easy to position where needed.
Q6: What voltage requirements are available?
A6: Standard voltage is 380V/50Hz/3P, but we also support customization for 415V/50Hz/3P and 220V/60Hz/3P depending on your regional needs.
